AGIE - Agiecut Classic 3SES-EDM-AGI-2002-00001
Do you have further questions? Contact us.
Sergi Guardia
+49 162 4027635
s.guardia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- AGIE Agiecut Classic 3S Erosion Machine

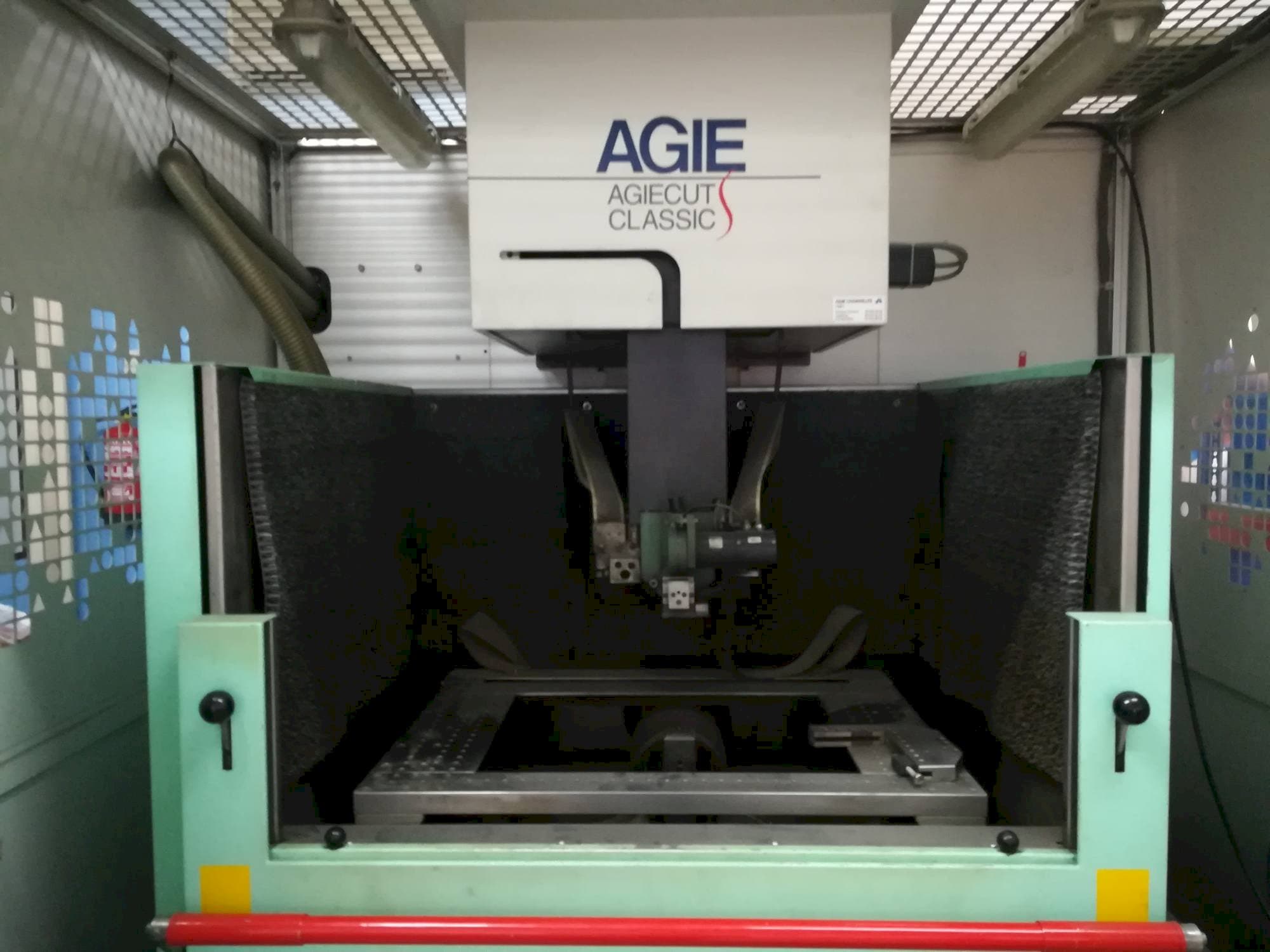

This AGIE Agiecut Classic 3S Erosion Machine was manufactured in the year 2002 in Switzerland. Equipped with an Agievision CNC Control unit, this machine presents perfectly good conditions, as it has been used very little.
Overview
- brand: AGIE
- year: 2002
- MODEL: Agiecut Classic 3S
- application type: EDM
- Location: Spain
- machine type: Wire EDM Machine
- availability: Sold
- control unit brand: AGIE
Technical Information - AGIE Agiecut Classic 3S
General Data
- Measurements width: 1940 mm
- Measurements depth: 2300 mm
- Measurements height: 2200 mm
- Machine weight: 3900 kg
Control Unit
- Model: Agievision
- Brand: AGIE
Main drive
- Wire diameter: 0.15 - 0.33 mm
Movement
- X-AXIS Movement: 500 mm
- Y-AXIS Movement: 350 mm
- Z-AXIS Movement: 256 mm
- U-Axis Movement: +- 70 mm
- W-Axis Movement: +- 70 mm
Workpiece
- Workpiece weight: 400 kg
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
