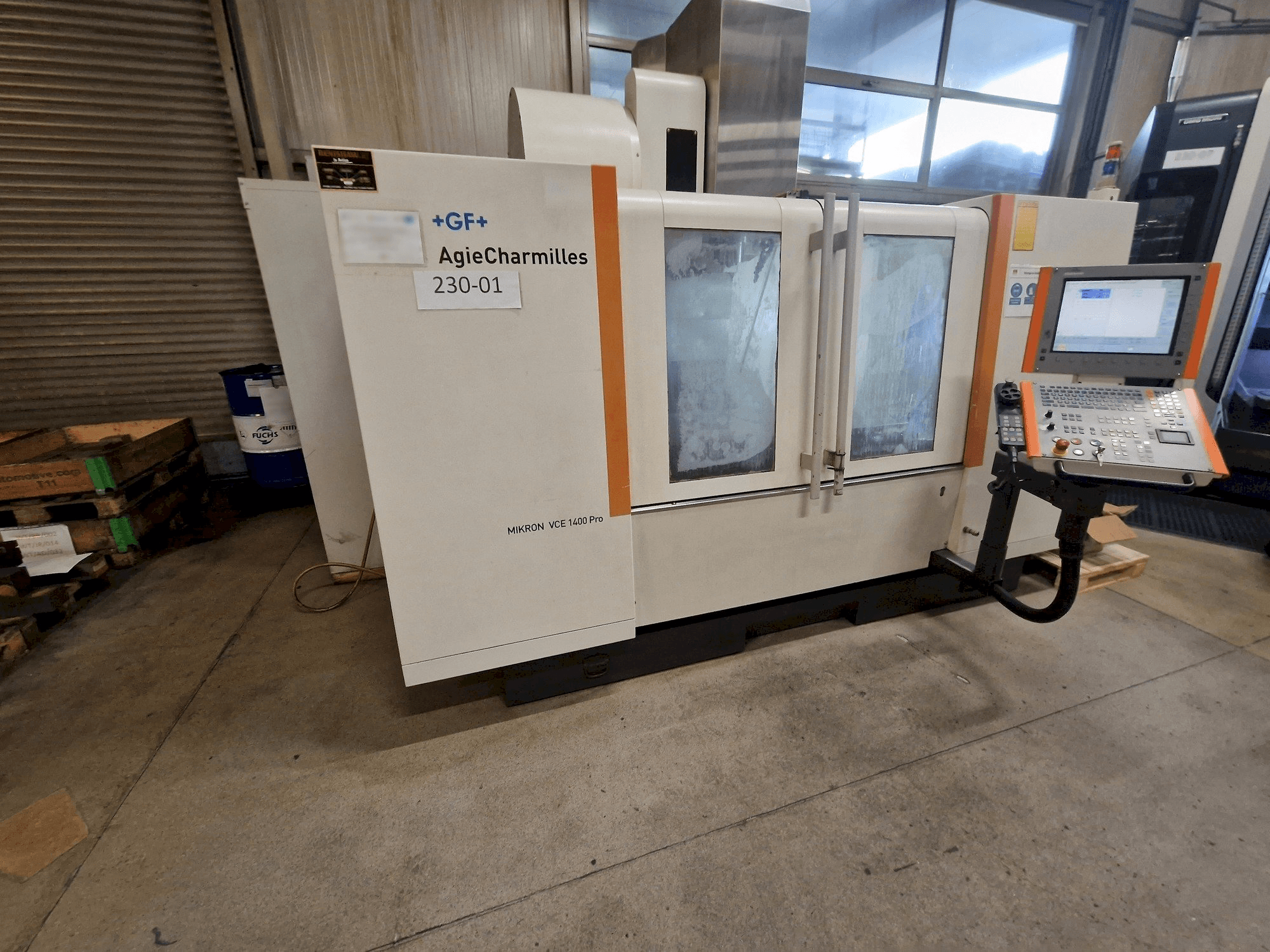

AgieCharmilles MIKRON VCE 1400 PRO Vertical machining center

Show in original language

This AgieCharmilles MIKRON VCE 1400 PRO Vertical machining center was manufactured in the year 2009 in Switzerland and has 30978 hours, of which 13309 are spindle hours. It is equipped with Heidenhain iTNC 530 control unit and has 3 axis. The machine has a spindle speed of 100 - 10000 rpm, and includes a RENISHAW 3D IR Measuring Probe MP12, Tool measuring probe 3D TS27, and a Set of tool holders as additional equipment, is in very good condition and well maintained.

Overview

brand: AgieCharmilles
year: 2009
MODEL: MIKRON VCE 1400 PRO
production hours: 30978
application type: Milling
Location: Poland
machine type: Vertical Machining Centre
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - AgieCharmilles MIKRON VCE 1400 PRO

General Data

Measurements width: 3420 mm
Measurements depth: 3250 MM
Measurements height: 2790 mm
Machine weight: 8700 kg

Control Unit

Model: iTNC 530
Brand: HEIDENHAIN

Main drive

Spindle speed range: 100 - 10000 1/MIN
Spindle motor power: 12/18 kW
Tool taper: BT 40
Number of axis: 3

Movement

X-AXIS Movement: 1400 mm
X-AXIS Rapid traverse: 24 m/min
Y-AXIS Movement: 650 mm
Y-AXIS Rapid traverse: 24 m/min
Z-AXIS Movement: 675 mm
Z-AXIS Rapid traverse: 20 m/min

Table

Outer length: 1400 mm
Outer width: 620 mm

Tools

Slots in storage: 24
Max weight: 6 kg
Max tool length: 305 mm

Media

Main electronic connection: 3x400V / 50-60 Hz

Additional equipment

- RENISHAW 3D IR Measuring Probe MP12
- Tool measuring probe 3D TS27
- Set of tool holders

Additional Information

Machine Benefits

Qualitative Machine Benefits:
- - The machine is in very good working condition, well maintained, ready for tests.
- - The machine spindle was fully refurbished and has been in operation for around 2000 hours since then.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
