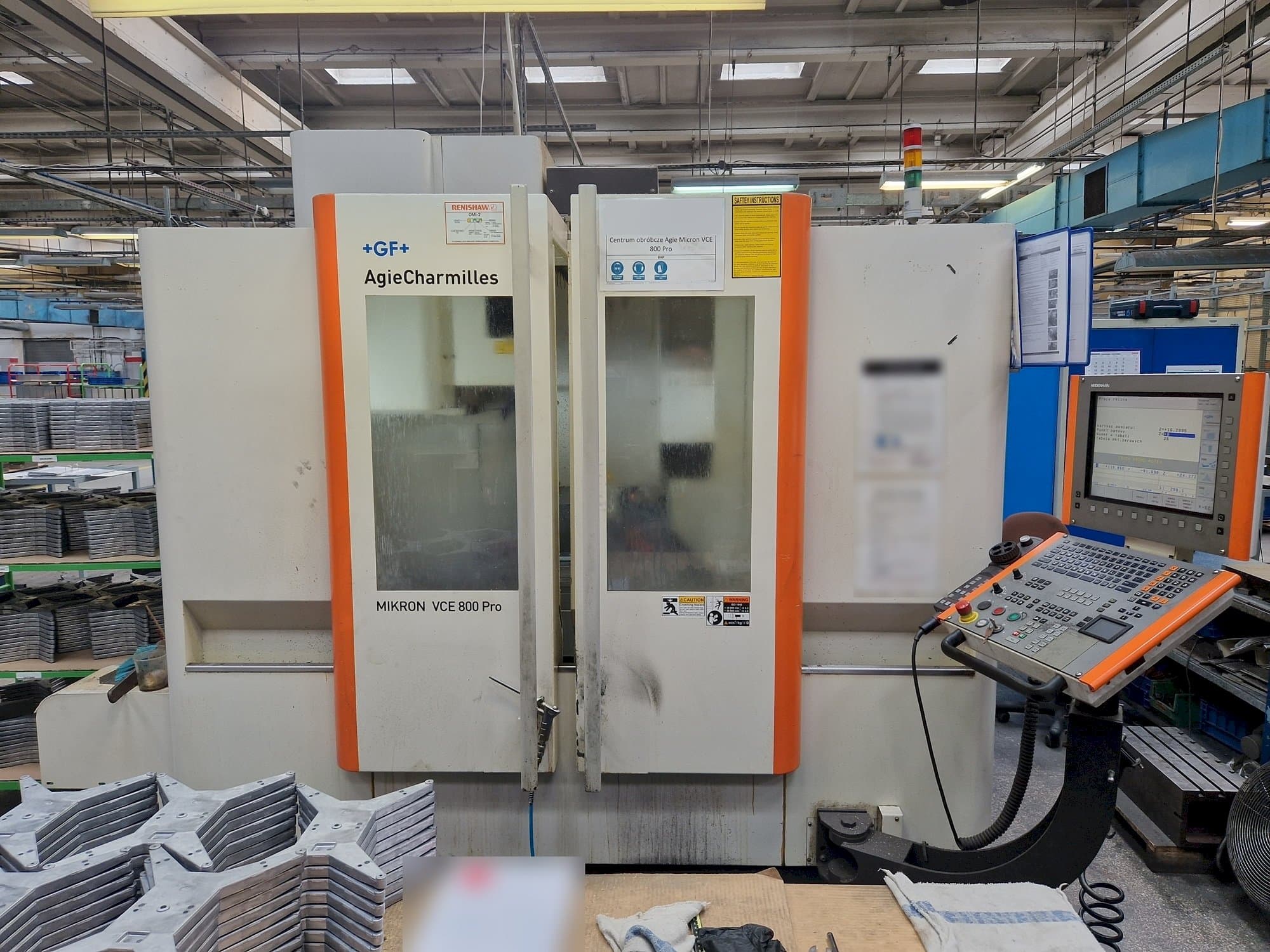

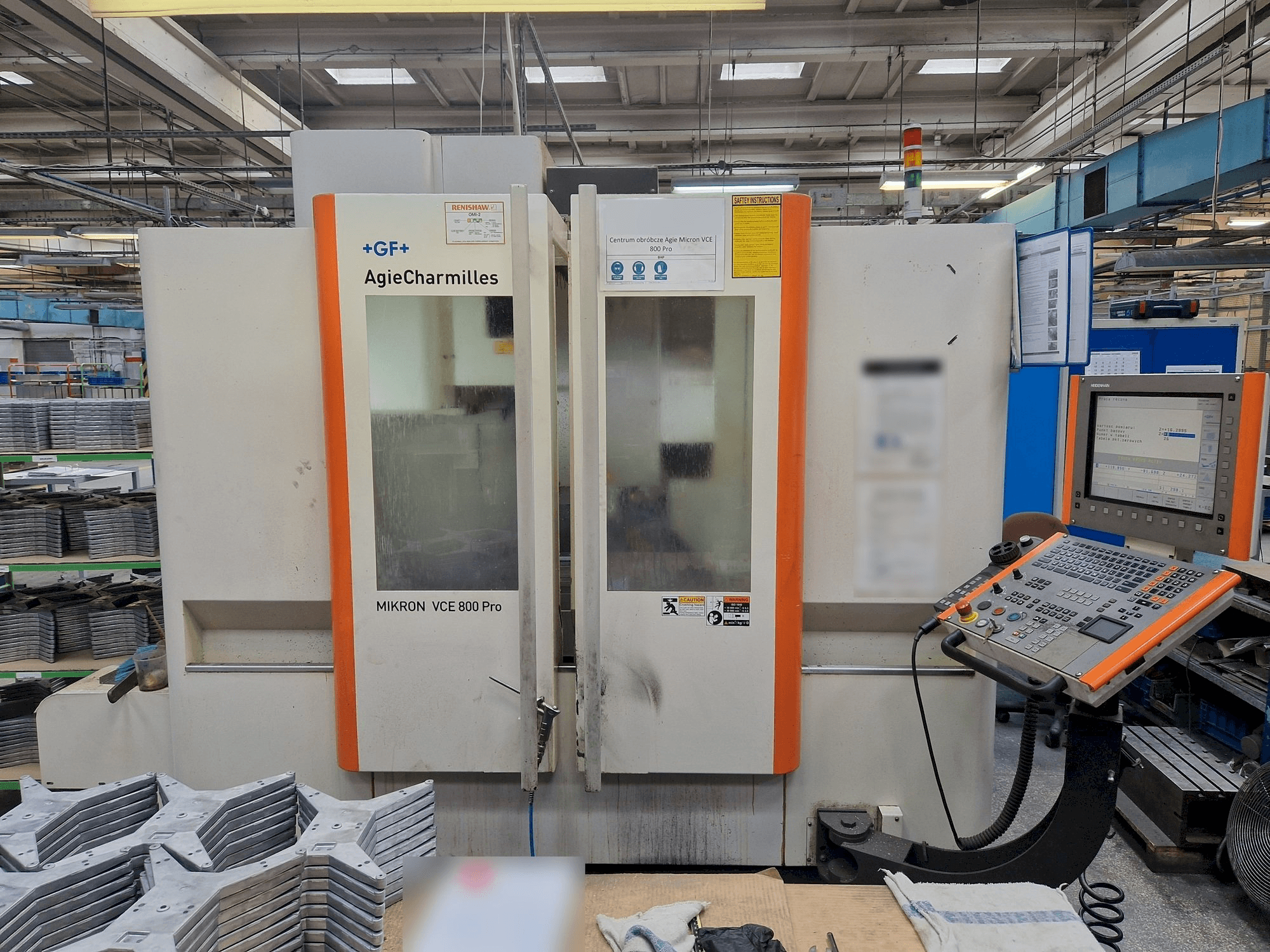

Front view of AgieCharmilles MIKRON VCE 800 PRO machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

AgieCharmilles MIKRON VCE 800 PRO

Photo Gallery

AgieCharmilles - MIKRON VCE 800 PROPL-MIL-AGI-2013-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
AgieCharmilles MIKRON VCE 800 PRO Vertical Machining center

Show in original language

This AgieCharmilles MIKRON VCE 800 PRO Vertical Machining center was manufactured in the year 2013 in Switzerland and has 31000 power on hours, of which 9600 are spindle hours. It is equipped with a Heidenhain iTNC530 control unit and has 3 axis. The machine has a spindle speed of 16000 rpm, is in very good condition and well maintained.

Overview

brand: AgieCharmilles
year: 2013
MODEL: MIKRON VCE 800 PRO
production hours: 31000
application type: Milling
Location: Poland
machine type: Vertical Machining Centre
control unit brand: HEIDENHAIN

Technical Information - AgieCharmilles MIKRON VCE 800 PRO

General Data

Measurements width: 2240 mm
Measurements depth: 3338 mm
Measurements height: 2803 mm
Machine weight: 5000 kg

Control Unit

Model: iTNC530
Brand: HEIDENHAIN

Main drive

Spindle speed range: 16000 rpm 1/MIN
Number of axis: 3

Movement

X-AXIS Movement: 800 mm
Y-AXIS Movement: 500 mm
Z-AXIS Movement: 540 mm

Workpiece

Workpiece weight: 1100 kg

Table

Outer length: 910 mm
Outer width: 500 mm

Media

Main electronic connection: 3 x 400V / 50/60 Hz

Additional equipment

- Readiness to be equipped with 4th axis
- Readiness to connect cooling through the spindle
- accessories

Additional Information

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
