AIDA NC1-200L

Photo Gallery

AIDA - NC1-200LCZ-STA-AID-1990-00002

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

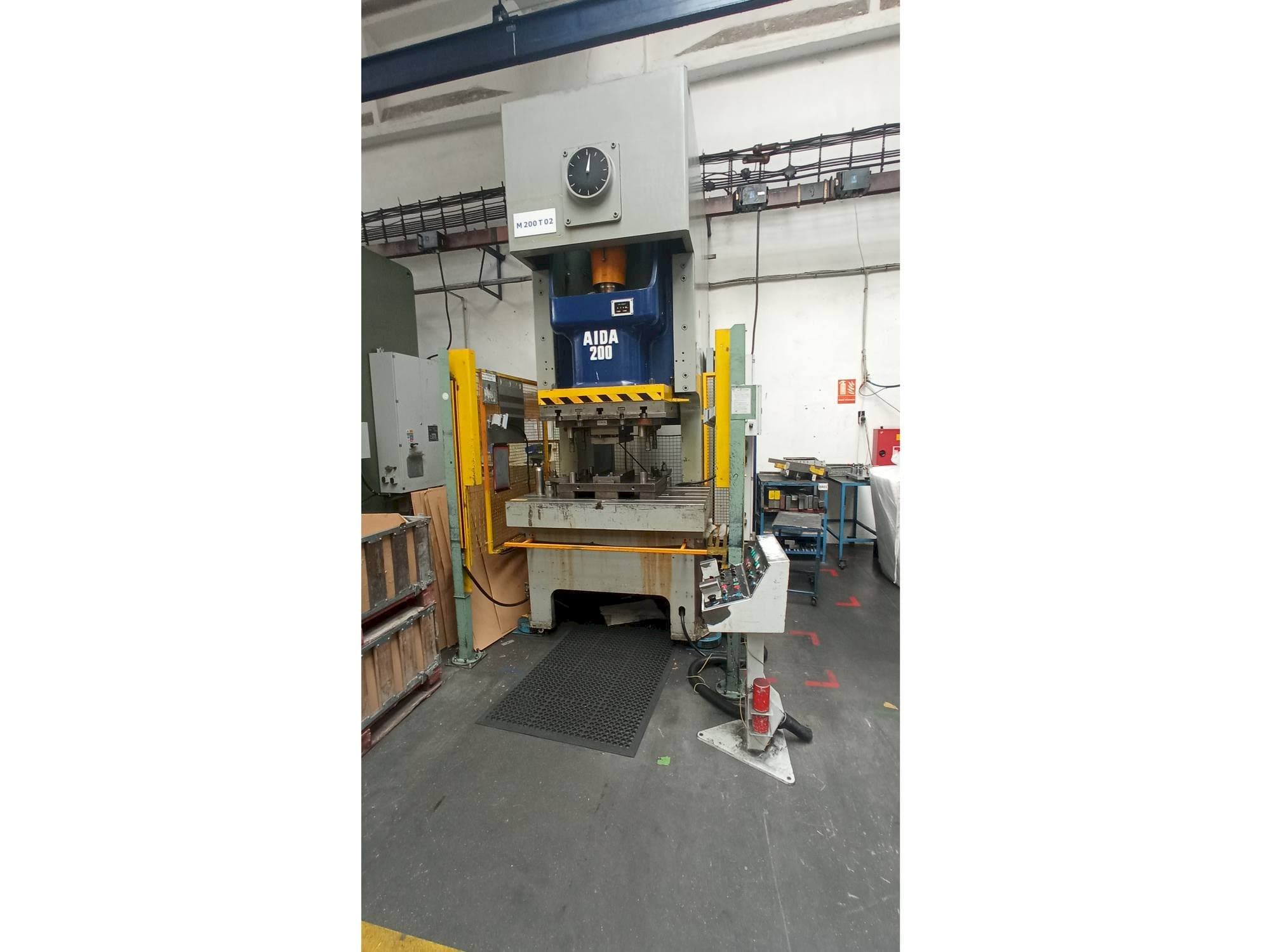

AIDA NC1-200L Stamping machine

Show in original language

This AIDA NC1-200L Stamping machine was made in the year 1990 in Japan. The machine has a stamping force of 2000 kN and a stroke of 250 mm. It has been regularly maintained and is in good condition.

Overview

brand: AIDA
year: 1990
MODEL: NC1-200L
application type: Other Sheet Metal Machinery
Location: Czech Republic
machine type: Sheet Metal Machine

Technical Information - AIDA NC1-200L

General Data

Measurements width: 1670 mm
Measurements depth: 2430 mm
Measurements height: 3730 mm

Main drive

Stamping force: 2000 kn
Stroke: 250 mm

Table

Outer length: 1390 mm
Outer width: 840 mm

Additional Information

Machine Benefits

Qualitative Machine Benefits

Regularly maintained, good condition

Technical Machine Benefits

Strokes per minute 25-45 spm
Die height 410 mm
Slide adjustment 110 mm
Slide area 880 x 650 mm
Main motor 15 kw
Shut die height max/min 370/260 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
