AMADA ASTRO 100NT Bending machine

Show in original language

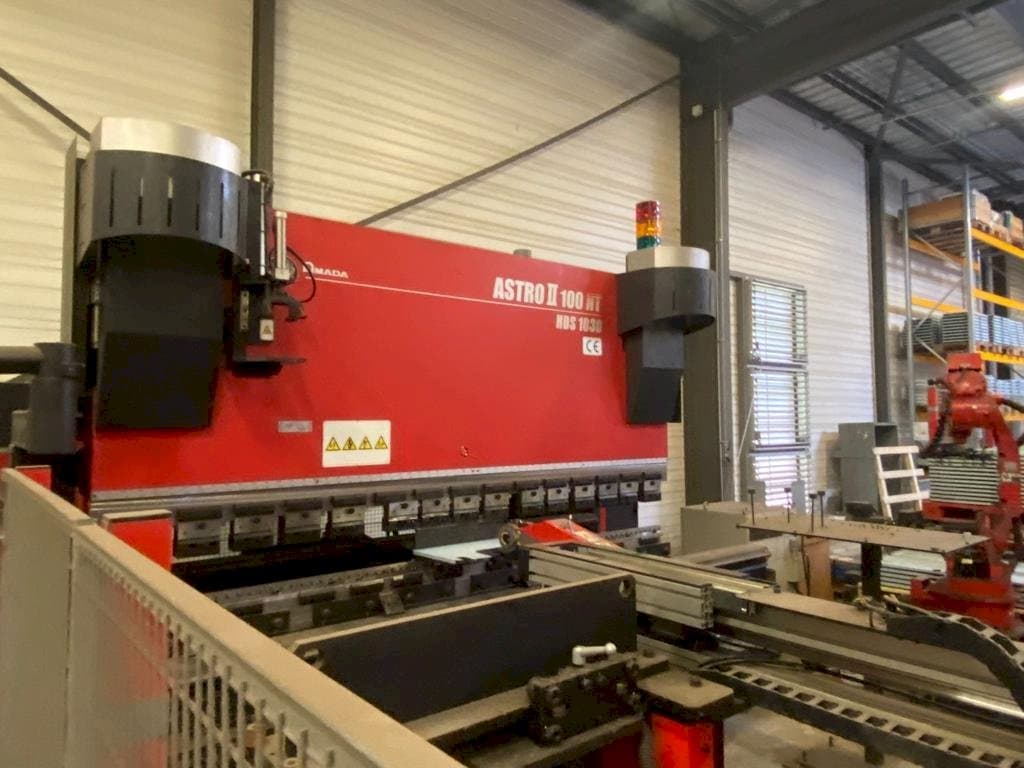

This AMADA ASTRO 100NT Bending machine was manufactured in the year 2007 in Japan. It is equipped with an AMADA AMNC II control unit and has 5 axis. The machine has a pressing force of 1000 kN.

Overview

brand: AMADA
year: 2007
MODEL: ASTRO 100NT
application type: Bending
Location: France
machine type: Press Brake
availability: Sold
control unit brand: AMADA

Technical Information - AMADA ASTRO 100NT

General Data

Measurements width: 8035 mm
Measurements depth: 4455 mm
Measurements height: 2971 mm

Control Unit

Model: AMNC II
Brand: AMADA

Main drive

Pressing force: 1000 kN
Number of axis: 5

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Folding length capacity 3 meters
- - 415mm gooseneck
- - Distance between uprights: 2,700mm
- - Versatile split tooling different part sorts
- - With magazine of 5 pallets of tools
- - Minimum thickness: 0. 6mm, maximum thickness: 2. 5mm
- - Maximum room dimensions: blanks 800x1000 mm – profiles 300x1800 mm
- - Dimension mini pieces: 150 x 150 mm
- - Load capacity 20kg
- - Program sequence: 20 max
Qualitative Machine Benefits:
- - Gripping system: pliers or suction cup
- - Astro mp20 loading/unloading robot
- - Gripping system: suction cups
- - Loading capacity: horizontal 450 mm – vertical 120 pieces
- - Thickness control: detector
- - Detection capacity: from 0. 3 to 4. 4 mm
- - Press brake/robot control: amnc ii-pc

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
