AMADA LC 2415 α3 Laser Cutting Machine

Show in original language

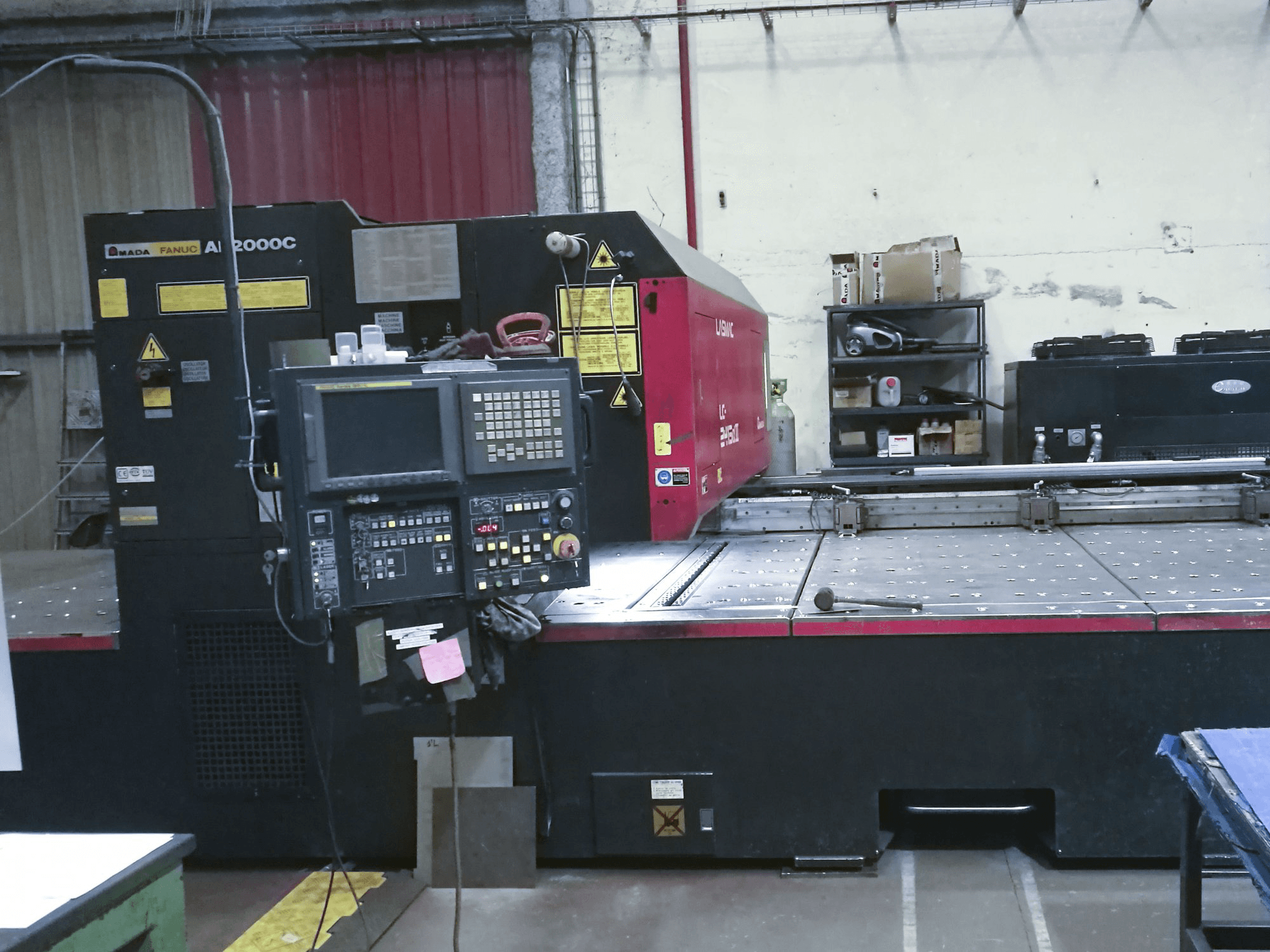

This AMADA LC 2415 α3 Laser Cutting Machine was built 1999 in Japan and has a working record of 43147 production hours. Equipped with a FANUC Series 160 i-L Control unit and a FANUC C-2000C Laser, this model stands in perfect conditions as it received frequent maintenance by AMADA. In 2018, the resonator tubes as well as all internal optics were replaced.

Overview

brand: AMADA
year: 1999
MODEL: LC 2415 α3
production hours: 43147
application type: Cutting
Location: Spain
machine type: CO2 Laser Cutting Machine
availability: Sold
control unit brand: FANUC

Technical Information - AMADA LC 2415 α3

General Data

Measurements width: 2500 mm
Measurements depth: 5700 mm
Measurements height: 2275 mm
Machine weight: 6500 kg

Control Unit

Model: Series 160 i-L
Brand: FANUC

Main drive

Laserpower: 2 kW
Laser type: CO2
Laser brand: FANUC C-2000C

Movement

X-AXIS Movement: 2520 mm
X-AXIS Rapid traverse: 80 m/min
Y-AXIS Movement: 1550 mm
Y-AXIS Rapid traverse: 80 m/min
Z-AXIS Movement: 300 mm
Z-AXIS Rapid traverse: 60 m/min

Workpiece

Workpiece x: 5140 mm
Workpiece y: 1550 mm
Workpiece weight: 330 kg

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
