AMADA OCTO-334

Photo Gallery

AMADA - OCTO-334TR-PUN-AMA-1984-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Sheet Metal Machinery

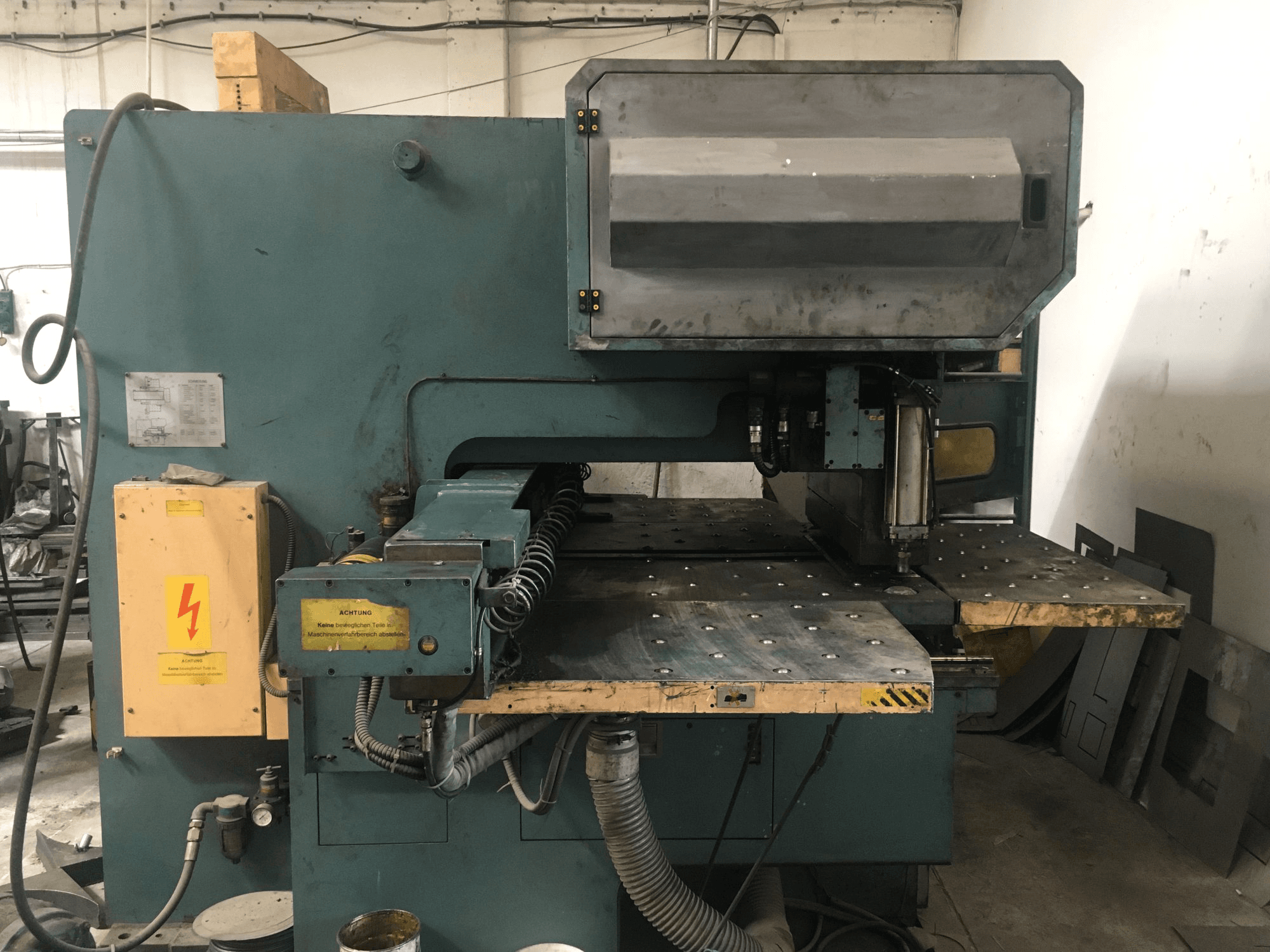

AMADA OCTO-334 Turret Punching Machine

Show in original language

This AMADA OCTO-334 Turret Punching Machine from 1984 was manufactured in Japan and is equipped with a FANUC System 6M Control unit. During the past, this machine has worked with steel sheets between 4-6 mm of thickness producing components for domestic metal products. A wide range of additional tools is included.

Overview

brand: AMADA
year: 1984
MODEL: OCTO-334
application type: Punching
Location: Turkey
machine type: Turret Punch Press
control unit brand: FANUC

Technical Information - AMADA OCTO-334

General Data

Measurements width: 2800 mm
Measurements depth: 3050 mm
Measurements height: 2300 mm
Machine weight: 9800 kg

Control Unit

Model: System 6M
Brand: FANUC

Main drive

Punching force: 300 kN
Maximum sheet thickness: 6.35 mm

Workpiece

Workpiece x: 750 mm
Workpiece y: 1000 mm

Max Material thickness

Steel: 6.35 mm
Stainless steel: 4 mm

Media

Power consumption: 12 kVA

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
