➤ Used AMADA Vipros 2510 King | Turret Punching Machine

Show in original language

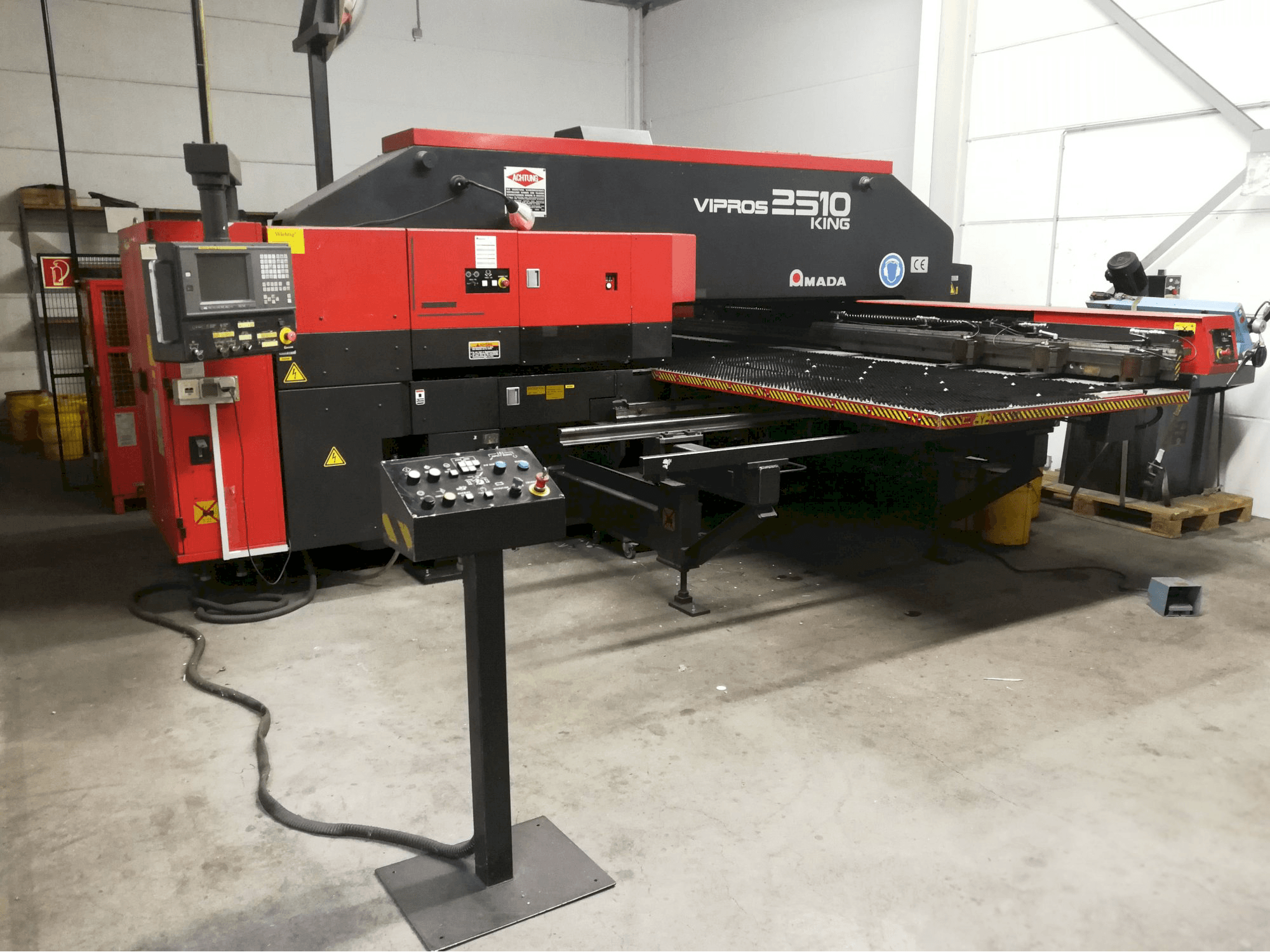

This AMADA Vipros 2510 King Turret Punching Machine was manufactured in 2000 in Japan and has a working record of approximately 43200 production hours ever since. Operated through a FANUC Series 18- P control unit, this large format machine is equipped with 3 clamps. It stands out due to its 40 feet open top container and the fact that its spare parts are easily available. In the past, this AMADA punching machine has handled mostly stainless steel. Some additional equipment is included such as a chiller and various tools.

Overview

brand: AMADA
year: 2000
MODEL: Vipros 2510 King
production hours: 43200
application type: Punching
Location: Germany
machine type: CNC Punch Press
availability: Sold
control unit brand: FANUC

Technical Information - AMADA Vipros 2510 King

General Data

Measurements width: 5330 mm
Measurements depth: 5123 mm
Measurements height: 2160 mm
Machine weight: 11000 kg

Control Unit

Model: Series 18- P
CNC main language: English
CNC language customizable: Yes
Brand: FANUC

Main drive

Punching force: 196 kN
Maximum sheet thickness: 3 mm

Movement

X-AXIS Movement: 2500 mm
Y-AXIS Movement: 1270 mm

Tools

Number of index: 2
Number of stations: 31

Max Material thickness

Steel: 3 mm
Stainless steel: 2 mm
Aluminum: 2 mm

Media

Main electronic connection: 400 V
Power consumption: 24 kVA

Additional equipment

- Tools
- Chiller

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
