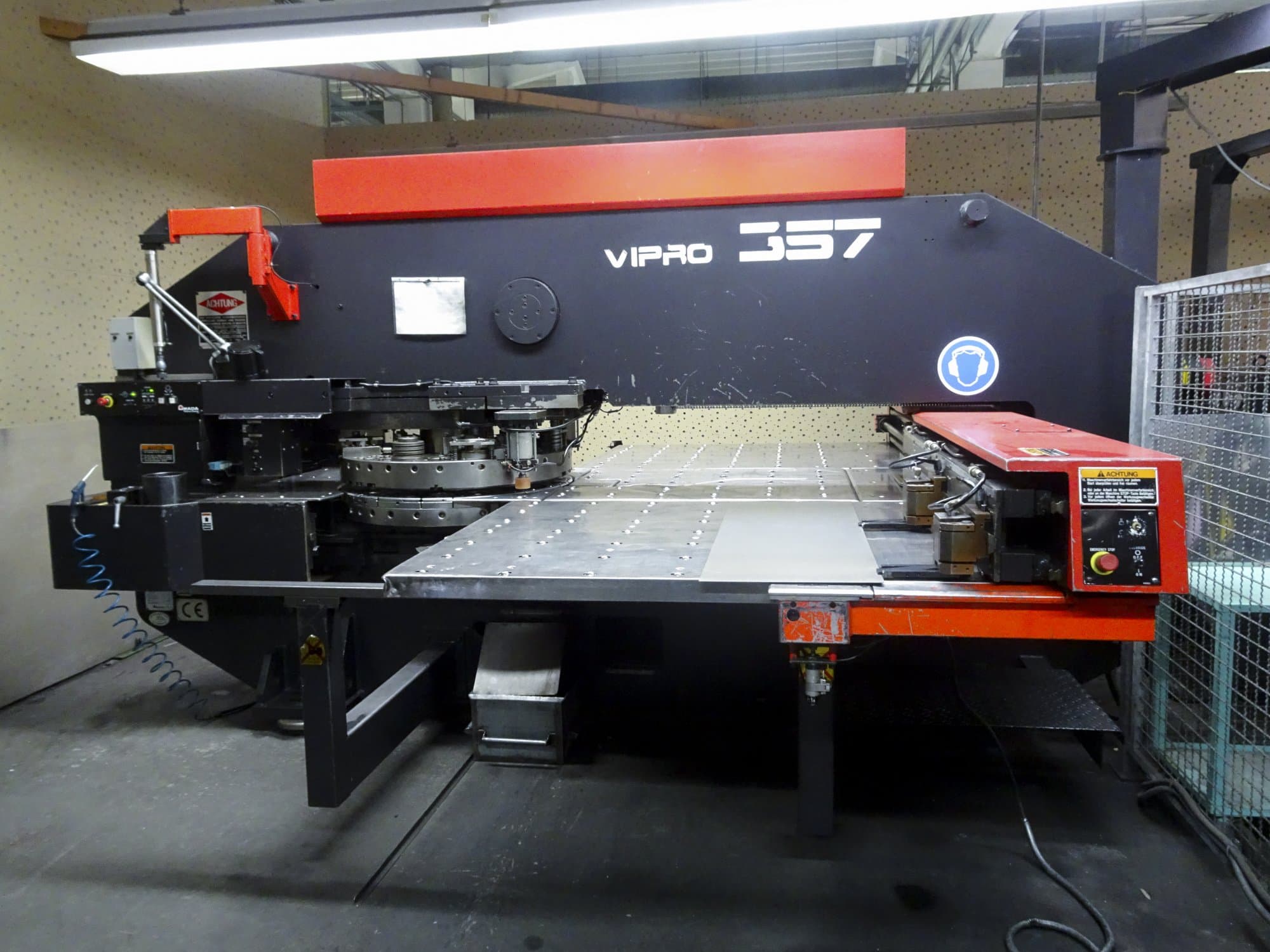

➤ Used AMADA Vipros 357 | Turret Punching Machine

Show in original language

This AMADA Vipros 357 Turret Punching Machine was manufactured in 1995 in Japan and has a working record of approximately 52800 production hours. Operated through a AMADA AMADAN 04P-C with RS232 Interface Control unit, the machine includes additional tools as complementary pieces. In the past, this AMADA has worked mainly on mild steel and stainless steel of 2 mm in thickness, and produced Railway Ticketing Machines. With easy-to-find spare parts in the market, the equipment stands in excellent conditions as a frequent maintenance routine was performed on it.

Overview

brand: AMADA
year: 1995
MODEL: Vipros 357
production hours: 52800
application type: Punching
Location: Germany
machine type: CNC Punch Press
control unit brand: AMADA

Technical Information - AMADA Vipros 357

General Data

Measurements width: 3778 mm
Measurements depth: 4601 mm
Measurements height: 2254 mm
Machine weight: 13500 kg

Control Unit

Model: AMADAN 04P-C
Interface: RS232
Brand: AMADA

Main drive

Punching force: 300 kN
Maximum sheet thickness: 6 mm

Movement

X-AXIS Movement: 1778 mm
Y-AXIS Movement: 1270 mm

Tools

Number of index: 4
Number of stations: 45

Max Material thickness

Steel: 5 mm
Stainless steel: 3 mm
Aluminum: 2 mm

Media

Main electronic connection: 400 V
Power consumption: 35 kVA
Air pressure: 6 bar

Additional Information

Additional equipment

Tools

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
