- ➤ AMADA Vipros 358 QUEEN | Turret Punching Machine

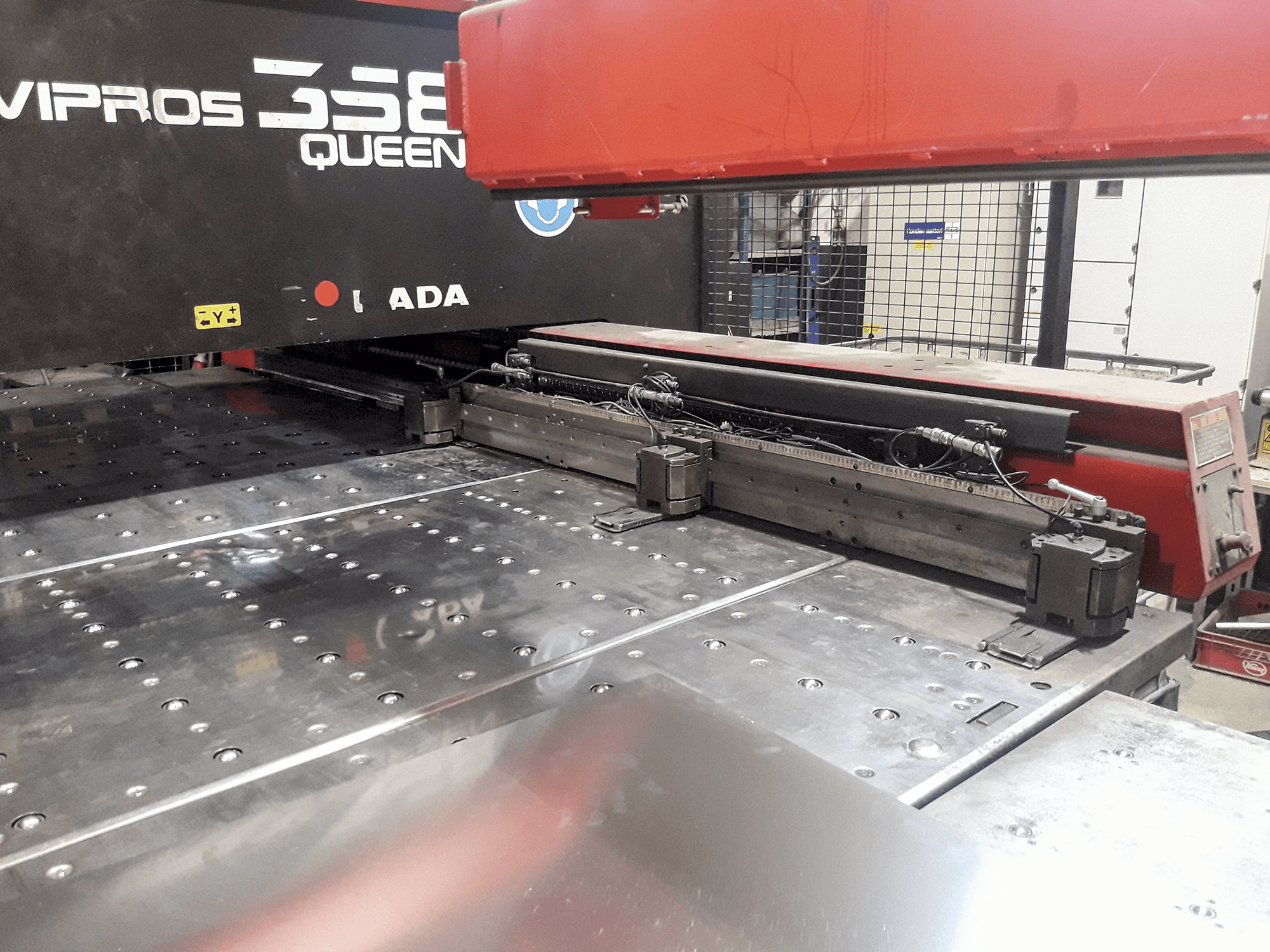

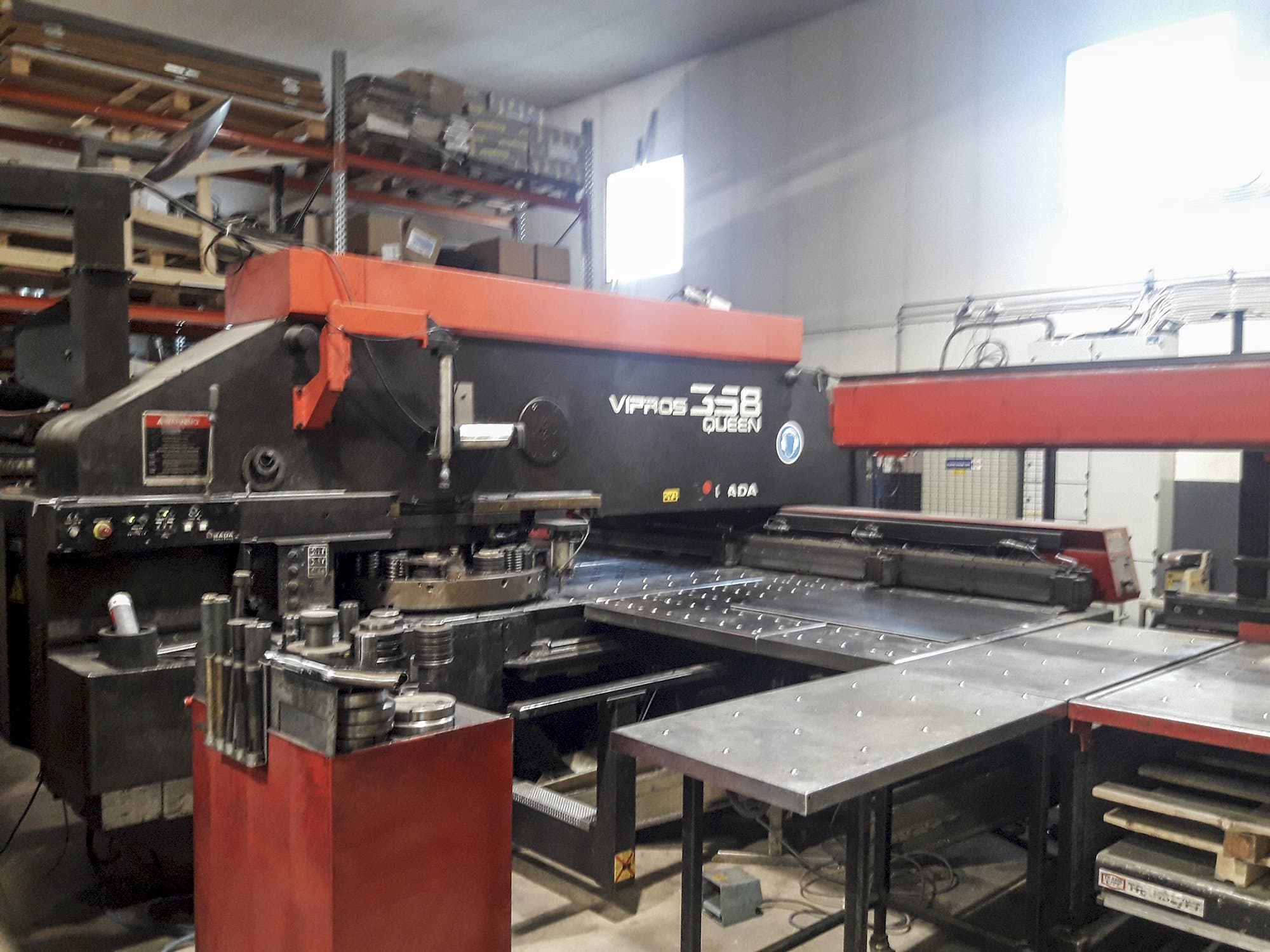

This AMADA Vipros 358 QUEEN Turret Punching Machine has been manufactured in France in 1998 and has been operative for 22169 production hours since then. Equipped with a FANUC 04PC Control unit, this machine has mainly worked with 2 mm aluminium sheets during the past and stands out due to the included automatic sheet loading. The machine is in good conditions and comes with a tool grinding machine, software, a huge selection of tools and 2 chip conveyers included in the delivery.
Overview
- brand: AMADA
- year: 1998
- MODEL: Vipros 358 QUEEN
- production hours: 22169
- application type: Punching
- Location: Finland
- machine type: CNC Punch Press
- control unit brand: FANUC
Technical Information - AMADA Vipros 358 QUEEN
Control Unit
- Control Brand: FANUC
- Control Model: 04PC
Dimensions
- Machine Depth: 4200 mm
- Machine Height: 2310 mm
- Machine Weight: 13500 kg
Movement
- X-axis Travel: 2000 mm
- Y-axis Travel: 1270 mm
Technical Specification
- Max. Sheet Thickness: 4 mm
- Max. Workpiece Diameter: 114.3 mm
- Punching Force: 300 Kn
Additional Information
Additional equipment
- Automatic Sheet Loader MP LKI 250
- 2x Chip Conveyer
- Tools
- Tool Grinding Machine
- AMADA Software
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
