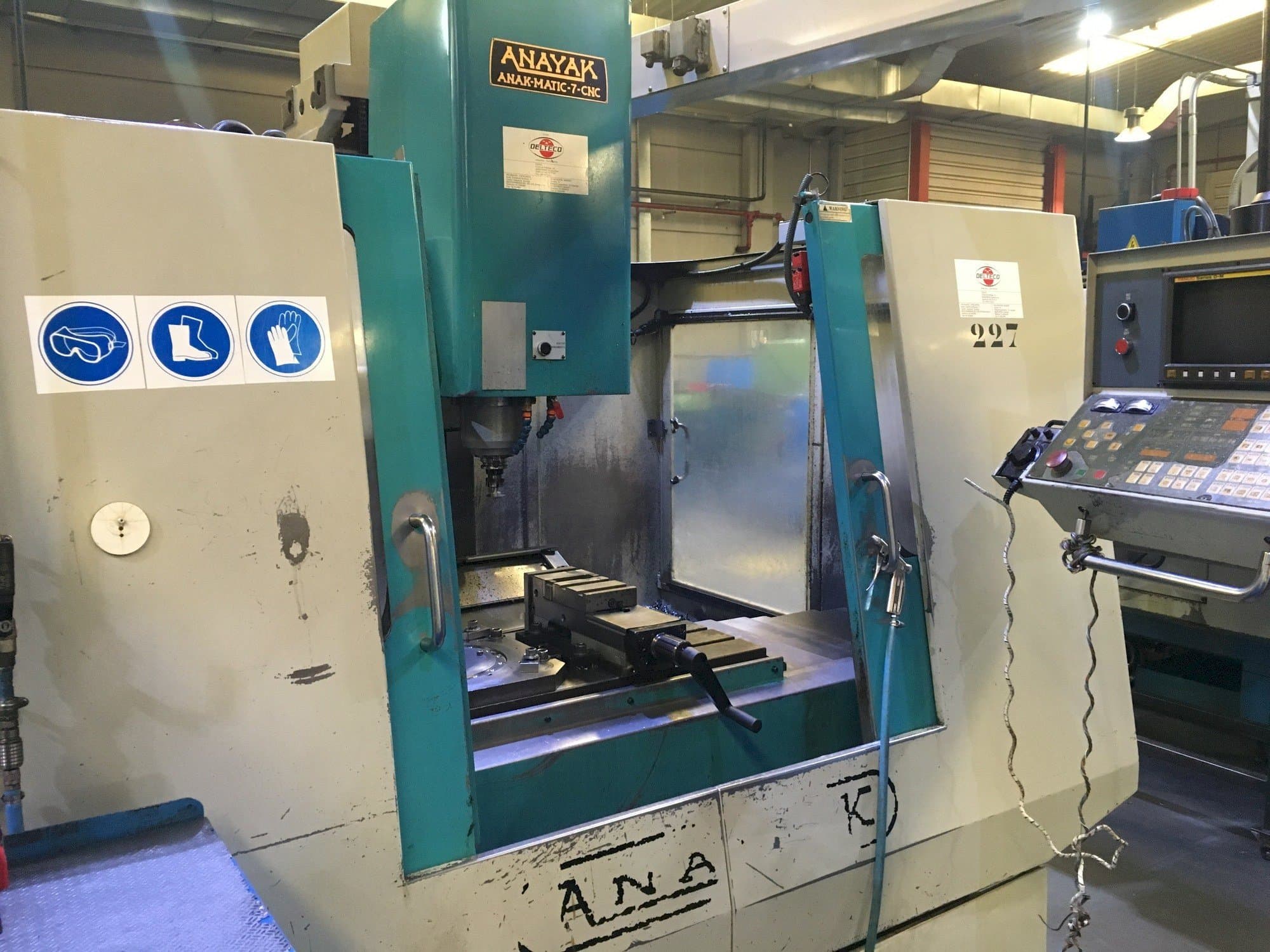

Front view of ANAYAK ANAKMATIC-7 machine
Front view of ANAYAK ANAKMATIC-7 machine

Thank you for your visit

This machine was recently sold.

Browse similar machines

ANAYAK - ANAKMATIC-7ES-MIL-ANA-1998-00002

Sold

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This ANAYAK ANAKMATIC-7 Vertical Machining Center was built in the year 1998 in Spain. It is equipped through a FANUC SERIES O-M control unit. This machine can work with a spindle speed up to 6000 rpm. It is in good condition.

Overview

  • brand: ANAYAK
  • year: 1998
  • MODEL: ANAKMATIC-7
  • application type: Milling
  • Location: Spain
  • machine type: Vertical Machining Centre
  • availability: Sold
  • control unit brand: FANUC

Technical Information - ANAYAK ANAKMATIC-7

General Data

  • Measurements width: 3000 mm
  • Measurements depth: 2400 mm
  • Measurements height: 2525 mm
  • Machine weight: 6000 kg

Control Unit

  • Model: SERIES O-M
  • CNC main language: English
  • CNC language customizable: Yes
  • Brand: FANUC

Main drive

  • Spindle speed range: 60-6000 1/MIN

Movement

  • X-AXIS Movement: 800 mm
  • Y-AXIS Movement: 450 mm
  • Z-AXIS Movement: 505 mm

Workpiece

  • Workpiece x: 800 mm
  • Workpiece y: 450 mm
  • Workpiece z: 505 mm
  • Workpiece weight: 500 kg

Table

  • Outer length: 900 mm
  • Outer width: 425 mm

Tools

  • Slots in storage: 20
  • Max weight: 6 kg
  • Max tool diameter: 150 mm
  • Max tool length: 250 mm

Media

  • Main electronic connection: 330 V
  • Power consumption: 15 kVA

Additional Information

    Machine history

    • Industries: Automotion

    Machine Benefits

    • Qualitative Machine Benefits:
      • - Good status
      • - It has had a weekly and exhaustive maintenance

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
