➤ Used Arburg 270C 500-100 | Injection Moulding Machine

Show in original language

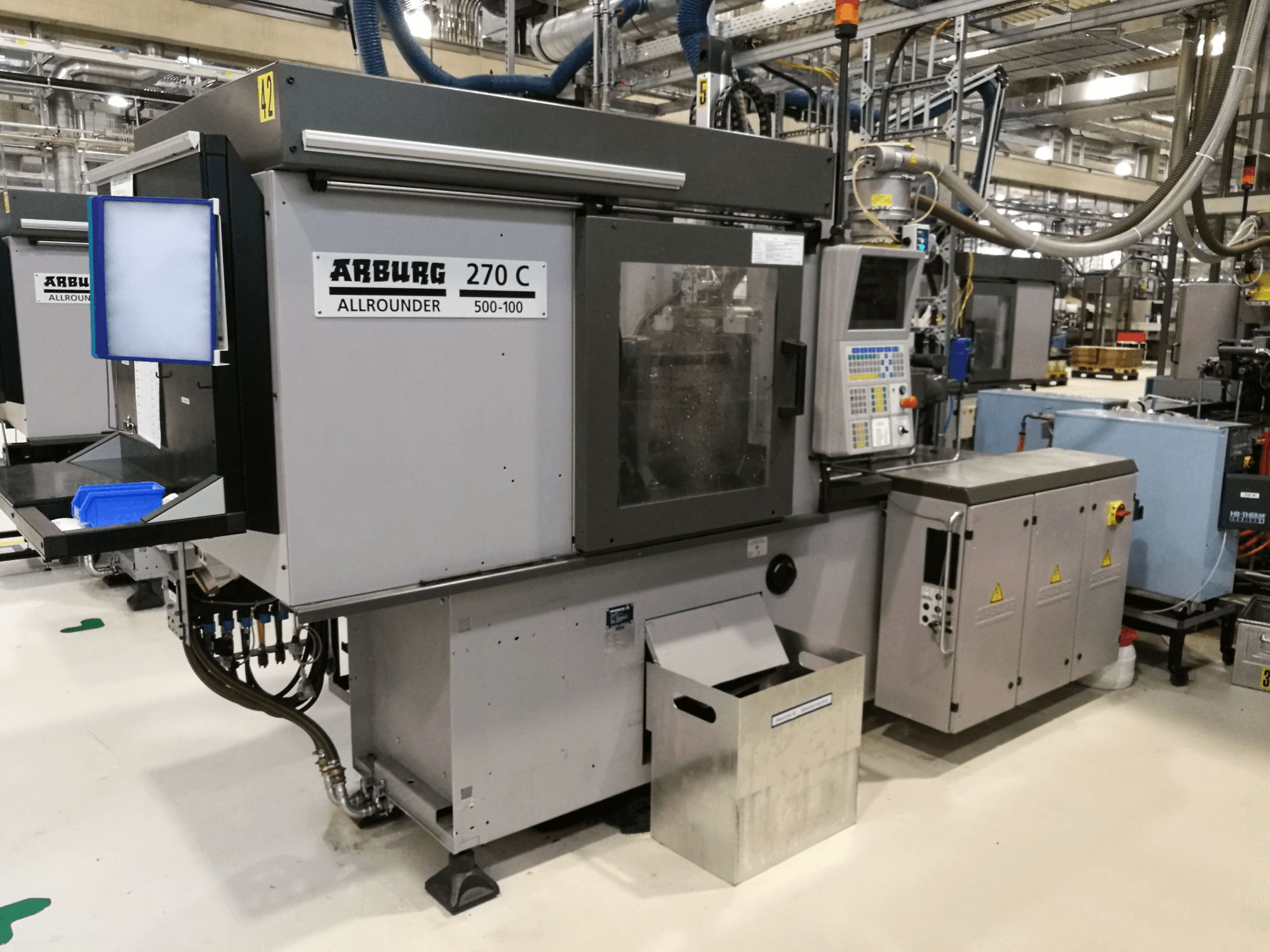

This Arburg 270C 500-100 Injection Moulding Machine from 2007 has a working record of 44778 production hours. Operated through an Arburg Control unit, this solid machine comes with hydraulic drive and stands in perfect conditions. Plastic has been the main material handled by this Arburg.

Overview

brand: Arburg
year: 2007
MODEL: 270C 500-100
production hours: 44778
application type: Injection Moulding
Location: Germany
machine type: Hydraulic Injection Moulding Machine
availability: Sold
control unit brand: ARBURG

Technical Information - Arburg 270C 500-100

General Data

Measurements width: 3500 mm
Measurements depth: 1500 mm
Measurements height: 2000 mm
Machine weight: 1900 kg
Automatic cycles: 7678547
Type of drive: Hydraulic
Closure: Hydraulic

Control Unit

Brand: ARBURG

Injection Unit

Heating capacity: 10.6 kW
Nozzle pressure: 30 kN

Clamping unit

Clamping force: 500 kN
Opening stroke: 350 mm
Max open daylight: 550 mm
Distance between bars: 320 mm
Size of mold platens: 446 mm
Ejector stroke: 125 mm
Ejector force for / back: 30 kN

Media

Main electronic connection: 400 V / 50 Hz / 3 P
Power consumption: 22 kVA
Oil tank: 160 L

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
