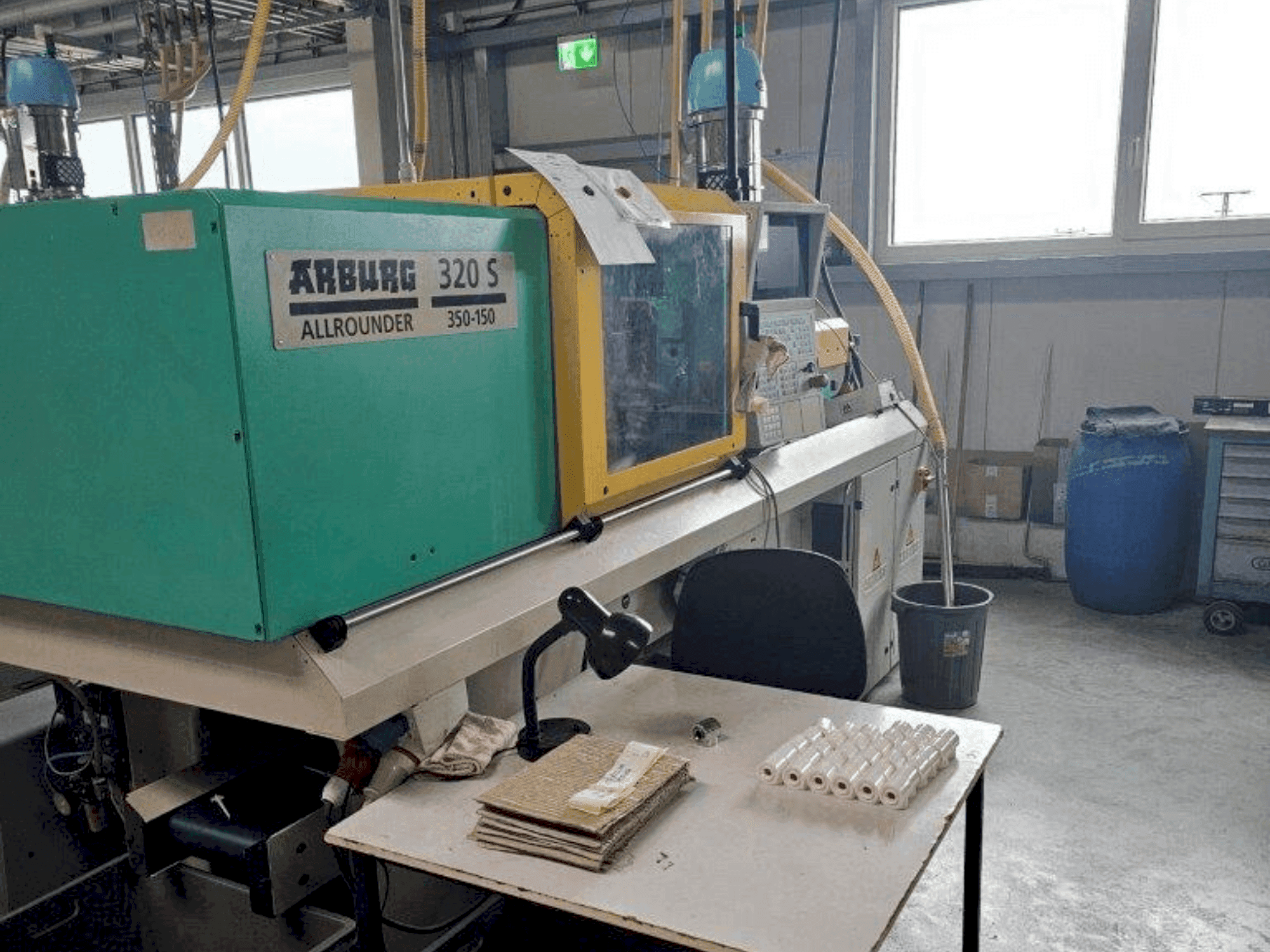

Front view of Arburg 320 S 350-150 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Arburg 320 S 350-150

Photo Gallery

Arburg - 320 S 350-150DE-INJ-ARB-2001-00005

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Plastics Processing Machinery
ARBURG 320 S 350-150 Injection moulding machine

Show in original language

This ARBURG 320 S 350-150 Injection moulding machine was manufactured in 2001 in Germany. It has a clamping force of 350 kN and a screw diameter of 30 mm. The min. mold installation height is 172 mm and the platen size is 472 x 472 mm. In total it operated 73384 pump hours. See original tech specs sheet (DE) as PDF attached below.

Overview

brand: Arburg
year: 2001
MODEL: 320 S 350-150
production hours: 73384
application type: Injection Moulding
Location: Germany
machine type: Hydraulic Injection Moulding Machine
control unit brand: ARBURG

Technical Information - Arburg 320 S 350-150

General Data

Machine weight: 2250 kg

Control Unit

Model: SELOGICA 3.080
Brand: ARBURG

Injection Unit

Screw diameter: 30 mm
Stroke volume: 78 cm3 CM³
Injection pressure: 2210 bar

Clamping unit

Clamping force: 350 kN
Max open daylight: 270 x 270 mm
Distance between bars: 472 x 472 mm
Mould height min: 175 mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Mold installation height min. 175 mm
- - Clear column spacing 270 x 270 mm
- - Mold mounting platens (w x h) 472 x 472
- - Drive power of the hydraulic pump 11 kw
- - Effective screw length l/d 20
- - Screw stroke max. 110 mm
- - Calculated stroke volume max. 78 cm3
- - Injection part weight max. 71 g/ps
- - Injection pressure max. 2210 bar
- - Injection flow max. 82 cm3/s

Extra information

- Oil filling 120 l // Pump hours 73,384 h

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

Documents

ARBURG 320 S 350-150 (2001) - Tech Specs (DE).pdf
