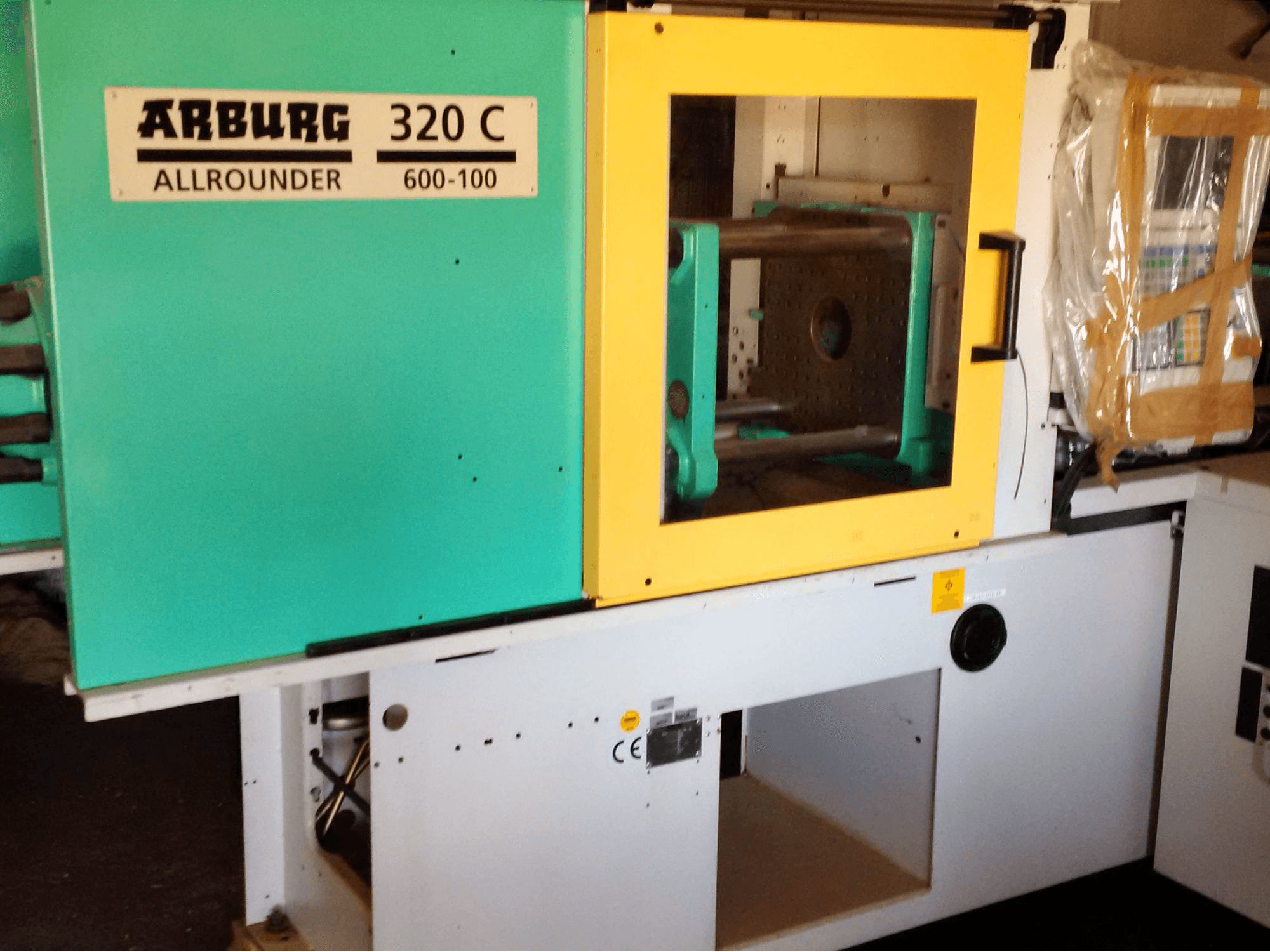

Front view of Arburg 320C 600-100 Machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Arburg 320C 600-100

Photo Gallery

Arburg - 320C 600-100DE-INJ-ARB-2001-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Plastics Processing Machinery
Arburg 320C 600-100 Injection Moulding Machine

Show in original language

This Arburg 320C 600-100 Injection Moulding Machine from 2001 was manufactured in Germany and is operated through a Control unit of the same brand. This model offers a clamping force of 600 kN and comes with both a Pioven cooling and tempering unit.

Overview

brand: Arburg
year: 2001
MODEL: 320C 600-100
application type: Injection Moulding
Location: Germany
machine type: Hydraulic Injection Moulding Machine
control unit brand: ARBURG

Technical Information - Arburg 320C 600-100

General Data

Measurements width: 3600 mm
Measurements depth: 1600 mm
Measurements height: 2200 mm
Machine weight: 2080 kg

Control Unit

Brand: ARBURG

Injection Unit

Screw diameter: 25 mm
Stroke volume: 49 cm³
Injection pressure: 2240 bar

Clamping unit

Clamping force: 600 kN
Opening stroke: 350 mm
Distance between bars: 270 x 270 mm
Size of mold platens: 446 x 446 mm
Ejector stroke: 125 mm
Ejector force for / back: 30 kN

Media

Main electronic connection: 400 V / 50 Hz
Power consumption: 44 kW

Additional Information

Additional equipment

Piovan cooling unit (new)
Piovan tempering unit

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
