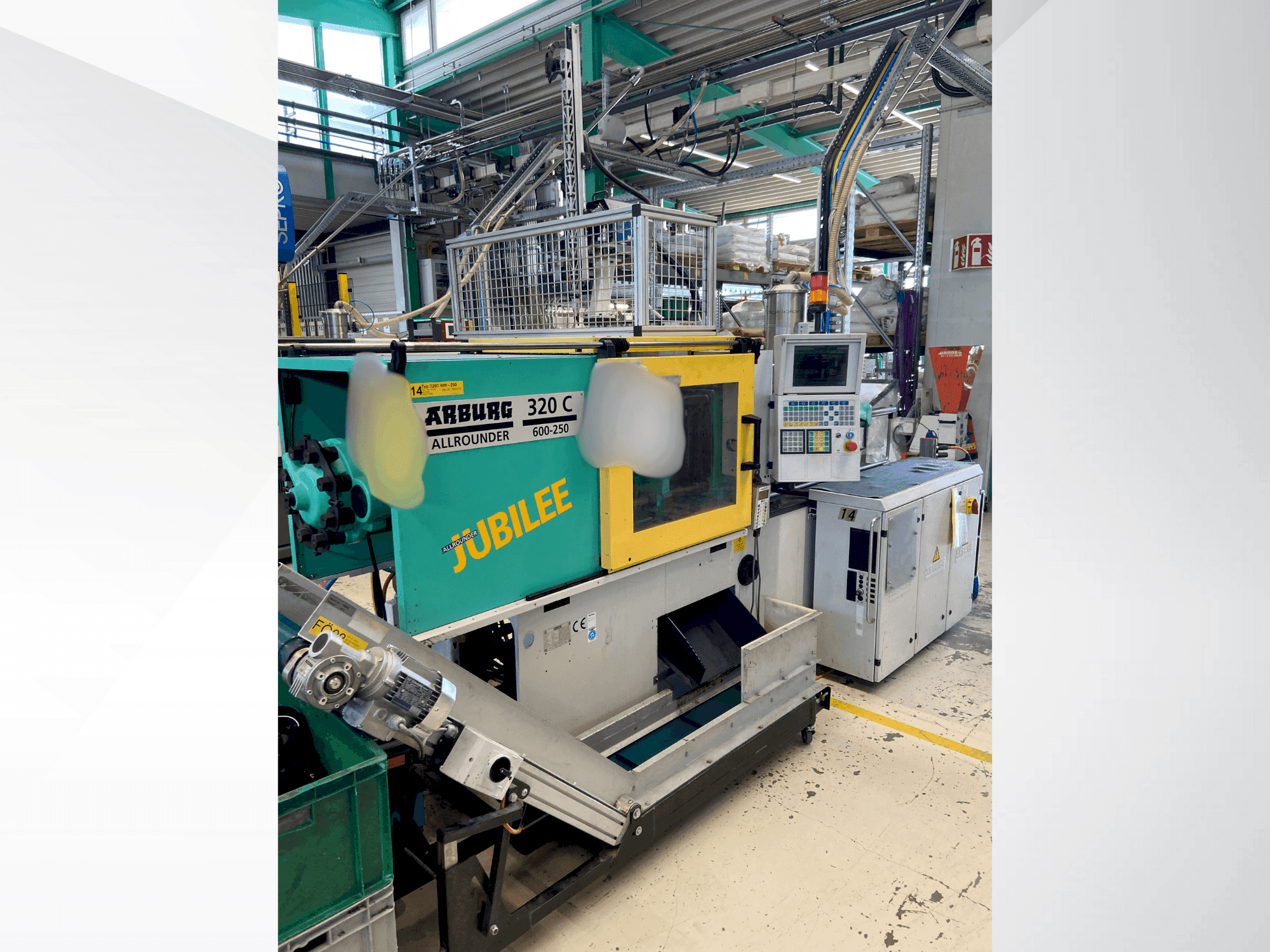

Front view of Arburg 320C 600-250 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Arburg 320C 600-250

Photo Gallery

Arburg - 320C 600-250DE-INJ-ARB-1998-00003

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Plastics Processing Machinery
➤ Used Arburg 320C 600-250 For Sale | gindumac.com

Show in original language

This Arburg 320C 600-250 injection moulding machine was manufactured in 1998. It features a clamping force of 60 tons, a screw diameter of 35 mm, and operates with a hydraulic drive system. The machine dimensions are approximately 4.5 m x 1.5 m x 2.0 m, weighing around 5,000 kg. Ideal for precision molding, the Arburg 320C 600-250 machine we have for sale is a robust addition to any production line. Contact us for further details regarding this injection moulding machine.

Overview

brand: Arburg
year: 1998
MODEL: 320C 600-250
production hours: 0
application type: Injection Moulding
Location: Germany
machine type: Hydraulic Injection Moulding Machine

Technical Information - Arburg 320C 600-250

General Data

Measurements width: 1500 MM
Measurements depth: 4500 MM
Measurements height: 2000 MM
Machine weight: 5000 KG

Injection Unit

Screw diameter: 35 mm
Stroke volume: 125 cm³
Injection pressure: 2000 bar
Plasticizing rate max.: 25 g/s
Screw speed: 300 rpm

Clamping unit

Clamping force: 600 kN (60 tons)
Opening stroke: 400 mm
Max open daylight: 850 mm
Distance between bars: 320 x 320
Mould height min: 200 mm
Mould height max: 450 mm
Size of mold platens: 570 x 570 mm
Ejector stroke: 150 mm
Ejector force for / back: 28 kn

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Injection rate: 120 cm³/s
- - Power consumption: approximately 20-25 kw
- - High injection pressure (2000 bar) for precise molding
- - Versatile control system options (selogica or allrounder)
Qualitative Machine Benefits:
- - Robust and reliable with significant clamping force and precise control

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
