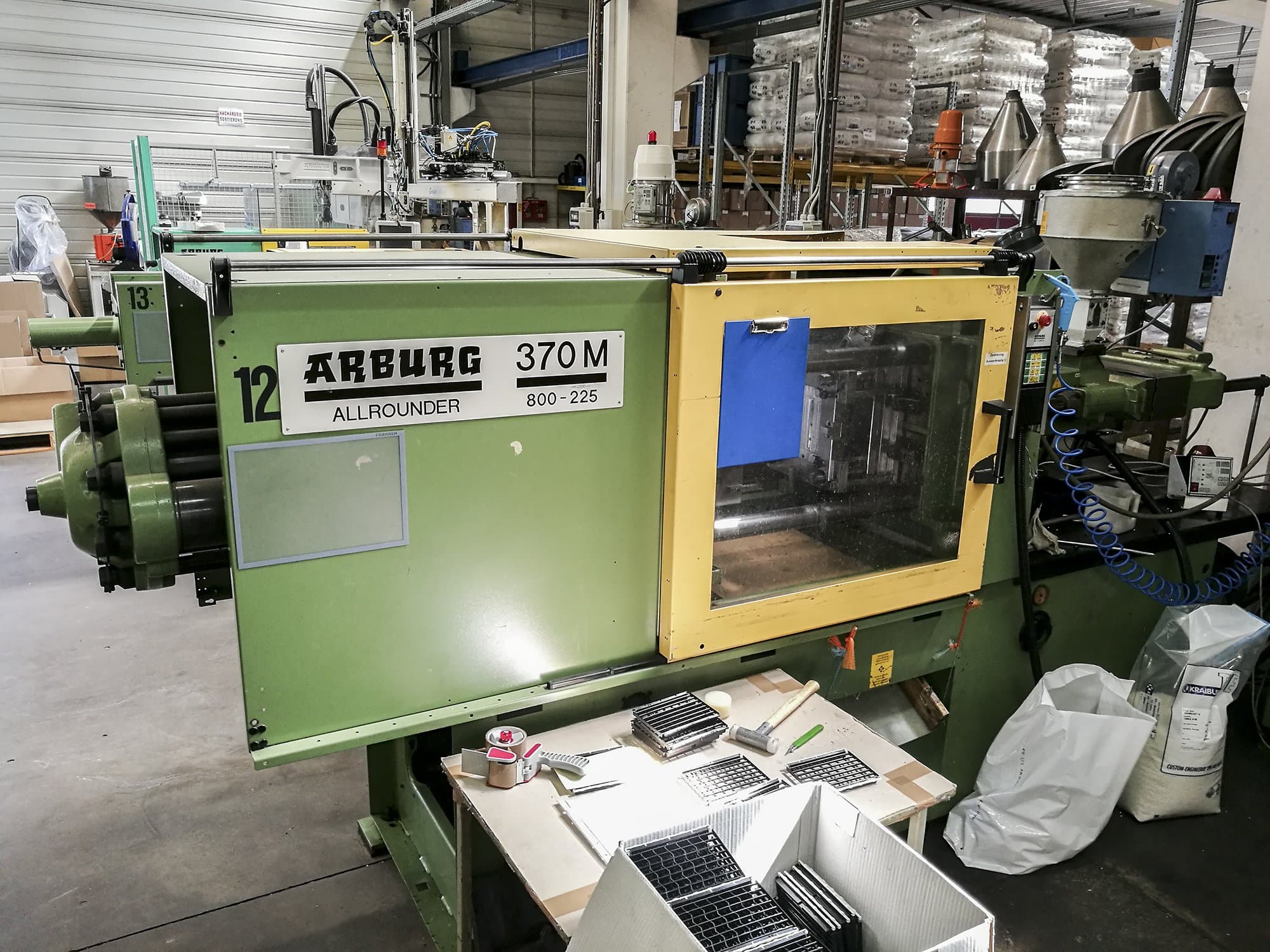

Front view of Arburg 370M 800-225 Machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Arburg 370M 800-225

Photo Gallery

Arburg - 370M 800-225DE-INJ-ARB-1995-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Plastics Processing Machinery
Arburg 370M 800-225 Injection Moulding Machine

Show in original language

This Arburg 370M 800-225 Injection Moulding Machine from 1995 was manufactured in Germany and has been operative for 53562 working hours since then. Equipped with an Arburg Multronica Control unit, this model has a nozzle height adjustment and has mainly worked with ABS plastics during the past.

Overview

brand: Arburg
year: 1995
MODEL: 370M 800-225
production hours: 53562
application type: Injection Moulding
Location: Germany
machine type: Hydraulic Injection Moulding Machine
availability: Sold
control unit brand: ARBURG

Technical Information - Arburg 370M 800-225

General Data

Measurements width: 4300 mm
Measurements depth: 1600 mm
Measurements height: 1850 mm
Machine weight: 3080 kg

Control Unit

Model: Multronica
CNC main language: German
Brand: ARBURG

Injection Unit

Screw diameter: 40 mm
Shot weight: 89/121/158 g/PS
Stroke volume: 106 cm3 CM³
Injection pressure: 2350 bar

Clamping unit

Clamping force: 800 kN
Opening stroke: 500 mm
Max open daylight: 500 mm
Distance between bars: 370x370 mm
Size of mold platens: 545x545 mm
Ejector stroke: 175 mm

Media

Main electronic connection: 400 V
Power consumption: 33 kW
Internal cooling: Yes

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
