➤ Used ARBURG 420C 1000-250 | Injection moulding machine

Show in original language

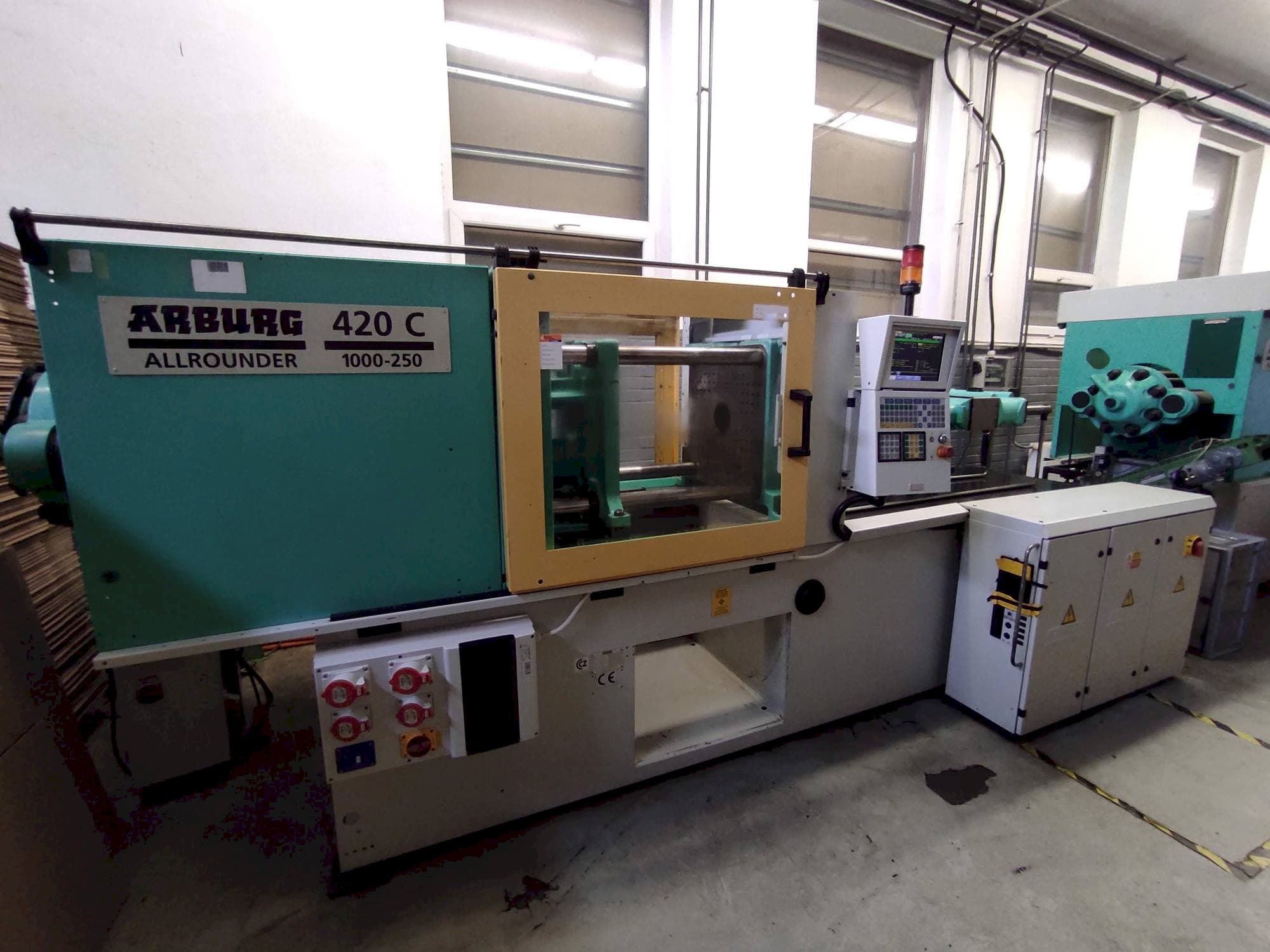

This Arburg 420C 1000-250 Injection moulding machine was made in Germany in 2001. It has 100814 production hours. It works with a clamping force 1000 kN and an opening stroke of 500 mm. Regularly maintained by Arburg.

Overview

brand: Arburg
year: 2001
MODEL: 420C 1000-250
production hours: 100814
application type: Injection Moulding
Location: Czech Republic
machine type: Hydraulic Injection Moulding Machine
availability: Sold

Technical Information - Arburg 420C 1000-250

General Data

Machine weight: 3180 KG

Injection Unit

Screw diameter: 35 mm
Shot weight: 132 g/PS
Stroke volume: 144 cm³
Injection pressure: 1820 bar
Heating capacity: 6.5 kW

Clamping unit

Clamping force: 1000 kN
Opening stroke: 500 mm
Mould height min: 250 mm
Size of mold platens: 570 x 570 mm
Ejector stroke: 175 mm
Ejector force for / back: 40 kN

Media

Main electronic connection: 400V / 50Hz

Additional Information

Machine history

Material type: Pp / pe

Machine Benefits

Qualitative Machine Benefits:
- - Regularly maintained by arburg

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
