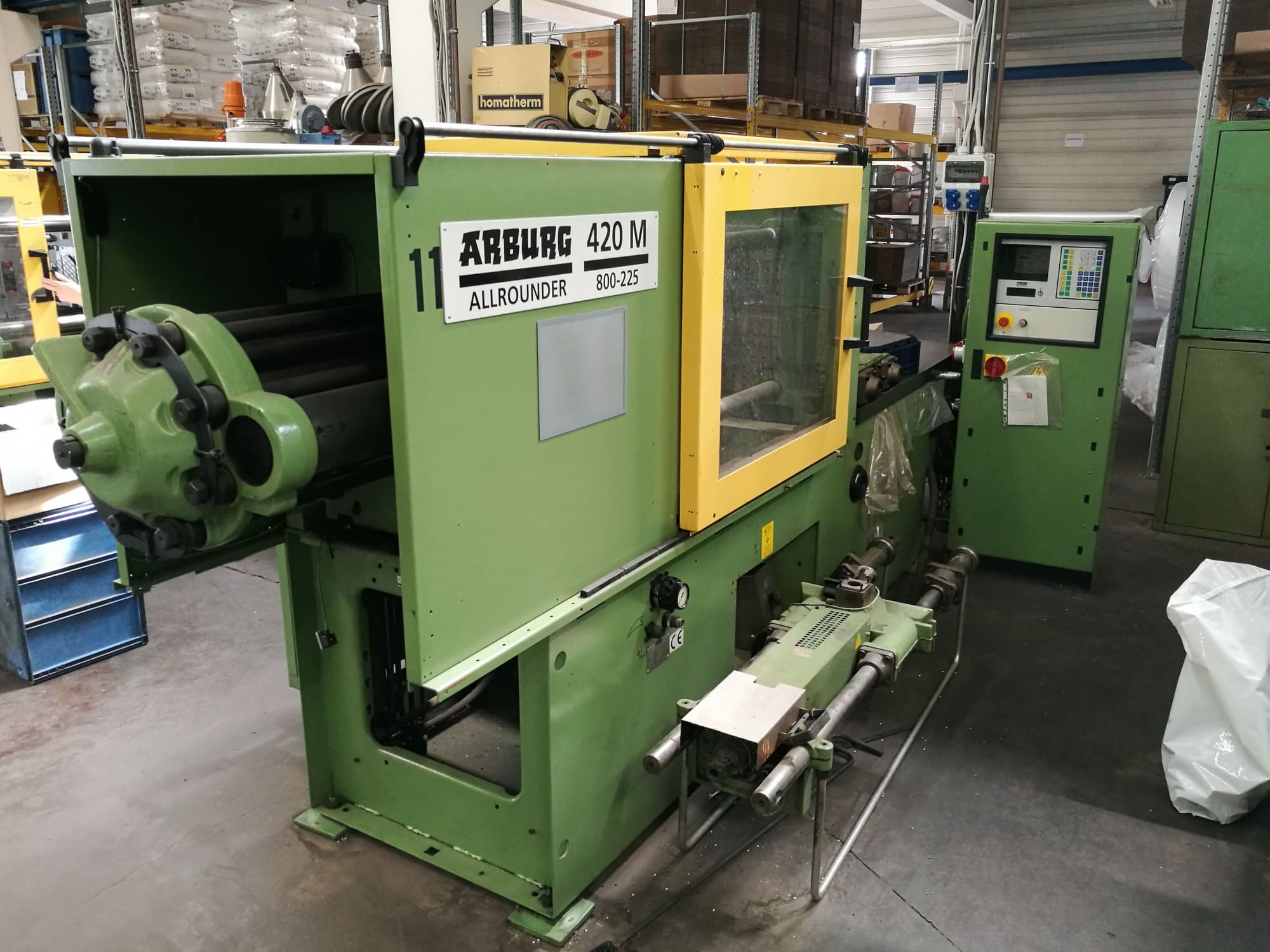

Left view of Arburg 420M 800-225 Machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Arburg 420M 800-225

Photo Gallery

Arburg - 420M 800-225DE-INJ-ARB-1997-00002

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Plastics Processing Machinery
Arburg 420M 800-225 Injection Moulding Machine

Show in original language

This Arburg 420M 800-225 Injection Moulding Machine was manufactured in 1997 in Germany and is operated through an Arburg Multronica control unit. With a clamping force of 800 kN, this machine stands out for being oil free.

Overview

brand: Arburg
year: 1997
MODEL: 420M 800-225
application type: Injection Moulding
Location: Germany
machine type: Hydraulic Injection Moulding Machine
availability: Sold
control unit brand: ARBURG

Technical Information - Arburg 420M 800-225

General Data

Machine weight: 6630 kg

Control Unit

Model: Multronica
Brand: ARBURG

Main drive

Main motor power: 35 kW

Injection Unit

Screw diameter: 40 mm
Shot weight: 117/153/194 g/PS
Stroke volume: 188 cm³
Injection pressure: 1500 bar

Clamping unit

Clamping force: 800 kN
Max open daylight: 500 mm
Distance between bars: 420 x 420 mm

Media

Main electronic connection: 400 V
Power consumption: 20.5 kVA
Internal cooling: Yes

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
