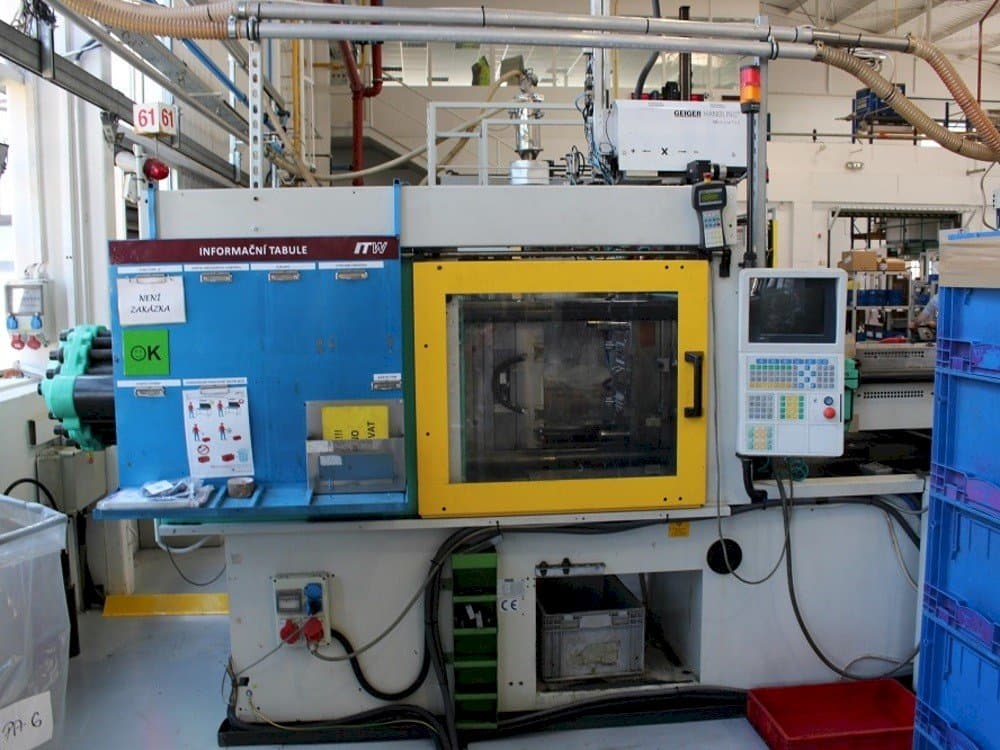

Arburg 470 C 1500-800 Injection moulding machine

Show in original language

This Arburg 470 C 1500-800 Injection moulding machine was built in 2006 in Germany and has 77800 pump hours. The machine has a clamping force of 1500 kN and a screw diameter of 50mm.

Overview

brand: Arburg
year: 2006
MODEL: 470 C 1500-800
production hours: 77800
application type: Injection Moulding
Location: Czech Republic
machine type: Hydraulic Injection Moulding Machine
availability: Sold

Technical Information - Arburg 470 C 1500-800

General Data

Measurements width: 4900 mm
Measurements depth: 1595 mm
Measurements height: 1950 mm
Machine weight: 5550 kg

Injection Unit

Screw diameter: 50 mm
Shot weight: 359 g
Stroke volume: 392 CM³
Injection pressure: 2000 bar

Clamping unit

Clamping force: 1500 kN

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Tie bar spacing (h): 470 mm
- - Tie bar spacing (v): 470 mm
- - Platen length: 650 mm
- - Platen width: 650 mm
- - Opening of the press: 750 mm
- - Mould size: 500

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
