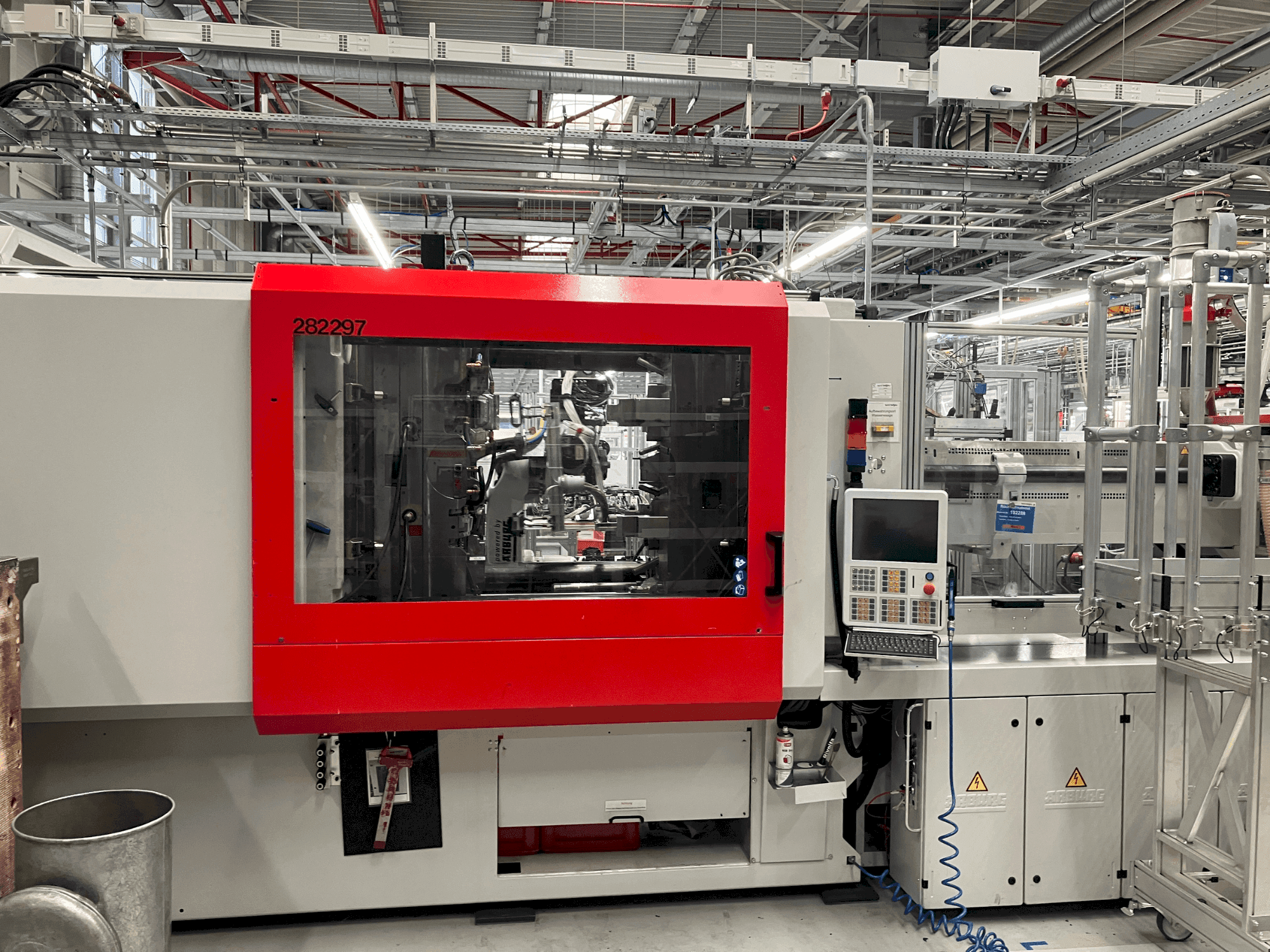

Arburg - Allrounder 920 S 5000-2100DE-INJ-ARB-2017-00006

Additional equipment

• - Plus Peripherals: 8x Temperature Control Unit Thermo 5 / Robot: KUKA KR30-3

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - The machine is equipped with the mucell process and can also be used for series injection molding.
  • - Tonnage: 550 tons
  • - Language options: german
  • - Maximum opening: 900 mm / maximum plate distance: 1300-1950 mm / maximum ejector length: 250 mm
  • - Coupling diameter: 45 mm / center ring diameter: 200 mm / valve gate: 4 pneumatic, 8 hydraulic
  • - Hk control points: 24
  • - Number of hydraulic core pulls (fixed side): 1 / number of hydraulic core pulls (moving side): 2
  • - Ejector can open simultaneously with wkz. Core pulls are freely programmable. Ejector and removal can be adapted to each other. Clamping platen is height-adjustable
  • - Power of the main motor 90 kw
  • - Oil capacity: 600 liters
• Qualitative Machine Benefits:
  • - Equipped with the mucell process for series injection molding
  • - Machine is fully hydraulic
