ARBURG ALLROUNDER CENTEX 520 C 2000-675 Injection moulding machine

Show in original language

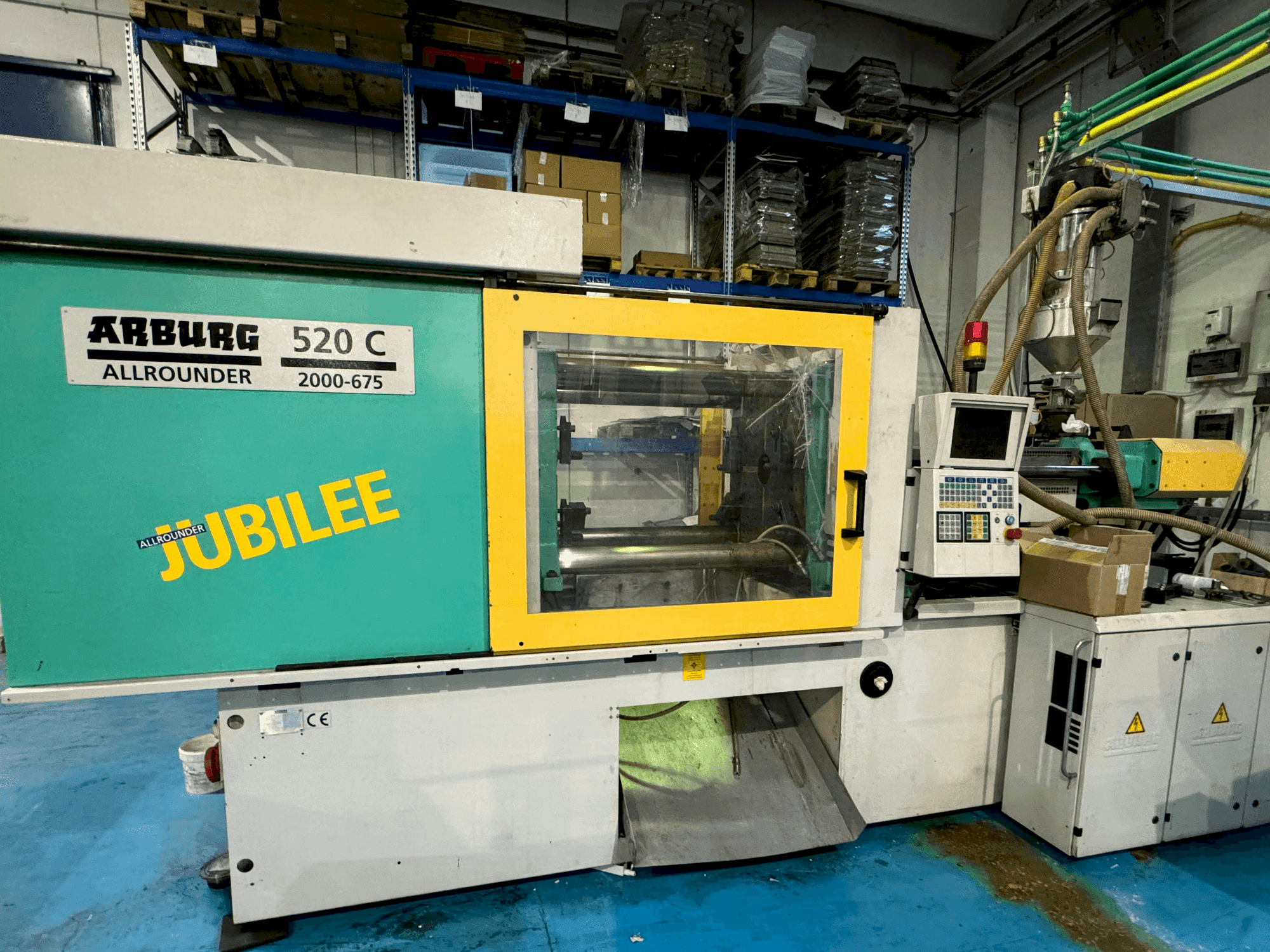

This ARBURG ALLROUNDER CENTEX 520 C 2000-675 Injection moulding machine was manufactured in 1998 in Germany. It has a clamping force of 2000 kN, an opening stroke of 650 mm and is equipped with an injection unit with 55mm screw diameter. The plate dimensions are 715x715 mm and distance between columns is 900 mm. It is still under power and can be inspected on-site anytime.

Overview

brand: Arburg
year: 1998
MODEL: ALLROUNDER CENTEX 520 C 2000-675
application type: Injection Moulding
Location: Italy
machine type: Hydraulic Injection Moulding Machine
availability: Sold

Technical Information - Arburg ALLROUNDER CENTEX 520 C 2000-675

General Data

Machine weight: 6630 kg

Injection Unit

Screw diameter: 55 mm
Injection pressure: 1720 bar
Heating capacity: 14.9 kW

Clamping unit

Clamping force: 2000 kN
Opening stroke: 650 mm
Distance between bars: 900 mm
Size of mold platens: 715 x 715 mm

Media

Main electronic connection: 400 V 3 ~ 50 HZ
Pump drive power: 1 x 30 kW

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
