➤ Used AWEA BM-1600 | Vertical Machining Center

Show in original language

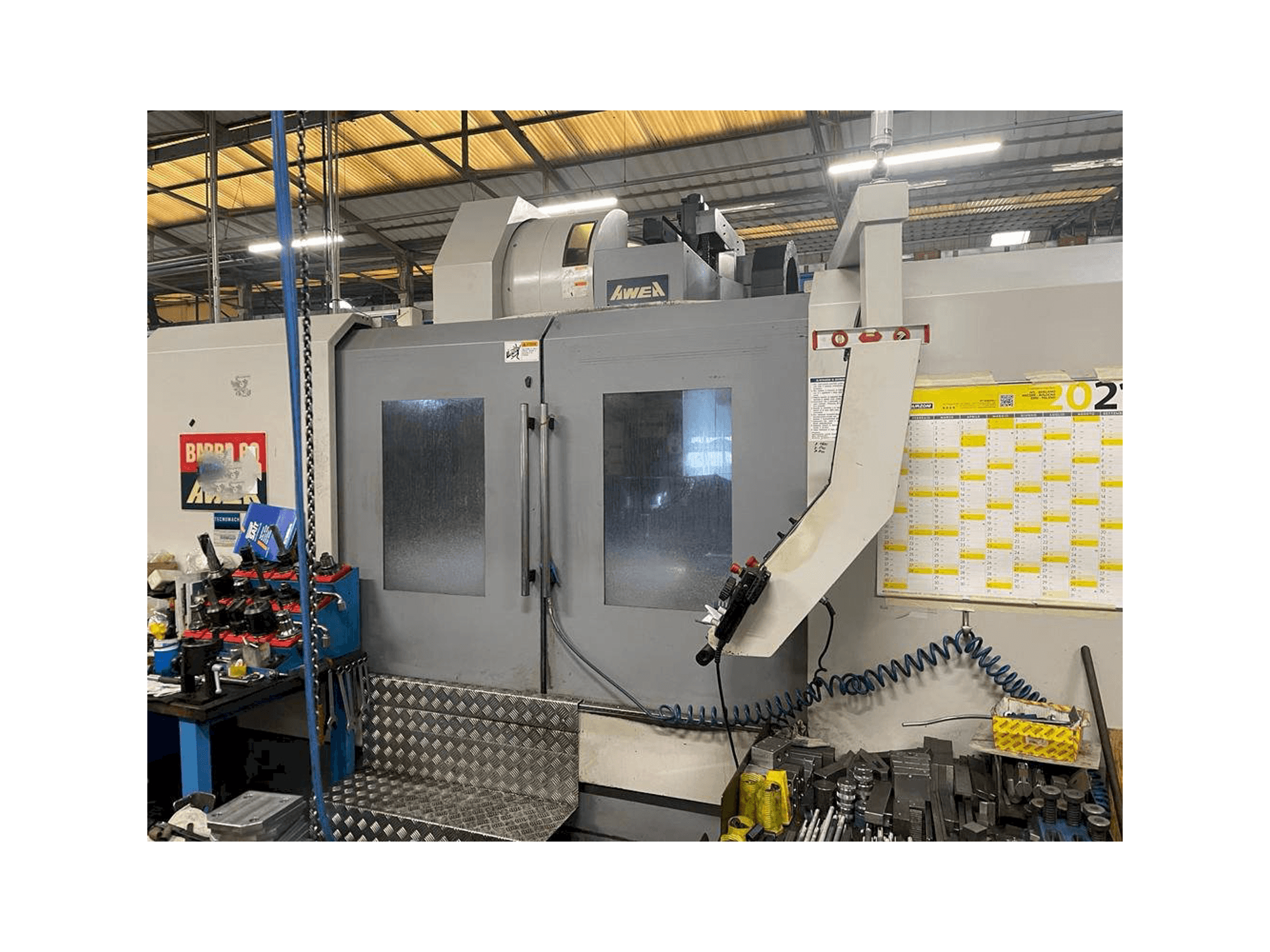

This AWEA BM-1600 Vertical Machining Center was made in Taiwan in the year 2006. It is equipped with an Heidenhain control unit. This 3 axis machine can work with a spindle speed up to 6000 rpm. This model allows to process workpieces with up to 2000 kg of weight.

Overview

brand: AWEA
year: 2006
MODEL: BM-1600
application type: Milling
Location: Italy
machine type: Vertical Machining Centre
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - AWEA BM-1600

General Data

Measurements width: 4400 mm
Measurements depth: 3000 mm
Measurements height: 3200 mm
Machine weight: 16000 kg

Control Unit

Brand: HEIDENHAIN

Main drive

Spindle speed range: 6000 1/MIN
Number of spindles: 1
Number of axis: 3

Movement

X-AXIS Movement: 1600 mm
Y-AXIS Movement: 800 mm
Z-AXIS Movement: 800 mm

Workpiece

Workpiece weight: 2000 kg

Table

Outer length: 1700 mm
Outer width: 800 mm

Tools

Max weight: 7 kg
Max tool diameter: 130 / 250 mm
Max tool length: 300 mm

Media

Main electronic connection: 220 V / 3 P
Power consumption: 40 kVA
Chip conveyor: Yes
Internal cooling: Yes

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
