AXA DBZ 2 / 50 3-Axis Vertical Machining

Show in original language

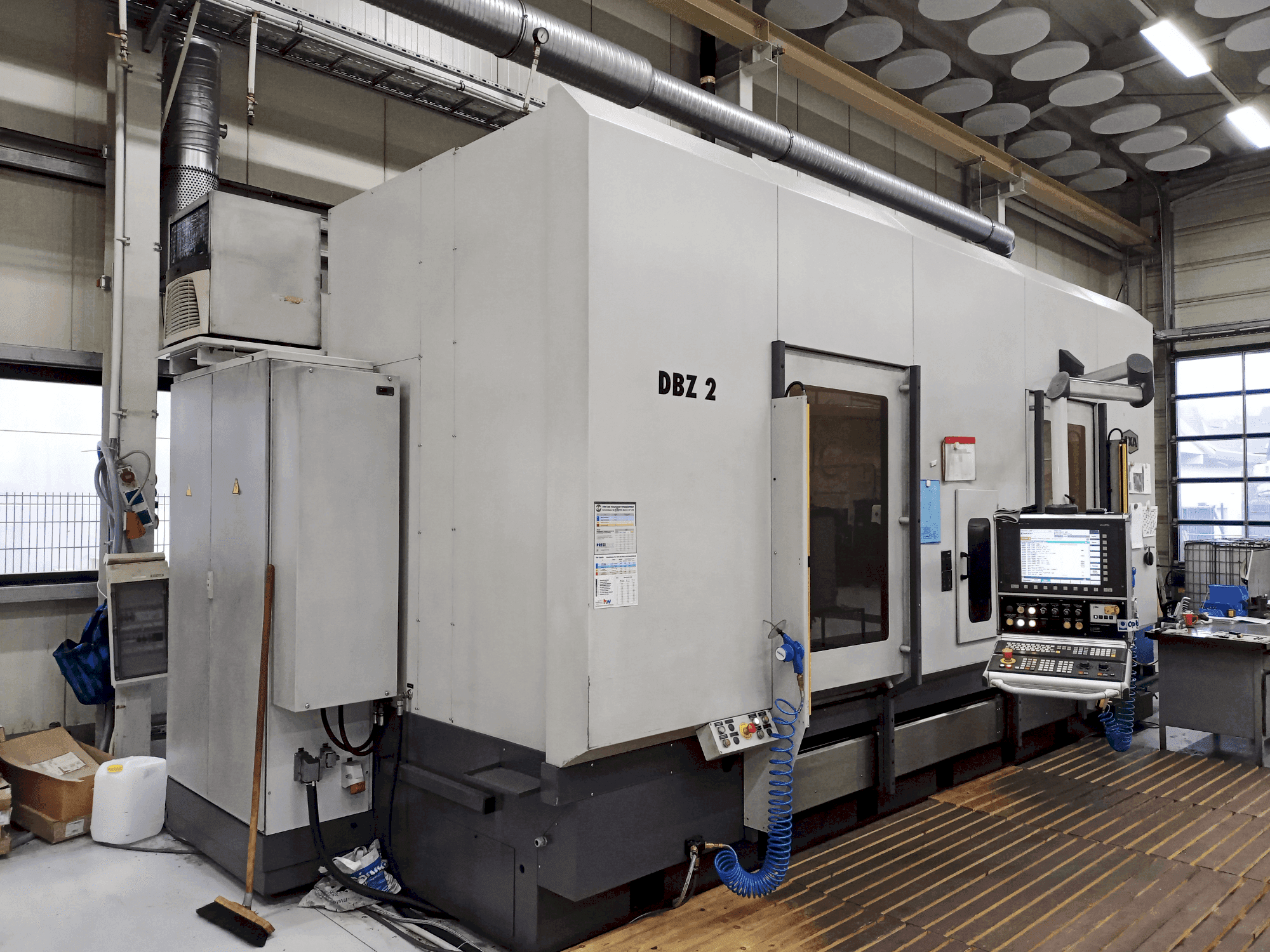

This AXA DBZ 2 / 50 3-Axis Vertical Machining Centre was manufactured in 2012 in Germany. It is equipped with a SK 50, DME 132.AM (Kessler) spindle with hollow shaft motor (water cooled) and a spindle speed range of 30 - 4000 rpm. Next to a 16-fold tool changer it comes additionally with a chip conveyor. The machine counter shows 25547 production hours. See original tech specs and layout plans as PDF (German) attached below for further details.

Overview

brand: AXA
year: 2012
MODEL: DBZ 2 / 50
production hours: 25547
application type: Milling
Location: Germany
machine type: Vertical Machining Centre
availability: Immediately

Technical Information - AXA DBZ 2 / 50

General Data

Measurements width: 6550 mm
Measurements depth: 3000 mm
Measurements height: 3150 mm
Machine weight: 18000 kg

Main drive

Spindle speed range: 30 - 4000 rpm 1/MIN
Tool taper: SK50
Number of axis: 3

Movement

X-AXIS Movement: 2x 800 mm
Y-AXIS Movement: 600 mm
Z-AXIS Movement: 600 mm

Tools

Slots in storage: 16

Media

Chip conveyor: Yes

Additional equipment

- AXA FSB 300 Chip Conveyor
- Central oil lubrication system SKF
- Oil mist lubrication SKF
- Cooling system Rittal
- Heat exchanger switch cabinet Rittal
- 2 workspace lights
- 2 extraction nozzles above the left-hand work area
- HYDAC hydraulic system
- Pneumatic system FESTO

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Spindle motor dme 132. Am (kessler)
- - Spindle design hollow shaft motor, water-cooled

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
