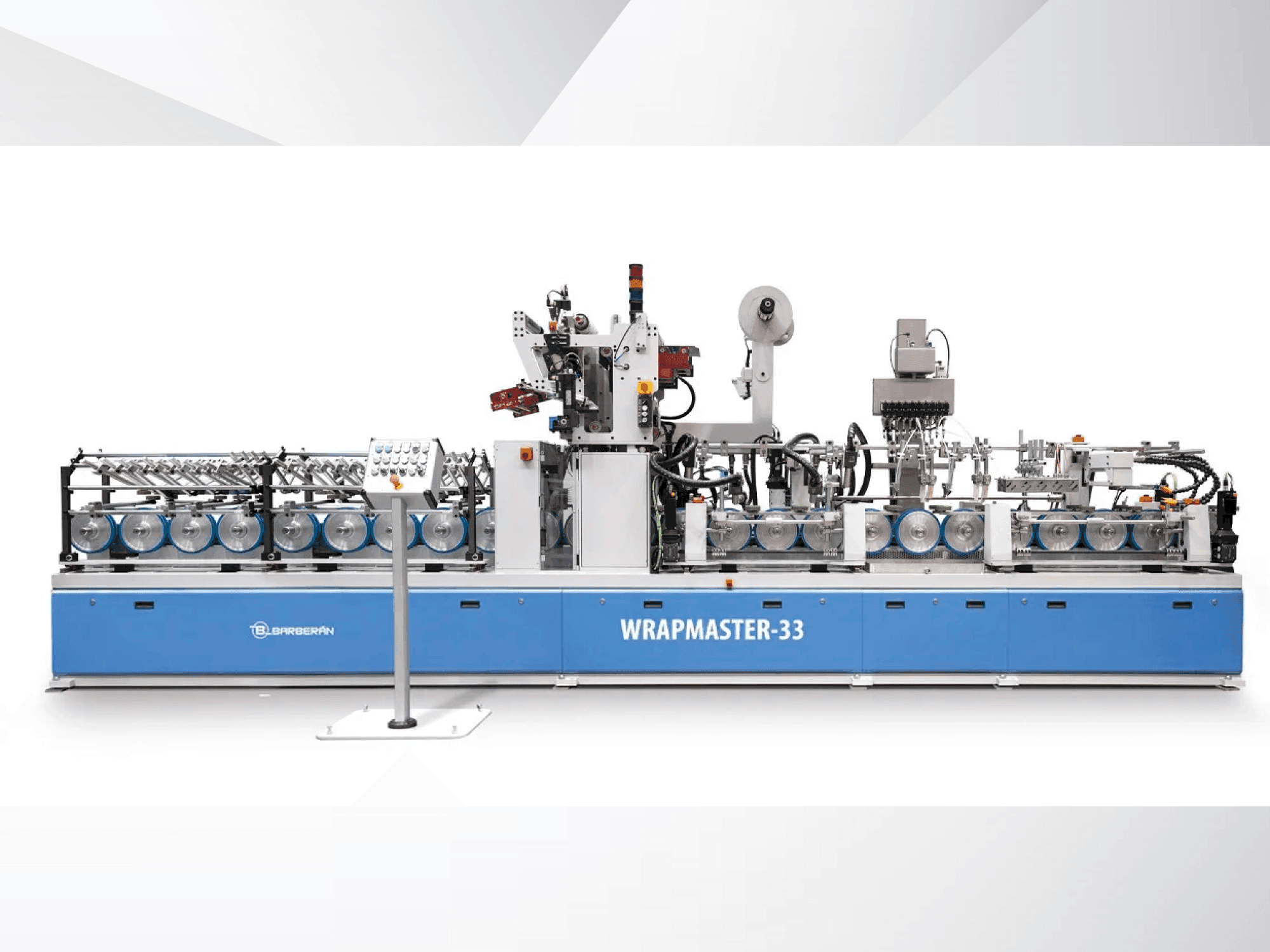

Barberan - WM-33DE-OTH-BAR-2025-00001

Additional equipment

• - Machine bed, slot nozzle head, mounts for wrapping tools
• - Complete tool set for PVC/Aluminum profiles
• - Operator safety system and control cabinet
• - Set of nozzles for profile cleaning
• - Protective foil unwinder and hot air turbines
• - Infrared screen with lamps and tool cassette

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - The profile wrapping machine is designed to wrap profiles of various shapes, sizes, and materials using different foils with hot melt adhesives.
  • - Operates as a standalone unit or part of a complete production line.
  • - Capable of working with materials such as pvc, aluminum, and some composites.
  • - Various foil types are compatible, special configurations may be needed for certain materials.
  • - Profile dimensions: width 25–300 mm, length ≥600 mm, height 4–120 mm
  • - Foil dimensions: width 25–330 mm, outer roll diameter ≤600 mm, inner roll diameter 76 mm
  • - Max mechanical speed: 60 m/min
  • - Working height: 900 mm
  • - Voltage: 400v – 50hz
  • - Compressed air: 6 bar
• Qualitative Machine Benefits:
  • - Machine entry section with heavy-duty steel frame
  • - Transport rollers with motor-driven frequency converter
  • - Integrated control cabinet
  • - Emergency safety systems
  • - Glue unit safety mesh
  • - Operator control panel for adhesive management
  • - Two 15 mm wide rollers per shaft, 240 mm diameter
  • - Quick positioning in 5 mm steps
  • - Air blowers & ionization for static and dust removal
  • - Automatic primer station with precise application
