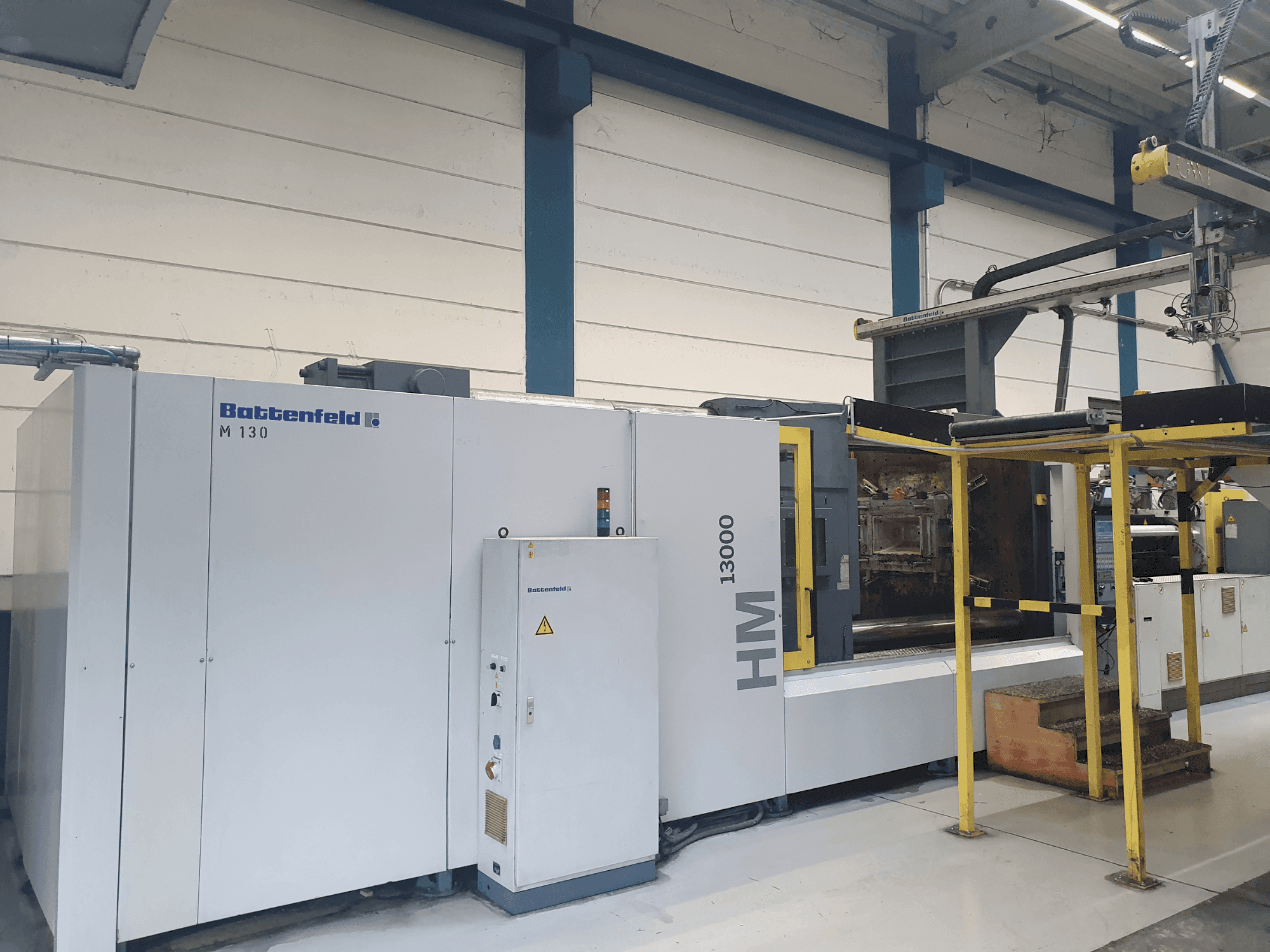

Front view of Battenfeld HM 13000/12000 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Battenfeld HM 13000/12000

Photo Gallery

Battenfeld - HM 13000/12000DE-INJ-BAT-2001-00002

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Plastics Processing Machinery
➤ Used Battenfeld HM 13000/12000 For sale | gindumac.com

Show in original language

This Battenfeld HM 13000/12000 was manufactured in 2001. A robust injection moulding machine featuring a Unilog 9000C control system, clamping force of 13,000 kN, and a screw diameter of 120 mm. It supports a maximum opening travel of 1650 mm and a total installed power of 257.9 kW. Ideal for large-scale production, the Battenfeld HM 13000/12000 machine we have for sale represents a significant opportunity. Contact us for more information.

Overview

brand: Battenfeld
year: 2001
MODEL: HM 13000/12000
production hours: 84131
application type: Injection Moulding
Location: Germany
machine type: Hydraulic Injection Moulding Machine

Technical Information - Battenfeld HM 13000/12000

Control Unit

Model: 9000C

Injection Unit

Screw diameter: 120 mm
Shot weight: 6,175 (PS), 4,816 (PP)
Stroke volume: 6782 CMM CM³
Injection pressure: 1765 bar

Clamping unit

Clamping force: 13000 kn
Opening stroke: 1650 mm
Distance between bars: Horizontal - 1600 mm; Vertical - 1200 mm
Mould height min: 500 mm
Mould height max: 1200 mm
Ejector stroke: 600 mm

Additional Information

Additional equipment

Handling equipment (excluding conveyor belts)
weight clamping side 82500 kg / weight Injection side 18500 kg

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
