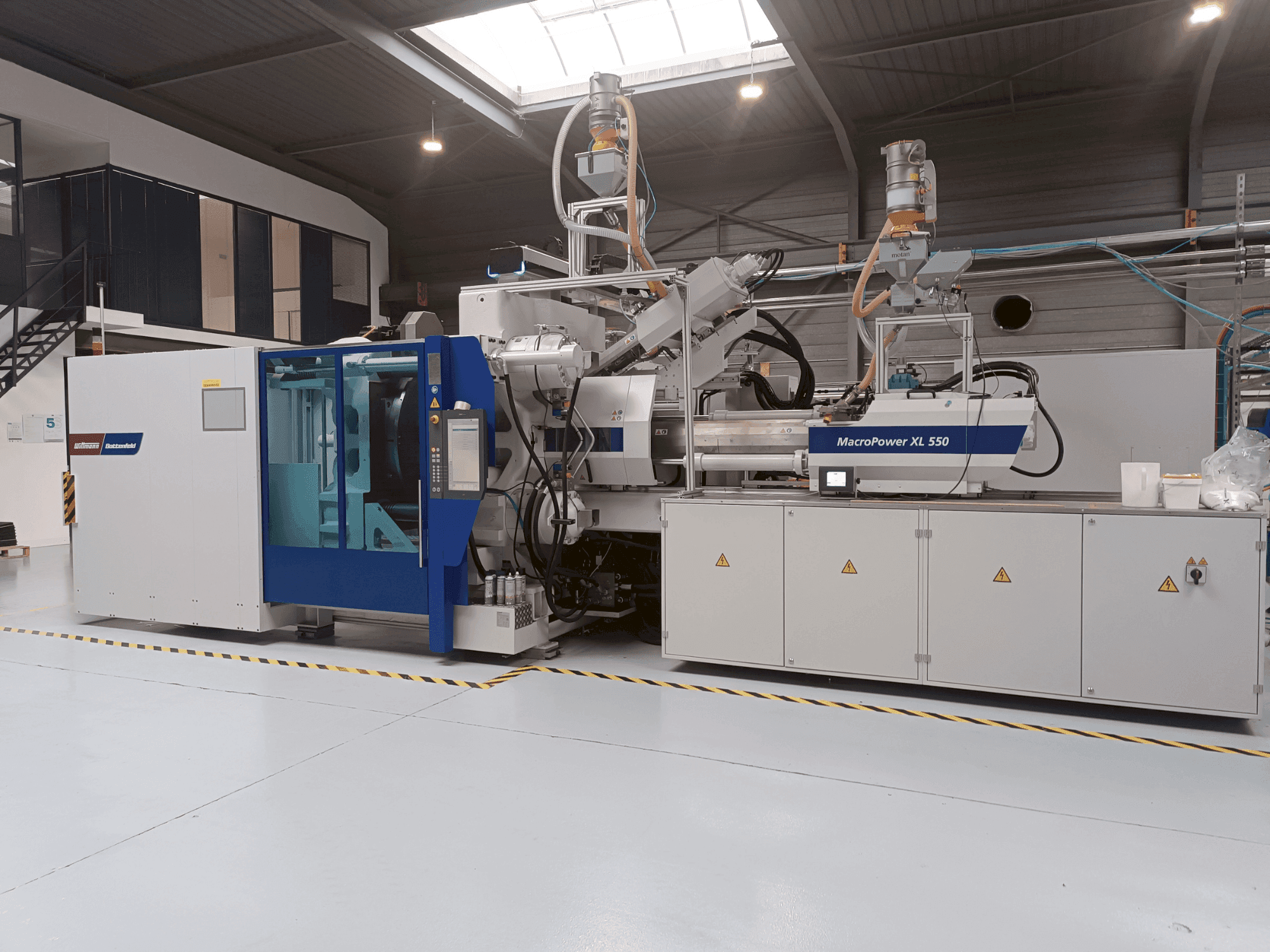

Front view of Battenfeld MacroPower 550XL 2250H-350S 3K machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Battenfeld MacroPower 550XL 2250H-350S 3K

Photo Gallery

Battenfeld - MacroPower 550XL 2250H-350S 3KFR-INJ-BAT-2018-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Plastics Processing Machinery
➤ Used Battenfeld MacroPower 550XL 2250H-350S 3K For sale

Show in original language

This injection moulding machine was manufactured in 2018. The Battenfeld MacroPower 550XL 2250H-350S 3K features a robust clamping force of 5500 kN and a screw diameter of 65mm for the main injection unit. It supports a maximum platen distance of 2050mm and an opening stroke of 1600mm. Ideal for diverse molding applications, the machine includes a rotary table and is equipped with comprehensive German documentation. Reach out for more information about this injection moulding machine.

Overview

brand: Battenfeld
year: 2018
MODEL: MacroPower 550XL 2250H-350S 3K
application type: Injection Moulding
Location: France
machine type: Hydraulic Injection Moulding Machine

Technical Information - Battenfeld MacroPower 550XL 2250H-350S 3K

Control Unit

Model: UNILOG B8

Injection Unit

Screw diameter: 65 mm
Shot weight: 981.0 g
Stroke volume: 1078 cm³
Injection pressure: 2070 bar

Clamping unit

Clamping force: 5500 kN
Opening stroke: 1600 mm
Distance between bars: 1120 x 970 mm
Mould height min: with/without turntable: 270 mm-450 mm
Mould height max: with/without turntable: 1179 mm-1359 mm
Size of mold platens: with/without turntable: 1870 mm - 2050 mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Injection unit 350l:screw diameter: 40 mm screw l/d ratio: 22 specific injection pressure: 1595 bar calculated stroke volume: 220 cm³ max. Injection weight (ps): 200. 2 g
- - Injection unit 350s:screw diameter: 40 mm screw l/d ratio: 22 specific injection pressure: 1595 bar calculated stroke volume: 220 cm³ max. Injection weight (ps): 200. 2 g
- - Voltage: 230/400v/3p+n-tn/tt 50hz
- - Documentation: german (including robot + conveyor + fences + rotary table)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
