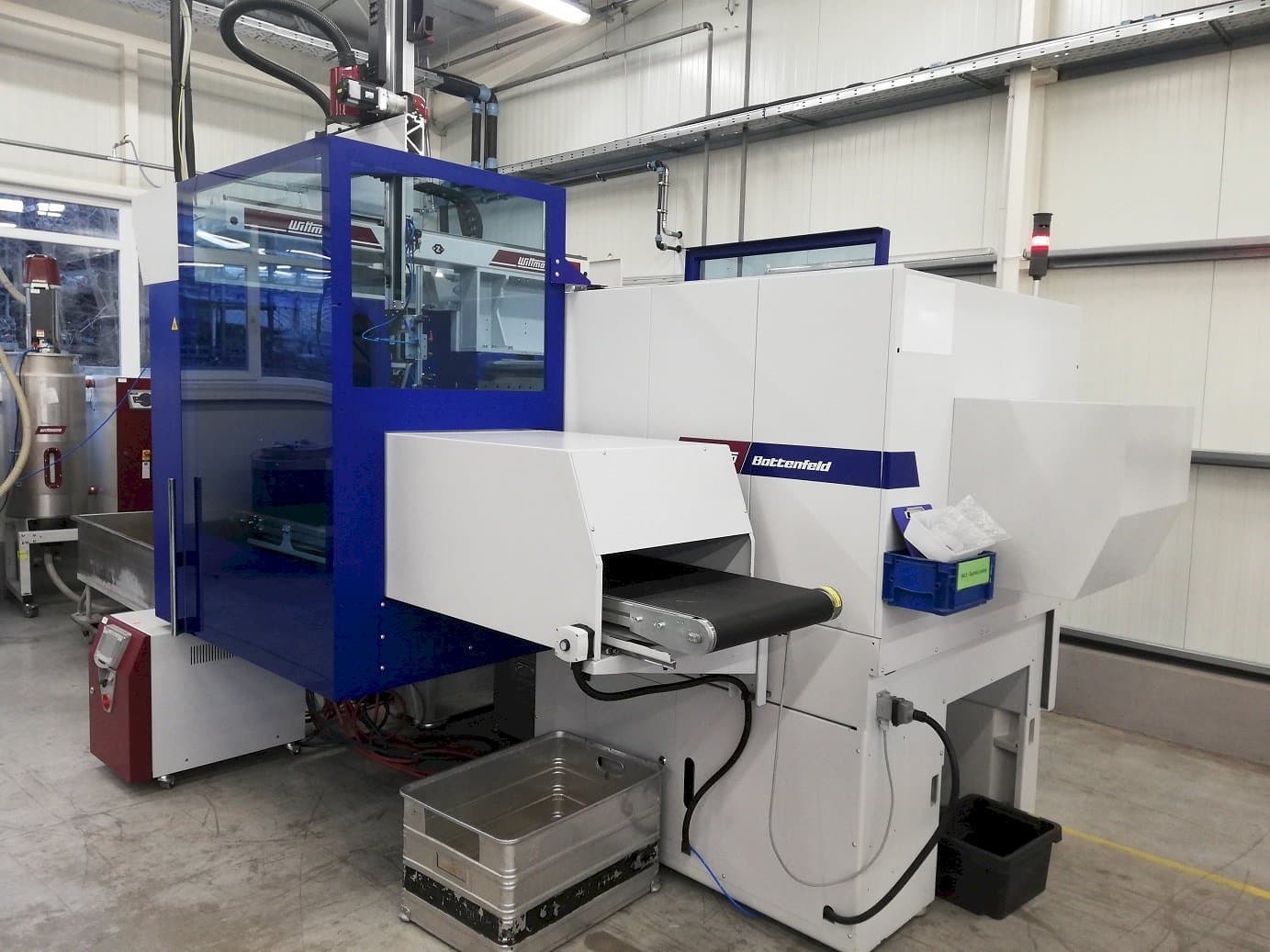

Battenfeld Smart Power 240/1330 Injection Moulding Machine

Show in original language

This Battenfeld Smart Power 240/1330 Injection Moulding Machine was manufactured in Germany in 2017. This machine is capable of working with a clamping force of 2400 kN and an injection pressure of 2041 bar. It counts with an injection unit of 1330. IThe maximum shotweights (g) are calculated by multiplying the theoretical shot volume (cm3) by the material factor. A Wittman robot, a conveyor belt and a plasticising unit are among some of the several additional equipment.

Overview

brand: Battenfeld
year: 2017
MODEL: Smart Power 240/1330
production hours: 2224
application type: Injection Moulding
Location: Hungary
machine type: Electrical Injection Moulding Machine
availability: Sold

Technical Information - Battenfeld Smart Power 240/1330

Injection Unit

Screw diameter: 55 mm
Stroke volume: 653 CM³
Injection pressure: 2041 bar

Clamping unit

Clamping force: 2400 kN
Opening stroke: 750 mm
Distance between bars: 670 x 620 mm
Mould height min: 350 mm

Additional equipment

- INSIDER EQUIPMENT PACKAGE
- WITTMAN ROBOT W 821/ Z:2000 / Y:1200 / X:550 PAYLOAD 10 KG
- TEACHBOX R8
- CONVEYOR BELT
- EUROPAKET 2 WITH HYDRAULIC CORE PULL
- HOT RUNNER CONTROL 4-FOLD INTEGRATED
- PLASTICIZING UNIT HIGHLY WEAR- AND CORROSION-RESISTANT

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Screws l/d ratio: 22
- - Max panel distance: 1100 mm
- - Injection unit 1330

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
