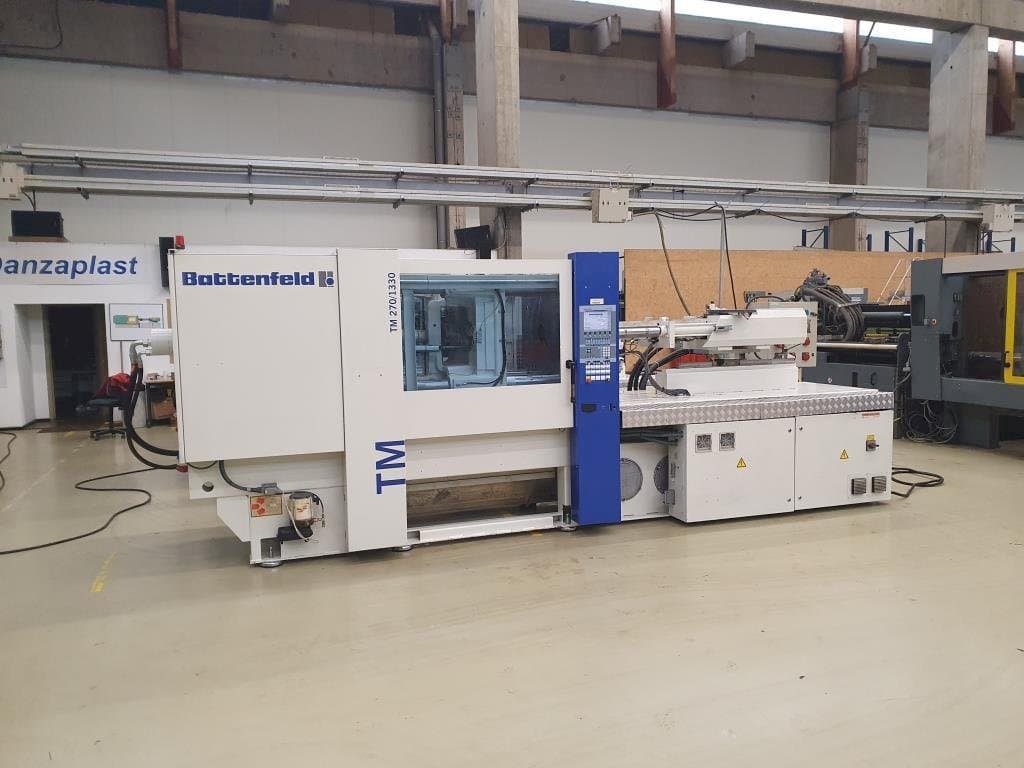

Battenfeld TM 2700 / 1330 B4 Injection moulding machine

Show in original language

This Battenfeld TM 2700 / 1330 B4 Injection moulding machine was made in 2006 in Austria and has 29624 production hours. The machine has a clamping force of 2700 kN. It includes a Robot Interface Euromap 67.

Overview

brand: Battenfeld
year: 2006
MODEL: TM 2700 / 1330 B4
production hours: 29624
application type: Injection Moulding
Location: Belgium
machine type: Hydraulic Injection Moulding Machine
availability: Sold

Technical Information - Battenfeld TM 2700 / 1330 B4

General Data

Measurements width: 1700 MM
Measurements depth: 5800 MM
Measurements height: 2300 MM
Machine weight: 10800 kg

Injection Unit

Screw diameter: 65 mm
Shot weight: 831 g
Stroke volume: 913 CM³
Injection pressure: 1461 bar
Plasticizing rate max.: 46,2 g/s
Screw speed: 207 1/min
Heating capacity: 20,9 kW
Adjustable heating zones: 1+4
Nozzle pressure: 100 kN

Clamping unit

Clamping force: 2700 kN
Opening stroke: 600 mm
Max open daylight: 1250 mm
Distance between bars: 630 mm x 630 mm
Mould height min: 250 mm
Mould height max: 650 mm
Size of mold platens: 940 mm x 940 mm
Ejector stroke: 600 mm
Ejector force for / back: 59 kN

Media

Pump drive power: 37 Kw
Oil tank: 550 L

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Tiebar pulling manual
- - 2 x core hydraulic
- - 2 x air valve
- - 16 x hotrunner controllers
- - Anti vibration pads
- - Robot interface euromap 67

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
