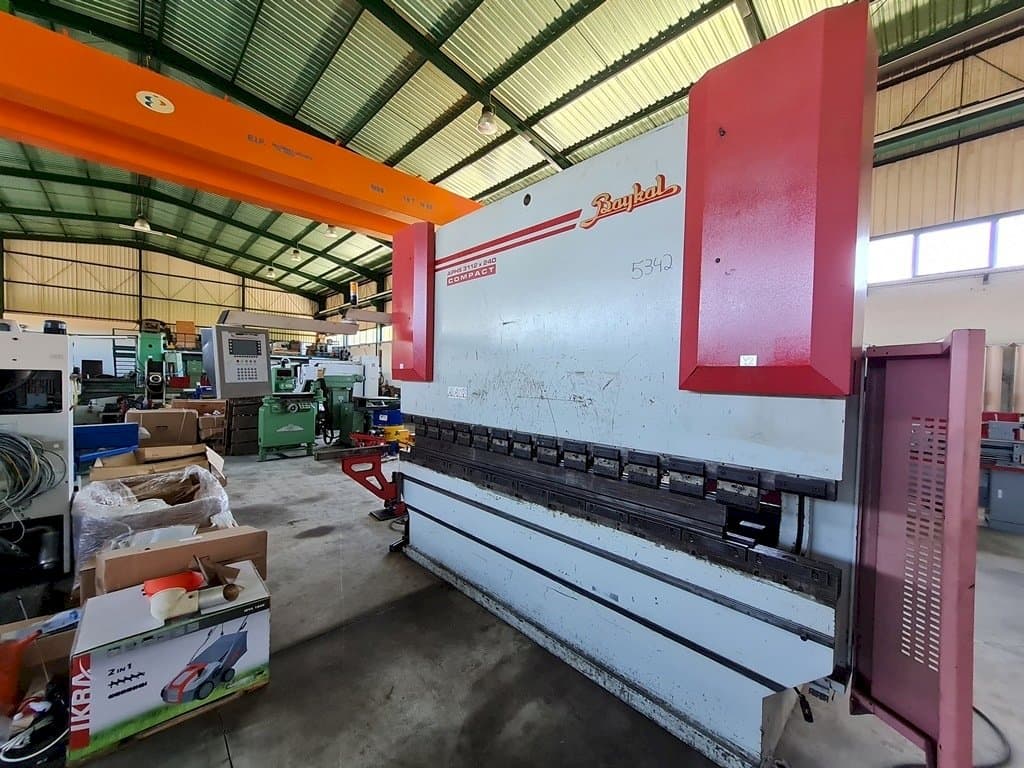

Front view of Baykal APHS 3112 x 240 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Baykal APHS 3112 x 240

Photo Gallery

Baykal - APHS 3112 x 240PT-BEN-BAY-2013-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Sheet Metal Machinery
Baykal APHS 3112 x 240 Bending Machine

Show in original language

This Baykal APHS 3112 x 240 Bending Machine from 2013 was built in Turkey. It has 5880 working hours. It works with a pressure force of 2400 kN, and a max. fold length 3100 mm. This 3 controlled axis machine performs with a working speed of 7.6 mm/min.

Overview

brand: Baykal
year: 2013
MODEL: APHS 3112 x 240
production hours: 5880
application type: Bending
Location: Portugal
machine type: Press Brake

Technical Information - Baykal APHS 3112 x 240

General Data

Measurements width: 3600 mm
Measurements depth: 1800 mm
Measurements height: 2800 mm
Machine weight: 11000 kg

Main drive

Pressing force: 2400 kn
Number of axis: 3

Table

Outer width: 90 mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Hydraulic / mechanic hydraulic
- - Backgauge x stroke in mm 700 mm
- - Power 18. 5 kw
- - Max. Fold length 3100 mm
- - Distance between column 2550 mm
- - 260 mm beam stroke
- - Troth beam 410 mm
- - Approximate speed 90 mm / min
- - Working speed 7. 6 mm / min.
- - Return feed 80 mm / min.
Qualitative Machine Benefits:
- - 3 cnc controlled axes

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
