Baykal APHS 31120 Bending Machine

Show in original language

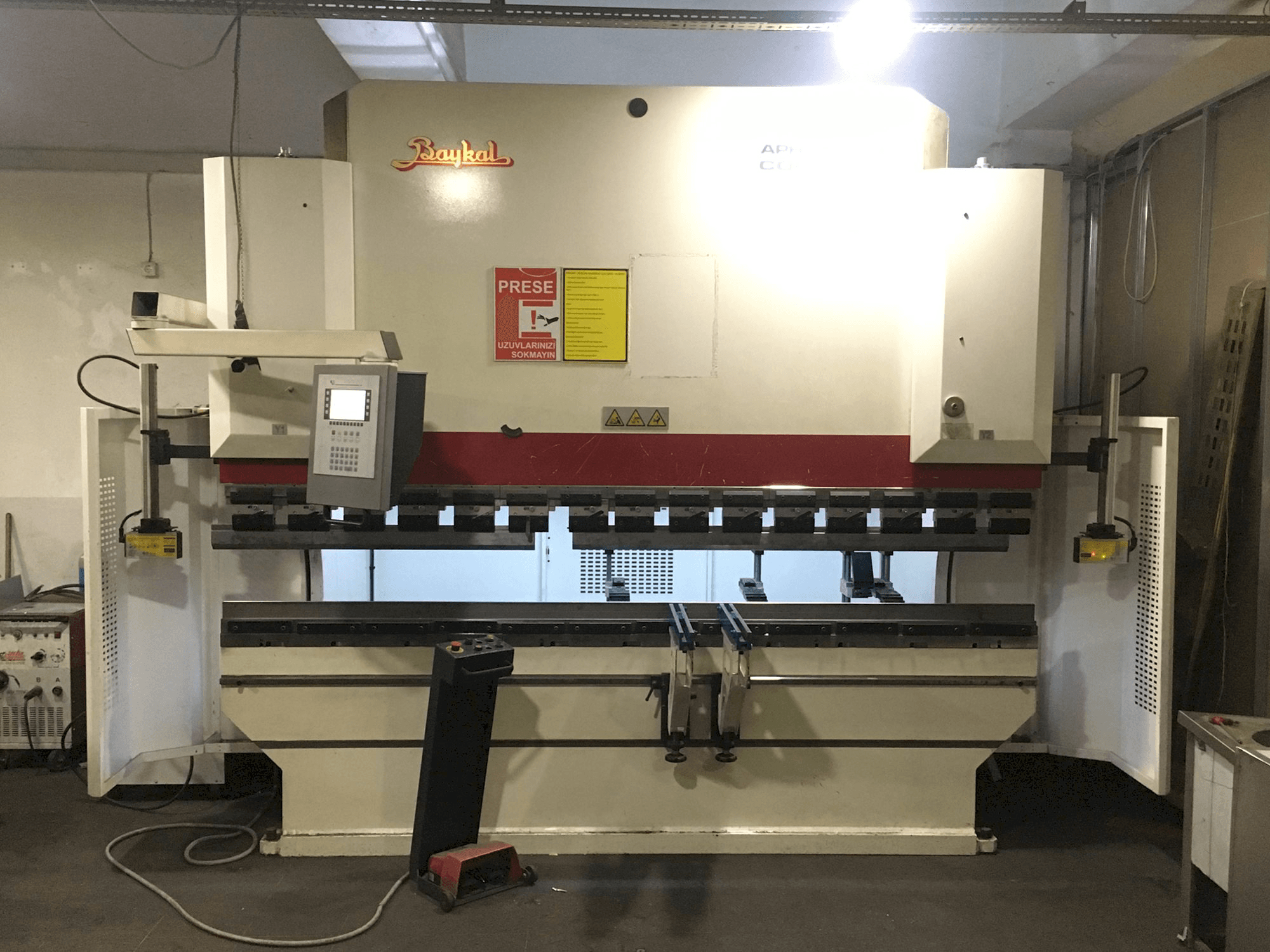

This Baykal APHS 31120 Bending Machine was built in 2015 in Turkey and has been operative for only 924 hours since then. Operated through an ESA S 530 Control unit, this machine performs with a pressing force of 120 kN. It stands out for having 3 axis with manual crowning. During the past, it has mainly worked with stainless steel.

Overview

brand: Baykal
year: 2015
MODEL: APHS 31120
production hours: 924
application type: Bending
Location: Turkey
machine type: Press Brake
availability: Sold

Technical Information - Baykal APHS 31120

General Data

Measurements width: 3550 mm
Measurements depth: 1800 mm
Measurements height: 2800 mm
Machine weight: 8400 kg

Control Unit

CNC main language: Turkish
CNC language customizable: Yes

Main drive

Pressing force: 120 kN
Bending length: 3100 mm

Max Material thickness

Steel: 6 mm

Media

Main electronic connection: 400 V / 50 Hz
Power consumption: 11 kVA

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
