- ➤ Used Baykal BLE PRO 1530 For Sale | gindumac.com

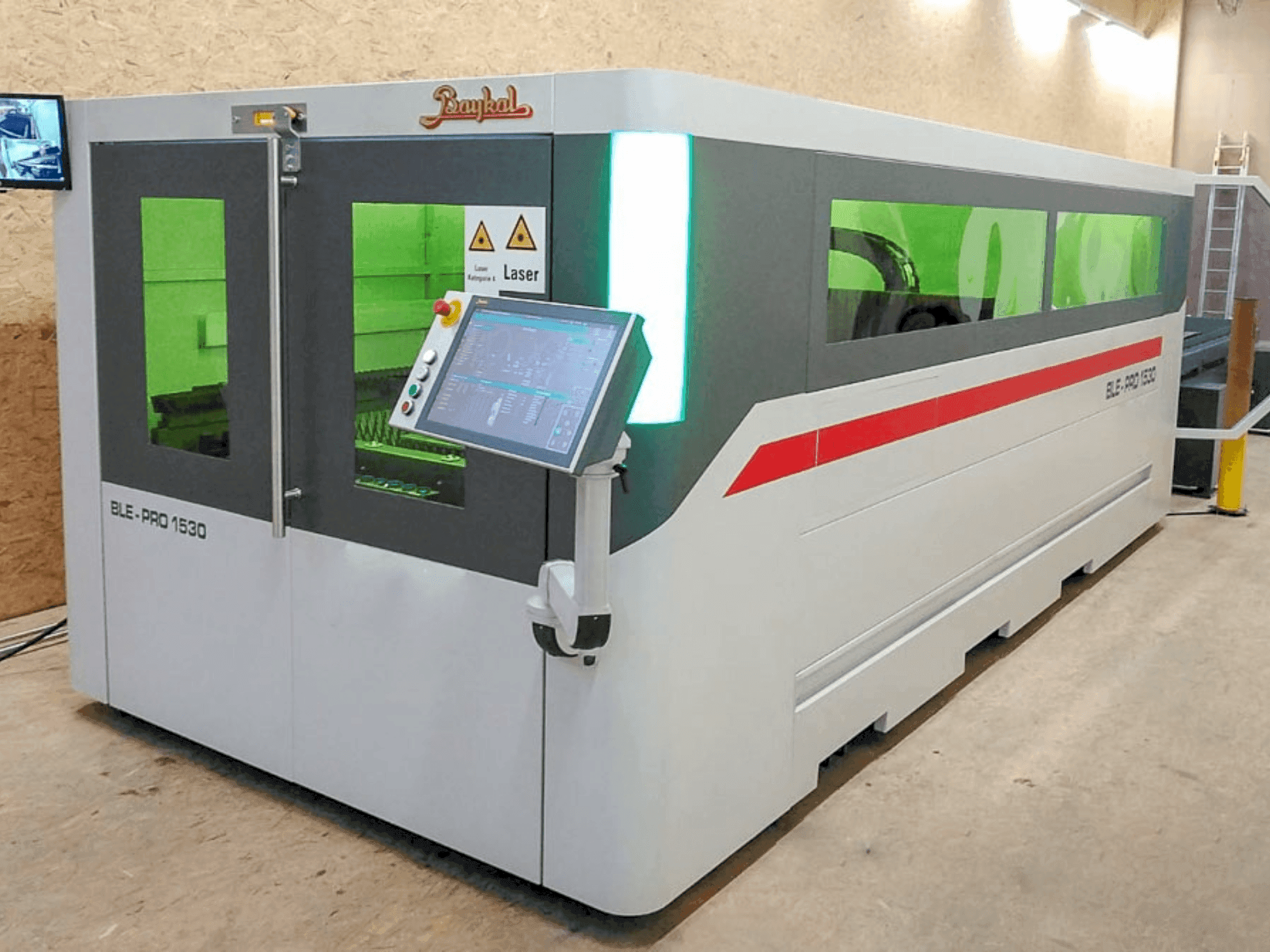

This 3-axis Baykal BLE PRO 1530 was manufactured in 2022. It features a 4kW nLIGHT alta fiber laser source, Precitec cutting heads, and a BECKHOFF CNC control unit. The machine offers a maximum cutting width of 1500 mm and length of 3000 mm, with rapid traverse speeds up to 95 m/sec. Ideal for precision cutting, the Baykal BLE PRO 1530 fiber laser cutting machine we have for sale is equipped with dual circuit water cooling and an air-conditioned electrical cabinet. Contact us for more information.
Overview
- brand: Baykal
- year: 2022
- MODEL: BLE PRO 1530
- application type: Cutting
- Location: Hungary
- machine type: Fiber Laser Cutting Machine
- control unit brand: BECKHOFF
Technical Information - Baykal BLE PRO 1530
Control Unit
- Control Brand: BECKHOFF
Dimensions
- Machine Depth: 3000 mm
Movement
- Number of Axes: 3
Technical Specification
- Laser Power: 4 kW
Additional Information
Additional equipment
- Precitec cutting heads
- nLIGHT alta fiber laser source
- Autofocus cutting head Precitec ProCutter 2.0
- Built-in sectional dust and smoke extraction 4000 m3/h
- 2 camera surveillance system
- UPS uninterruptible power source
- Nesting software: Lantek Expert Cut II/ Metalix Autonest Pro (option)
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
