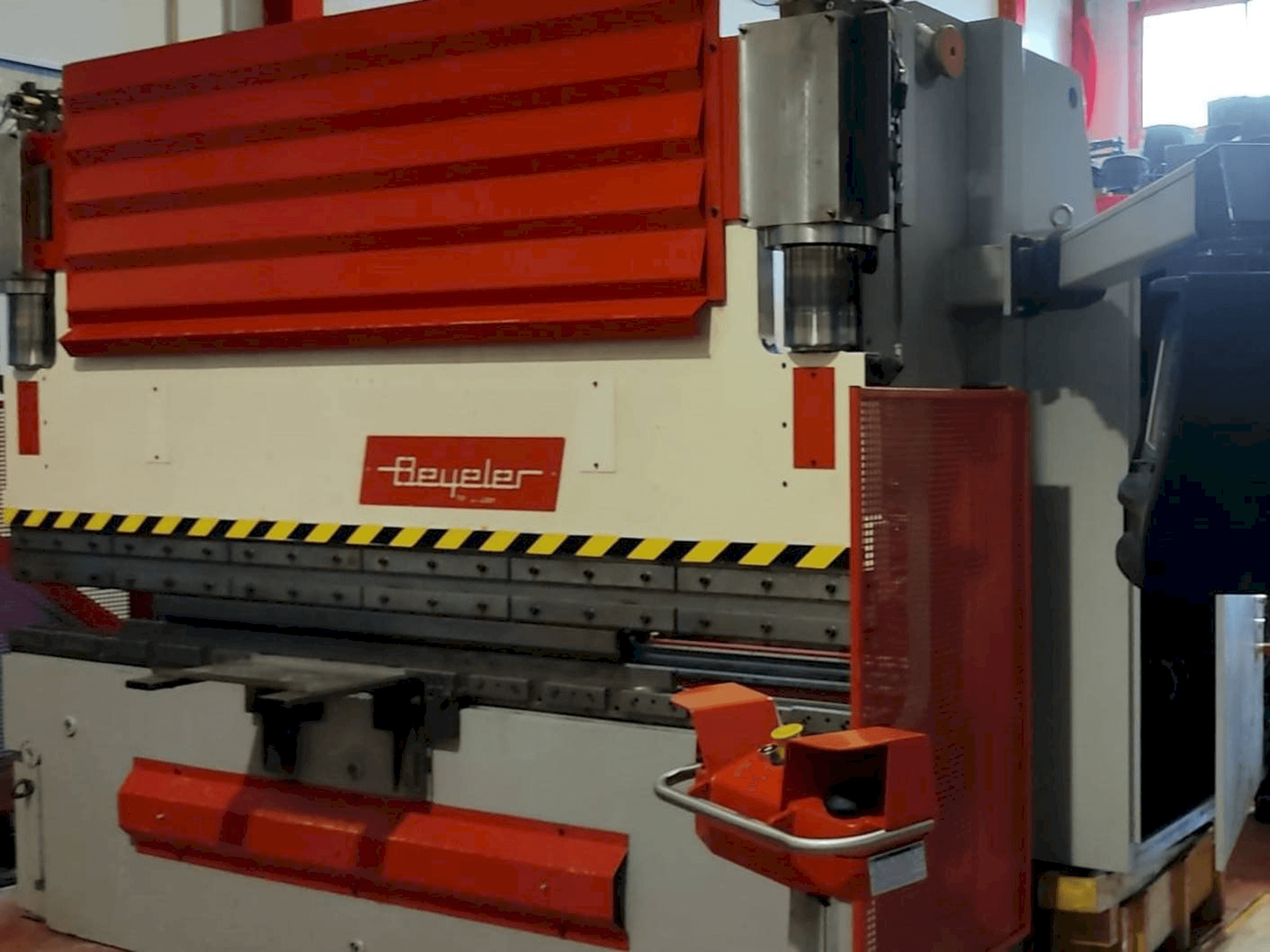

This BEYELER PR6 1500 x 3100 Bending Machine was manufactured in 2000. It is operated through a CYBELEC DNC 880 Control unit. This machine offers 1500 kN of pressing force and 3100 mm of bending length.
Overview
- brand: BEYELER
- year: 2000
- MODEL: PR6 1500 x 3100
- application type: Bending
- Location: Spain
- machine type: Press Brake
- control unit brand: CYBELEC
Technical Information - BEYELER PR6 1500 x 3100
Control Unit
- Control Brand: CYBELEC
- Control Model: DNC 880
Dimensions
- Machine Weight: 9200 kg
Movement
- Number of Axes: 6
Technical Specification
- Bending Length: 3100 mm
- Pressing Force: 1500 Kn
Additional Information
Machine Benefits
Qualitative Machine Benefits
- X axis: speed 400 mm/s. X axis: travel 660 mm
- R axis: speed 120 mm/s r axis: travel 220 mm
- Z1/z2 axis: speed 500 mm/s z1/z2 axis: travel 2750 mm
Technical Machine Benefits
- Control to y1/y2/x/r/z1/z2 axes and compensation
- Promecan punch clamping
- Promecan matrix and center groove tie-downs
- Distance between uprights 2800 mm
- Maximum course 215 mm
- Maximum opening (without intermediates) 480 mm
- Gooseneck 410 mm
- Electric motor power: 7. 5 kw
- Approach speed 120 medium 200 maximum mm/s
- Working speed 9 mm/s return speed 120 mm/s
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
