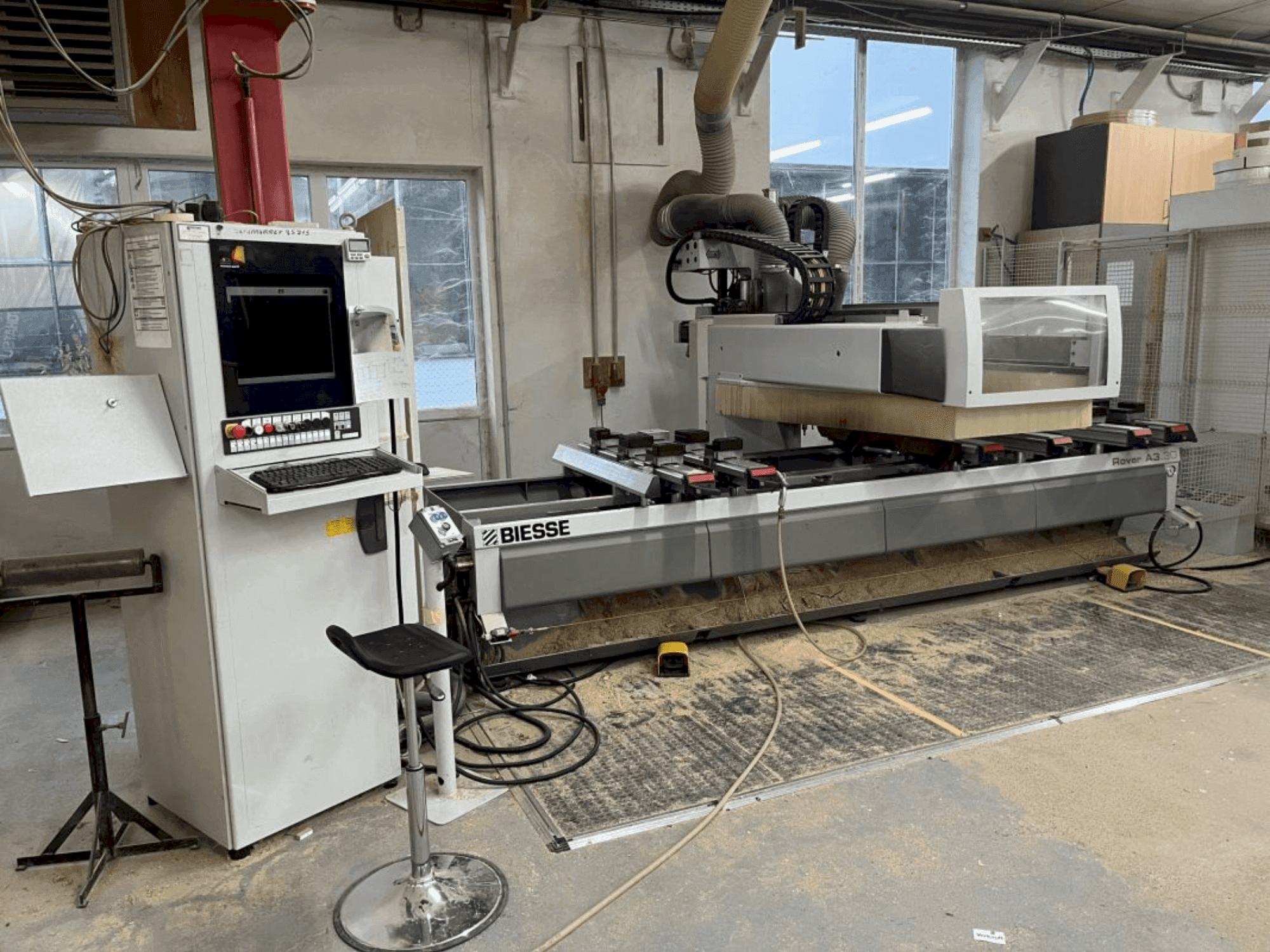

BIESSE - ROVER ADE-CNC-BIE-2007-00001

Additional equipment

• - Control cabinet: the machine can be supplied with 380/400/414 V - 50/60 Hz

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Working range: x = 3060 mm, y = 1260 mm, z = 150 mm
  • - The axes are guided on a linear guide with recirculating ball bearings
  • - Automatic lubrication system

Extra information

• - Includes converter for electrospindles with max. power of 14 kW Workpiece 6 ATS workpiece supports - L = 1200 mm 6 stops with 115 mm stroke, pneumatically lowerable CNC-controlled, Ø 22 mm 6 stops with 115 mm stroke positioned at 970 mm from the rear, pneumatically lowerable CNC-controlled, Ø 22 mm 4 lateral stops with 115 mm stroke complete with pneumatic equipment, can be lowered pneumatically CNC-controlled, Ø 22 mm 4 removable centre stops with 115 mm stroke incl. control, pneumatically lowerable CNC-controlled, Ø 22 mm 12 narrow part clamps Pneumatic pre-equipment for positioning aid 4 positioning aids (each positioning aid can carry 36 kg) 18 vacuum modules 132 x 146 x H48 mm (each module can be easily removed and rotated on the module carrier with 15° spacing) Preparation for chip conveyor belt integrated in the machine bed Vacuum system Vacuum pump 90 m3/h at 50 Hz, 108 m3/h at 60 Hz Auxiliary vacuum system Tools 7 kW (9.5 HP) Electrospindle with ISO 30 adapter 6.6 kW (9 HP), 12000 rpm Insert S1 7 kW (9.5 HP) 12000 rpm Insert S6 Rotational speeds from 1000 - 24000 rpm NC programmable BH 21L drilling head equipped with 21 independent tools Grooving saw in X-direction, diameter 120 mm (cutting depth max. 25 mm) Turret tool magazine with 10 places Max. Ø when fully loaded (10 tools): 120 mm Max. total weight: 40 kg
