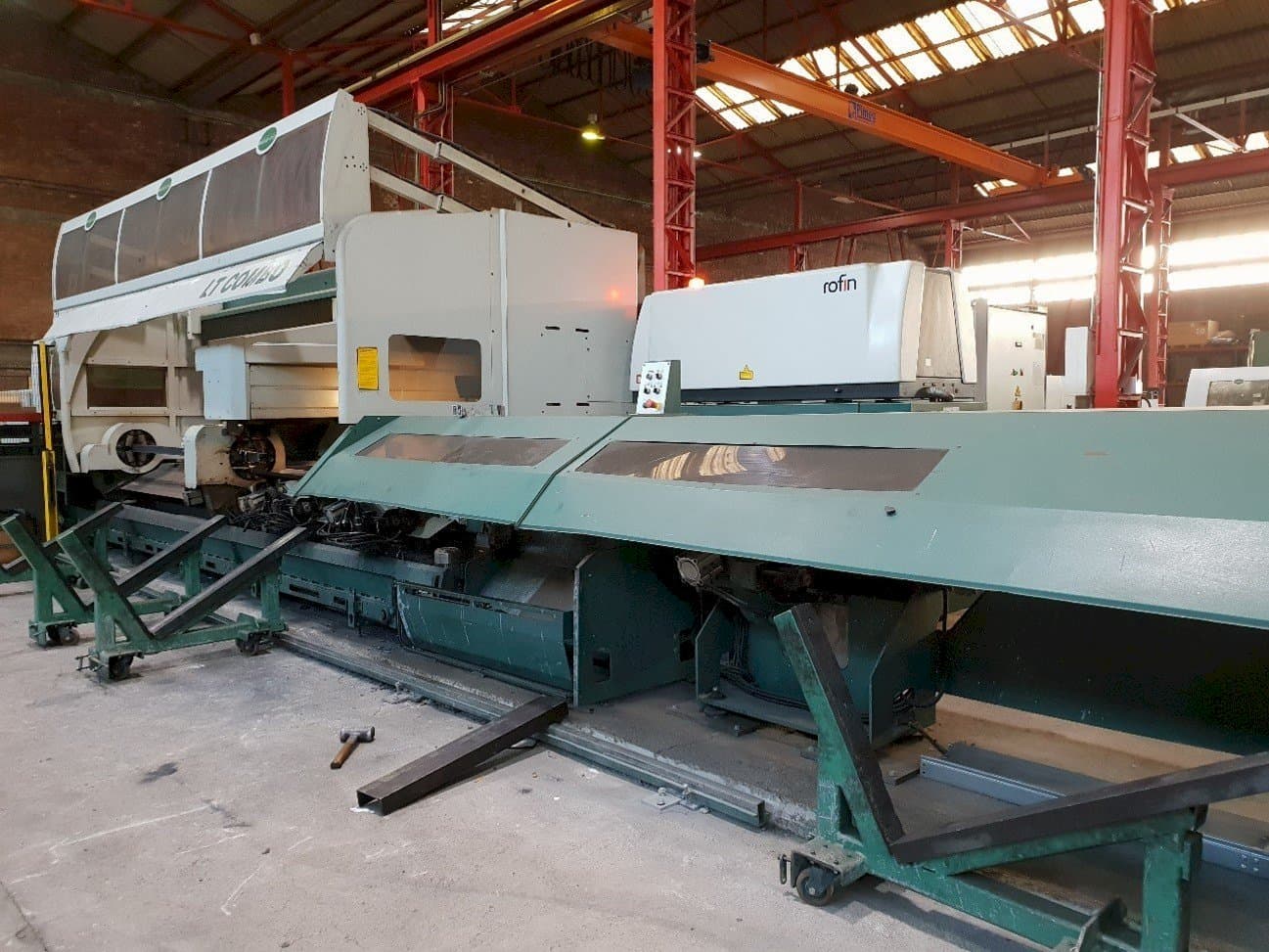

BLM ADIGE-SYS LT COMBO Laser Cutting Machine

Show in original language

This BLM ADIGE-SYS LT COMBO Laser Cutting Machine was made in 2010 in Italy and has been operative for 18000 hours. Operated through a SIEMENS SINUMERIK 840D Control unit, this machine can work with a laser power of 25 kW. This machine stands out for cutting tubes up to 12500 mm, from where the finished piece comes out up to 9000mm.

Overview

brand: BLM
year: 2010
MODEL: ADIGE-SYS LT COMBO
production hours: 18000
application type: Cutting
Location: Spain
machine type: Tube Cutting Machine
availability: Sold
control unit brand: SIEMENS

Technical Information - BLM ADIGE-SYS LT COMBO

General Data

Measurements width: 24296 mm
Measurements depth: 7119 mm
Machine weight: 25300 kg

Control Unit

Model: SINUMERIK 840D
CNC main language: Spanish
CNC language customizable: Yes
Brand: SIEMENS

Main drive

Laserpower: 25 kW

Media

Main electronic connection: 400 V
Pump drive power: 70 bar
Power consumption: 25 kVA

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Bar length 12500 mm, max. Length of finished piece 9000 mm
- - Round cross-section 225 mm (max cutting)
- - Square cross-section 160 x 160 mm (max cutting)
- - Rectangular section 200 x 100 mm (max cutting)
- - Round cross-section 60 mm (min cutting)
- - Square section 60x60 mm (min cutting)
- - Rectangular section 60x60 mm (min cutting)
Qualitative Machine Benefits:
- - Laser cavity was changed at the beginning of 2016

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
