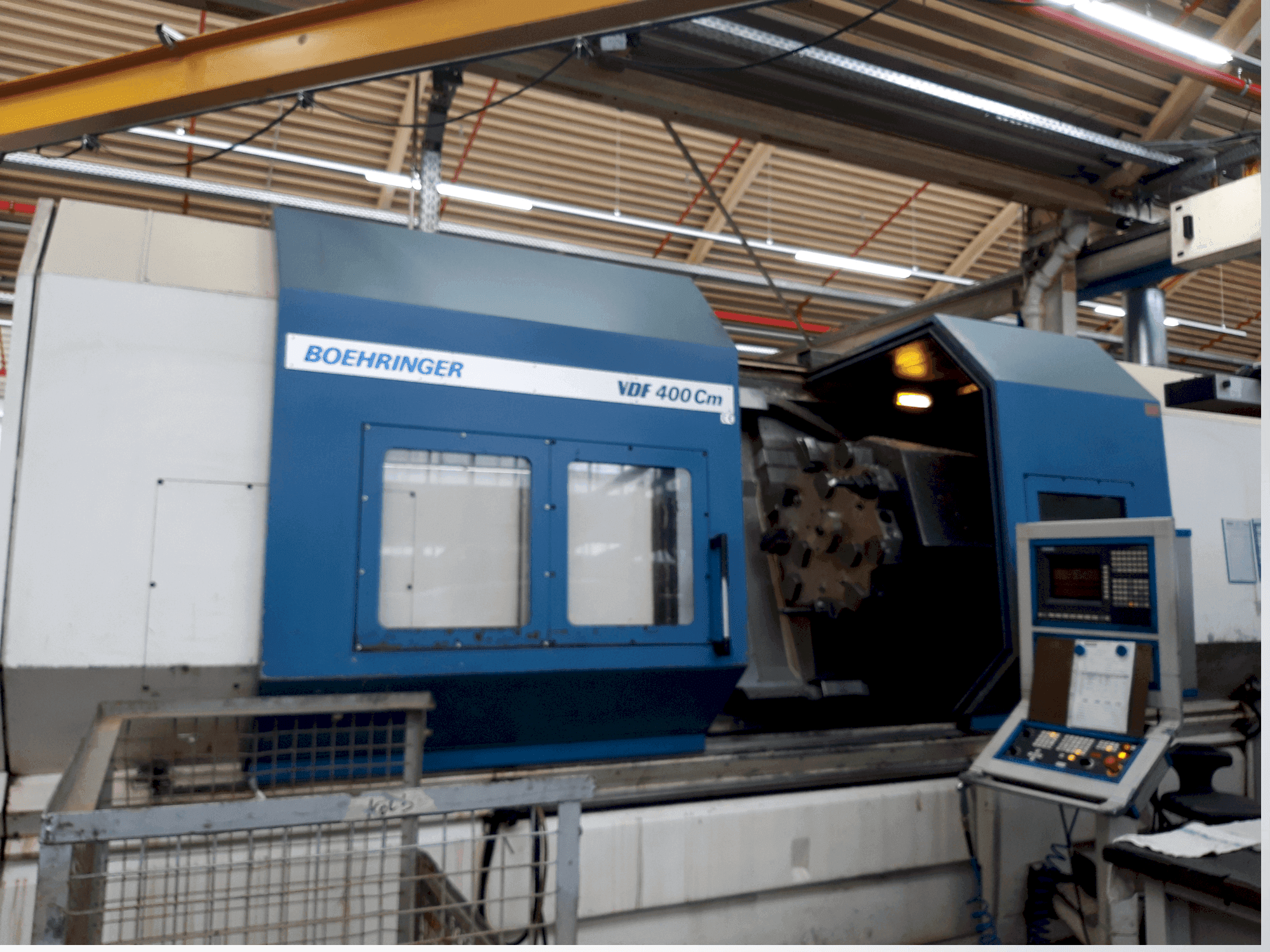

Front view of BOEHRINGER VDF 400 CM machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

BOEHRINGER VDF 400 CM

Photo Gallery

BOEHRINGER - VDF 400 CMDE-TUR-BOE-1998-00002

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used BOEHRINGER VDF 400 CM Lathe For sale | gindumac.com

Show in original language

This Lathes was manufactured in 1998. The BOEHRINGER VDF 400 CM features a Siemens Sinumerik 840 C control, a spindle bore of 132 mm, and a maximum turning diameter of 700 mm. It includes a high-capacity coolant system and an integrated chip conveyor for efficient operation. Ideal for those looking to buy this BOEHRINGER VDF 400 CM Lathes. Contact us for more information.

Overview

brand: BOEHRINGER
year: 1998
MODEL: VDF 400 CM
production hours: 0
application type: Turning
Location: Germany
machine type: Horizontal Turning Machine
control unit brand: SIEMENS

Technical Information - BOEHRINGER VDF 400 CM

General Data

Measurements width: 3420 mm
Measurements depth: 5365 mm
Measurements height: 2855 mm
Machine weight: 23000 kg

Control Unit

Brand: SIEMENS
Model: Sinumerik 840 C

Main drive

Spindle speed range: 7-2000 rpm 1/MIN
Spindle motor power: 65 kW (max, 60% ED)
Spindle bore: 132 mm

Workpiece

Workpiece drm over bed: 785/750/750 mm

Additional equipment

- Chip conveyor: integrated longitudinally with a discharge height of 1250 mm
- Coolant device: large capacity tank (min. 340 l), high delivery rate (40 l/min at 1 bar)
- the chuck is included in the accessories, it is a Röhm KFD-AF 500/3 chuck.
- C axle available

Additional Information

Machine Benefits

Technical Machine Benefits:
- - High feed force
- - Dynamic ac servo motor per axis
- - Collision protection for drive elements
- - Programmable coolant supply for each tool
- - Turning length in mm 2000.
- - Swing diameter above the bed in mm 750.
- - Traverse path of the bed slide 2224.
- - Turning length of 2000 mm.
Qualitative Machine Benefits:
- - Simple maintenance and installation of chip conveyor
- - High coolant delivery rate supports modern cutting and drilling tools
- - The machine has a functioning and stable steady rest

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
