BOEHRINGER VDF DUS 1000 lathe

Show in original language

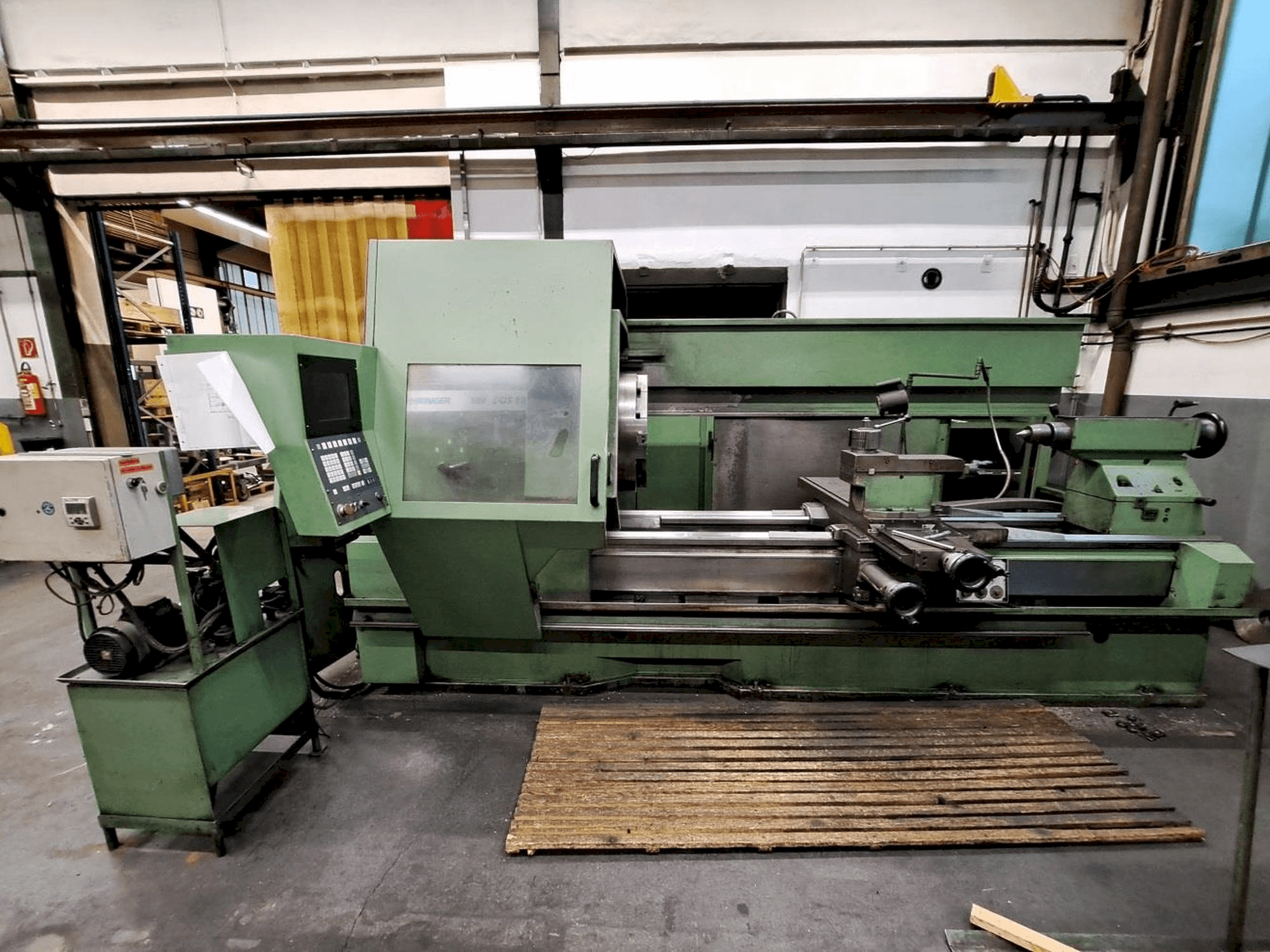

This BOEHRINGER VDF DUS 1000 lathe was made in the year 1993. It is equipped with a Siemens SINUMERIK control unit. The machine has a turning diameter over bed of 1000 mm and a turning diameter over cross slide of 710 mm.

Overview

brand: BOEHRINGER
year: 1993
MODEL: VDF DUS 1000
application type: Turning
Location: Poland
machine type: Horizontal Turning Machine
availability: Sold
control unit brand: SIEMENS

Technical Information - BOEHRINGER VDF DUS 1000

General Data

Measurements width: 5800 mm
Measurements depth: 2050 mm
Measurements height: 2250 mm
Machine weight: 10000 kg

Control Unit

Model: SINUMERIK
Brand: SIEMENS

Media

Main electronic connection: 400 V / 50Hz
Power consumption: 60 kVA

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Turning diameter over bed: 1000 mm
- - Turning diameter over cross slide: 710 mm
- - Length between centers: 3300 mm
- - Spindle taper: kk 11 din 55027
- - Spindle bore: 128 mm
- - Bed width: 560 mm
- - Turning speed range: 6. 3 - 1600 u/min
- - Feed rate: 0. 01 - 50 mm/u
- - Feed rate - longitudinal / frontal : 20 / 12. 5 m/min
- - 3-jaw chuck diameter: 500 mm
Qualitative Machine Benefits:
- - Quick-change tool holder: multifix type d
- - Drive power - spindle motor: 46 kw
- - Drive power, 60 % ed 46 kw
- - Torque, 60 % ed max nm 5300
- - Taper: taper in sleeve: mk 6
- - Tailstock: diameter: 125 mm
- - Tailstock: pen stroke: 280 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
