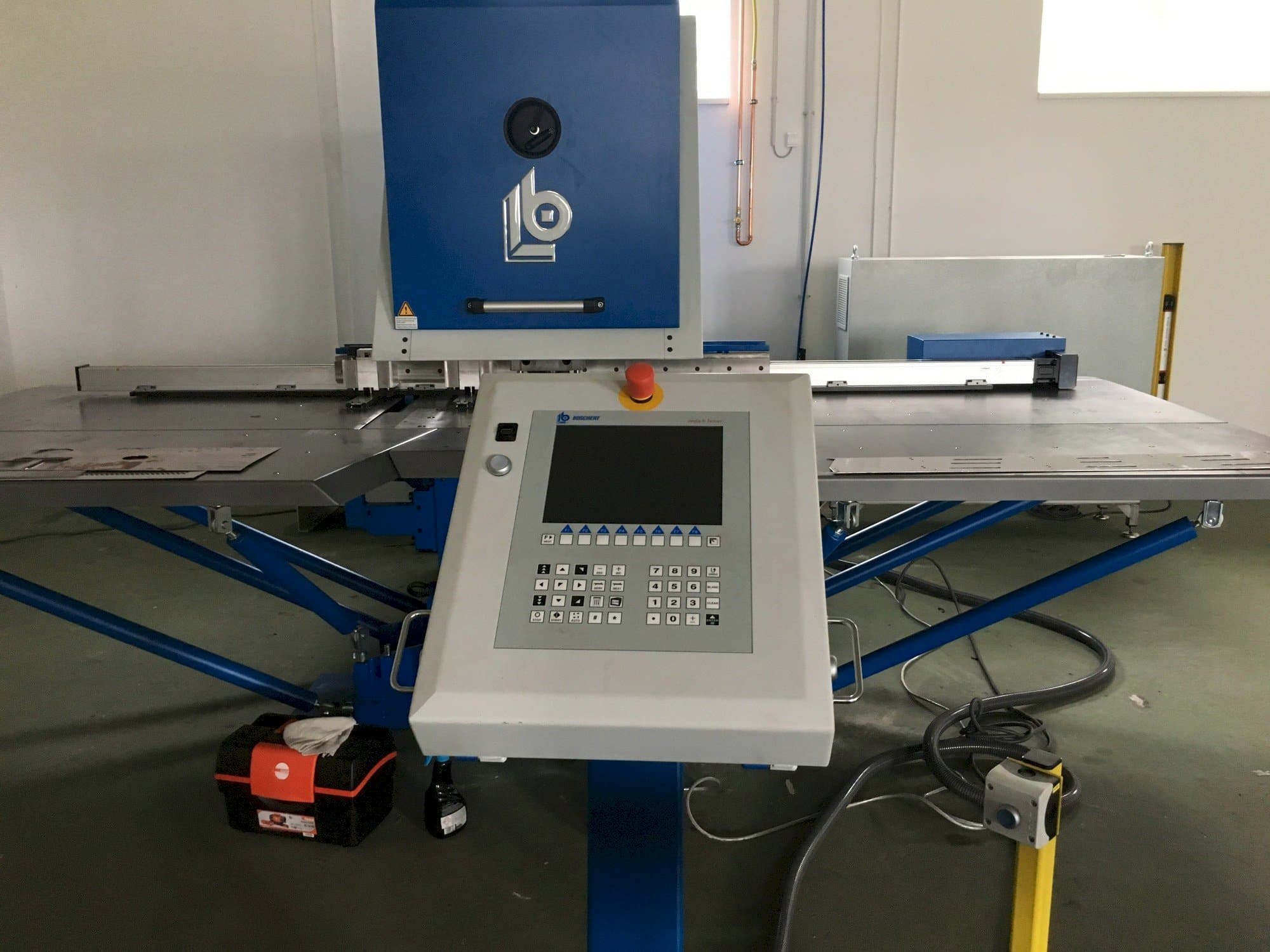

BOSCHERT Compact 750 Punching machine

Show in original language

This BOSCHERT Compact 750 Punching machine was manufactured in 2018. It has a table size of 750 mm (X-axis) and 2000 mm (Y-axis) and a punching depth of 750 mm with a maximum punching diameter of 105 mm. This punching machine is equipped with a punching force of up to 40 tons. Maximum cutting thickness for normal steel is at 6mm. It is build in a C-frame construction with appropriate oversizing. The cantilever structure allows for machining of parts larger than the machining space.

Overview

brand: BOSCHERT
year: 2018
MODEL: Compact 750 (2018)
production hours: 40
application type: Punching
Location: Hungary
machine type: Turret Punch Press

Technical Information - BOSCHERT Compact 750 (2018)

General Data

Measurements width: 4000 mm
Measurements depth: 3165 mm
Measurements height: 2100 mm
Machine weight: 14500 kg

Main drive

Punching force: up to 40 tons KN
Main motor power: 18 kW

Movement

X-AXIS Movement: 750 mm
Y-AXIS Movement: 2000 mm

Media

Oil tank: 115 l

Additional Information

Additional equipment

Stripper holder with slots for pins
Punch adjustment ring for punches up to diam. 30mm
Punch adjustment ring for punches over diam. 30mm
Punch holder for needles up to 6mm
Punch holder for needles up to 10.5mm
Punch adjustment unit for rectangle. oblong and square tools

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
