BOSCHERT - EL 500 DigitalPL-PUN-BOS-2015-00001
Sold
Do you have further questions? Contact us.
Sergi Guardia
+49 162 4027635
s.guardia@gindumac.com
Click to chat on WhatsApp
- GINDUMAC
- Products
- Sheet Metal Machinery
- BOSCHERT EL 500 Digital Punching machine
Show in original language

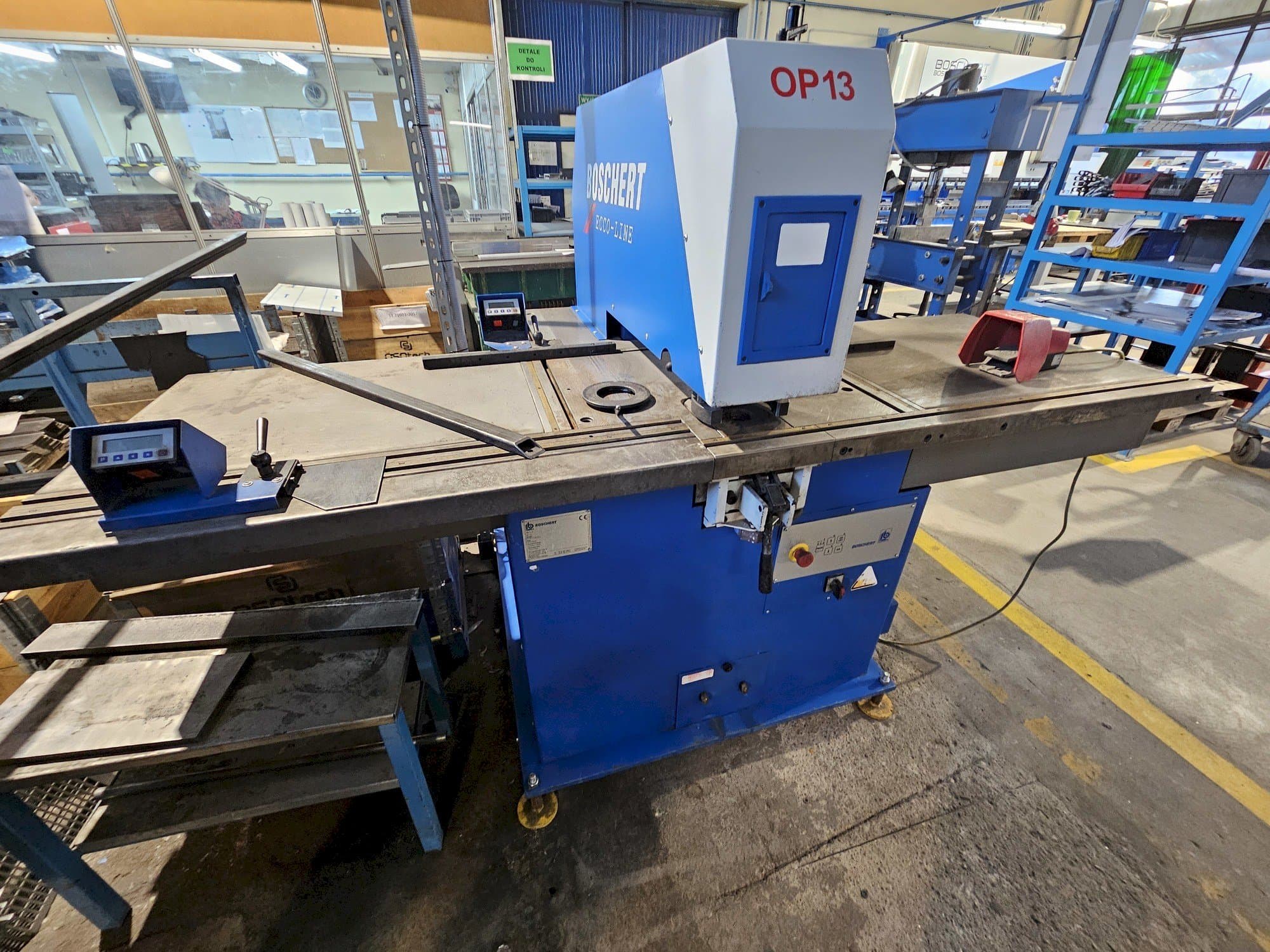

This BOSCHERT EL 500 Digital Punching machine was manufactured in the year in Germany. It is equipped with a Boschert control unit. The machine has a punching force of 280 kN.
Overview
- brand: BOSCHERT
- year: 2015
- MODEL: EL 500 Digital
- application type: Punching
- Location: Poland
- machine type: Turret Punch Press
- control unit brand: BOSCHERT
Technical Information - BOSCHERT EL 500 Digital
Control Unit
- Control Brand: BOSCHERT
Dimensions
- Machine Depth: 1580 mm
- Machine Height: 1540 mm
- Machine Weight: 2500 kg
Technical Specification
- Punching Force: 280 Kn
Additional Information
Machine Benefits
Qualitative Machine Benefits
- 3 types of operation: setting, single stroke, continuous stroke
Technical Machine Benefits
- Working area: 570 x 1200 mm
- Machine frame reach (y-axis): 500 mm
- Economical, rigid construction
- Easy access to the tool station for retooling
- Capability to mount tools up to Ø 105 mm in size
- Max material thickness for processing up to 12. 7 mm
- Standard trumpf tool system providing short retooling time of about 15 s
- Extended head stroke allowing punching of holes in profiles
- T-slots along with a built-in ruler in the machine table enable precise basing of the material being processed
- Passive and active scraper system
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
