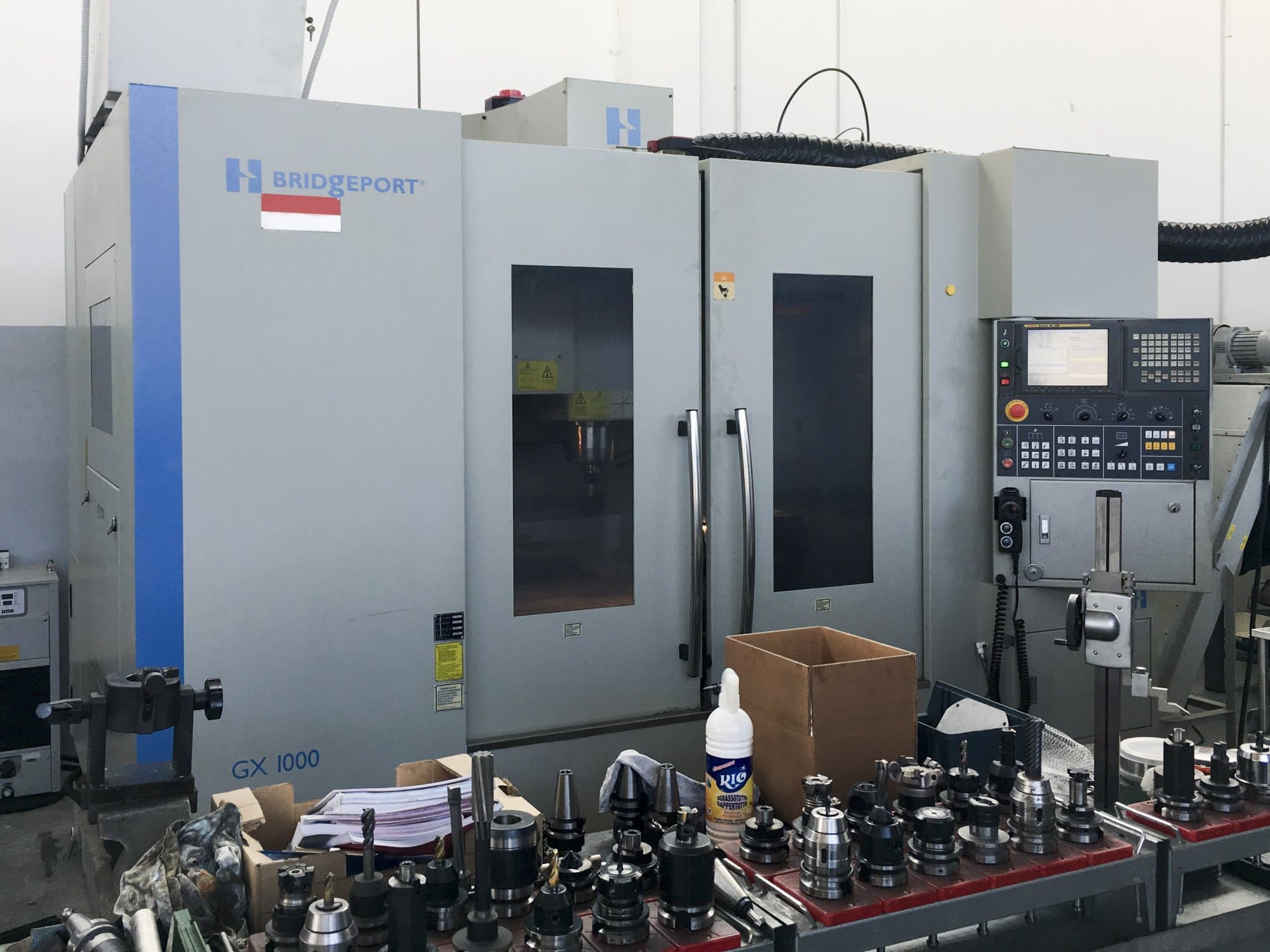

Front view 1 of Bridgeport GX 1000 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Bridgeport GX 1000

Photo Gallery

Bridgeport - GX 1000IT-MIL-BRI-2007-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Bridgeport GX 1000 Machining Center

Show in original language

This Bridgeport GX 1000 Machining Center was manufactured in Taiwan in 2007 and has a working record of 11771 production hours ever since. Operated through a FANUC 18i-MB control unit, in the past this machine has handled mostly aluminium.

Overview

brand: Bridgeport
year: 2007
MODEL: GX 1000
production hours: 11771
application type: Milling
Location: Italy
machine type: Vertical Machining Centre
control unit brand: FANUC

Technical Information - Bridgeport GX 1000

General Data

Measurements width: 4210.9 mm
Measurements depth: 2137 mm
Measurements height: 2712.7 mm
Machine weight: 7170 kg

Control Unit

Model: 18i-MB
Brand: FANUC

Main drive

Spindle speed range: 12000 1/min
Spindle motor power: 26 kW

Movement

X-AXIS Movement: 1020 mm
X-AXIS Working Feed: 10 m/min
X-AXIS Feed Force: 36 m/min
Y-AXIS Movement: 540 mm
Z-AXIS Movement: 490 mm

Workpiece

Workpiece weight: 700 kg

Table

Min distance between vertical spindle and table: 145 mm
Max distance between vertical spindle and table: 685 mm

Tools

Slots in storage: 30
Max weight: 6 kg
Max tool diameter: 76 mm
Max tool length: 300 mm

Media

Main electronic connection: 220 V / 60 Hz

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
