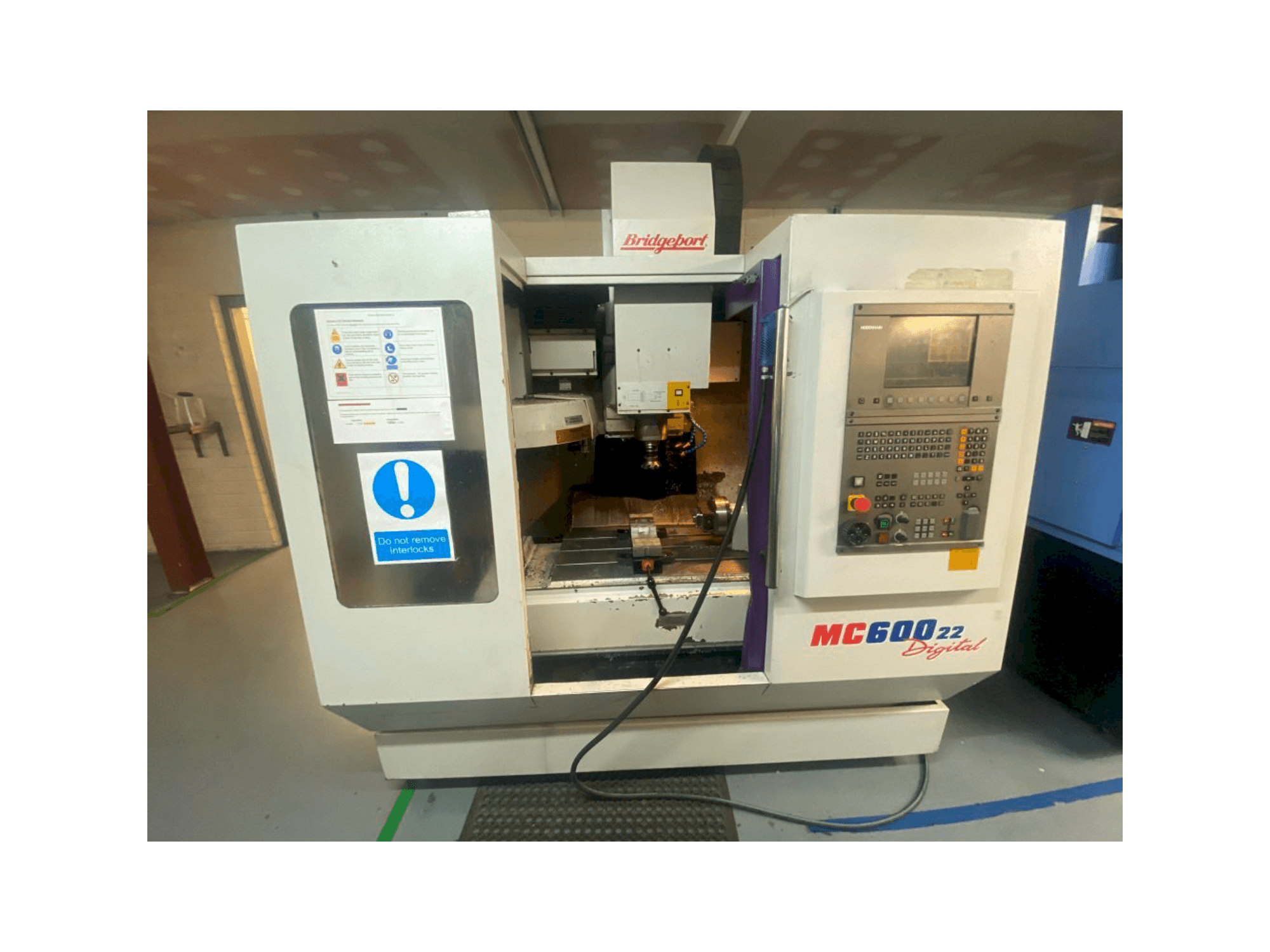

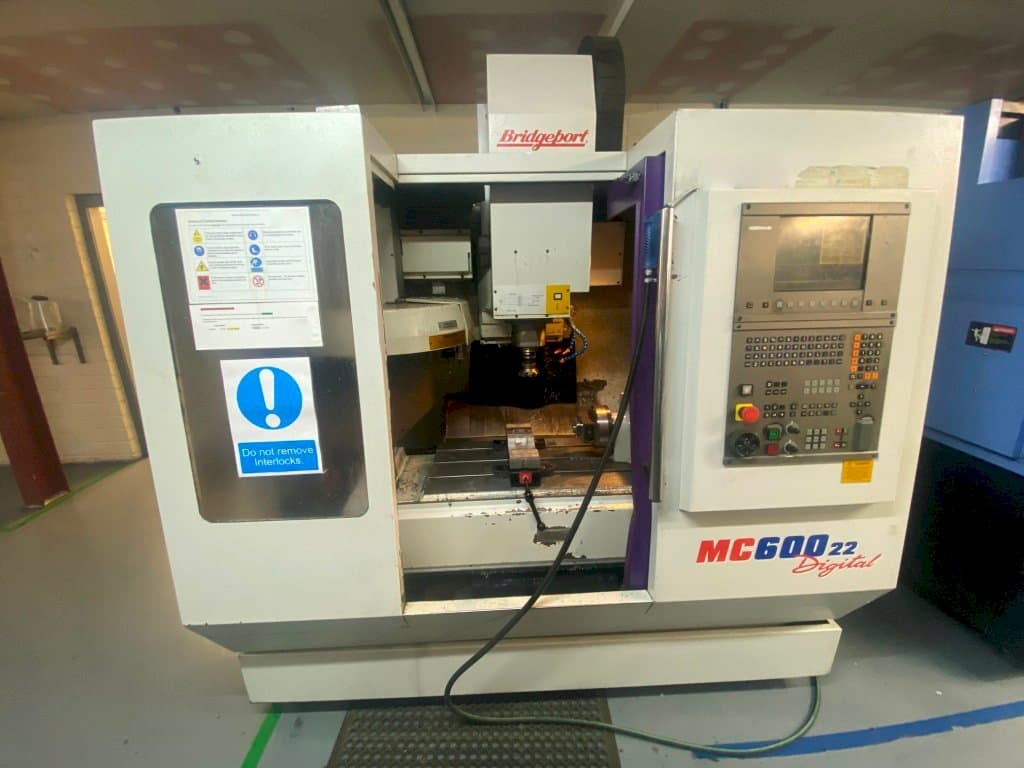

Front view of Bridgeport VMC 600 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Bridgeport VMC 600

Photo Gallery

Bridgeport - VMC 600IE-MIL-BRI-2000-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Bridgeport VMC 600 Vertical machining center

Show in original language

This Bridgeport VMC 600 Vertical machining center was built in the United Kingdom in 2000. It is operated through a Heidenhain TNC410PA control unit. This 4 axis machine works with a spindle speed up to 6000 rpm. It includes PTG Model 125 Speed Indexer (4th Axis). It has been working for medical device industry. Very well maintained machine. In very good condition.

Overview

brand: Bridgeport
year: 2000
MODEL: VMC 600
application type: Milling
Location: Ireland
machine type: Vertical Machining Centre
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - Bridgeport VMC 600

General Data

Measurements width: 2000 mm
Measurements depth: 2050 mm
Measurements height: 2535 mm
Machine weight: 2500 KG

Control Unit

Model: TNC410PA
CNC main language: English
CNC language customizable: Yes
Brand: HEIDENHAIN

Main drive

Number of spindles: 1
Spindle speed range: 6000 1/MIN
Spindle motor power: 10 kW
Number of axis: 4

Movement

X-AXIS Movement: 600 mm
Y-AXIS Movement: 410 mm
Z-AXIS Movement: 520 mm

Table

Outer length: 840 mm
Outer width: 420 mm

Tools

Slots in storage: 22
Max weight: 6 KG
Max tool diameter: 130 mm
Max tool length: 250 mm
Type of tool holder: BT40

Media

Main electronic connection: 3 x 380V / 50Hz

Additional equipment

- PTG Model 125 Speed Indexer - 4th Axis

Additional Information

Machine history

End product: Medical device parts
Industries: Medical device industry

Machine Benefits

Qualitative Machine Benefits:
- - Very well maintained machine
- - Very good condition

Extra information

- Machine vice not included

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
