Thank you for your visit
This machine was recently sold. Take a look at similar options or get in touch with us directly.
Bridgeport - VMC 600XPIE-MIL-BRI-2002-00001
Do you have further questions? Contact us.
Sergi Guardia
+49 162 4027635
s.guardia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- Bridgeport VMC 600XP

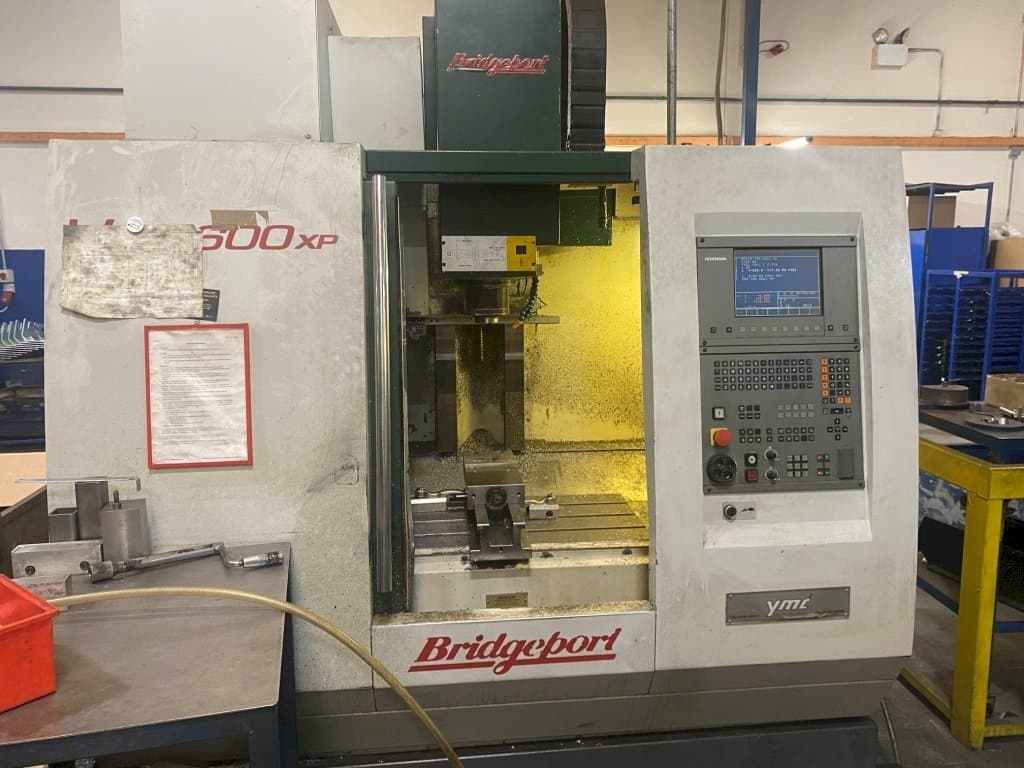

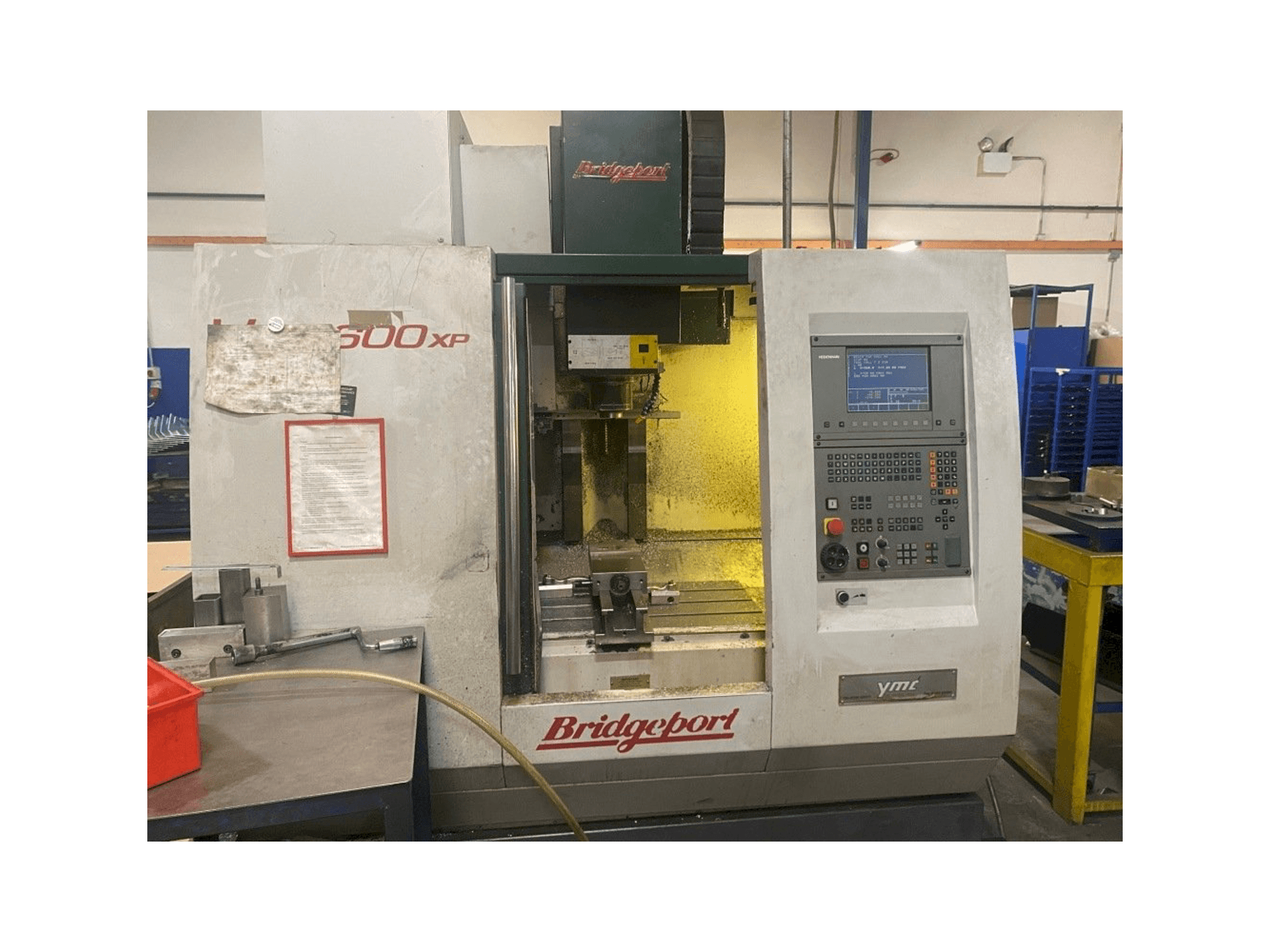

This Bridgeport VMC 600XP Vertical Machining Center was manufactured in 2002 in United Kingdom. It is operated through a HEIDENHAIN TNC426 control unit. This 3 axis machine operates with a spindle speed up to 6000 rpm. It has mainly worked in the manufacturing of subcontract parts.
Overview
- brand: Bridgeport
- year: 2002
- MODEL: VMC 600XP
- application type: Milling
- Location: Ireland
- machine type: Vertical Machining Centre
- control unit brand: HEIDENHAIN
Technical Information - Bridgeport VMC 600XP
Control Unit
- Control Brand: HEIDENHAIN
- Control Model: TNC426
Dimensions
- Machine Depth: 2020 mm
- Machine Height: 2535 mm
- Machine Weight: 2700 kg
- Table Length: 840 mm
- Table Width: 425 mm
Movement
- Number of Axes: 3
- X-axis Travel: 600 mm
- Y-axis Travel: 410 mm
- Z-axis Travel: 520 mm
Technical Specification
- Max. Tool Weight: 6 kg
- Number of Tools: 30
- Spindle Power: 10 kW
- Spindle Speed: 6000 RPM
Additional Information
Additional equipment
- Swarf conveyor
- 5 x Tool Holders
Machine History
Industries
Various industries
End product
Subcontract parts
Material type
Mildsteel
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
