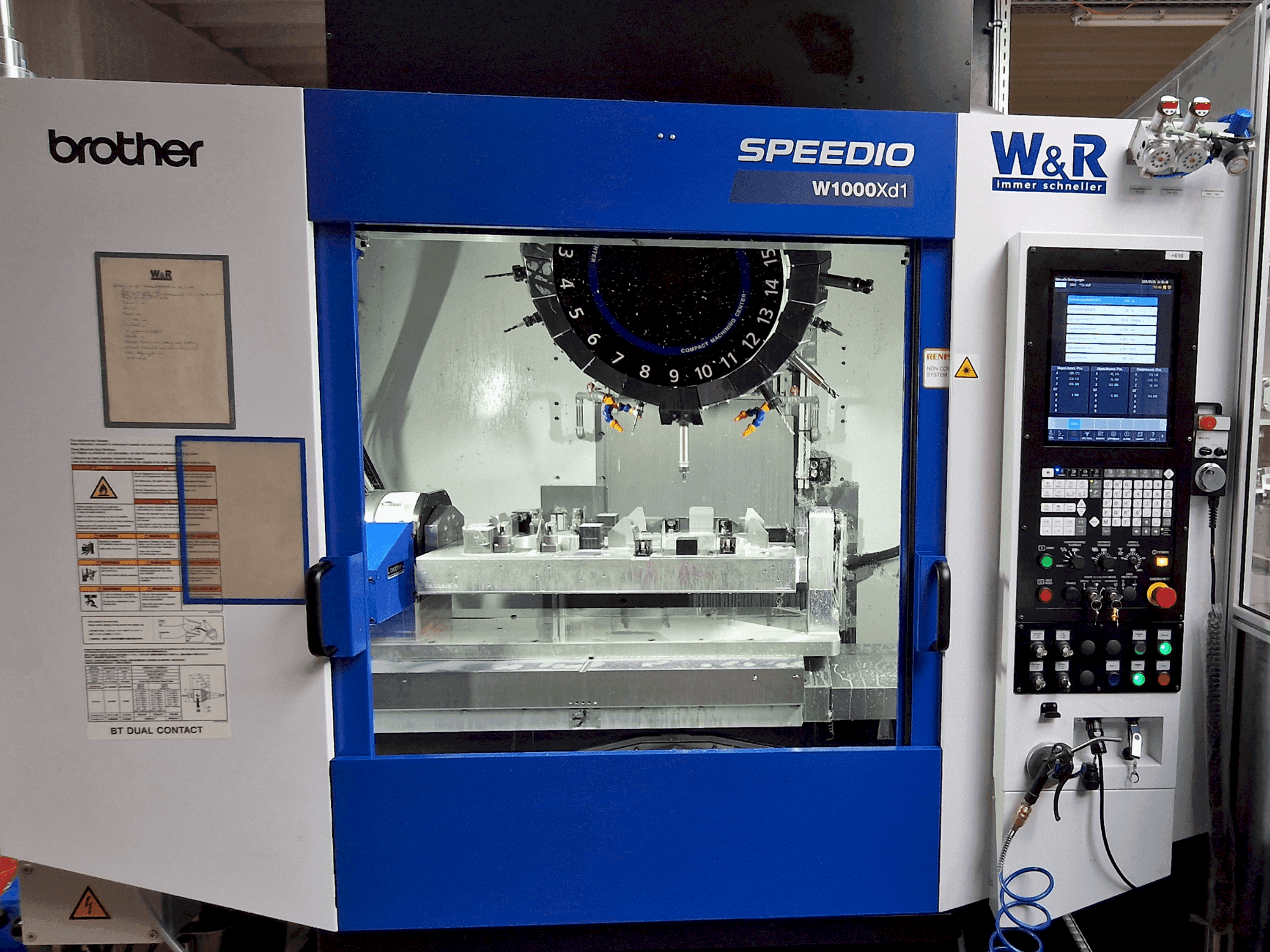

Brother - Speedio W1000Xd1DE-MIL-BRO-2023-00002

Additional equipment

• - Coolant: Through-spindle, 15 bar, Coolant tank 150 L
• - Lubrication: Automatic grease lubrication (X/Y/Z)
• - Hydraulic Workpiece Clamping: Pressure: 80–210 bar (mechanically adjustable)
• - Pump: 210 bar, 100% ED duty
• - Tank: 27 L
• - Emulsion Mist Extraction Unit: Suction Capacity: 700 m³/h
• - Stages: 5-stage filter with V2A pre-filter
• - Includes: PVC hose (2m, Ø200 mm), Flange connection Ø200 mm

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Integrated chip disposal system: "twin" system with hinged and scraper belt conveyors
  • - Automatic side doors: pneumatically driven, opens upwards (for auto-loading)
  • - High-pressure tool cone cleaning
  • - Tool breakage monitoring: tool Ø > 1. 6 mm; thread former > m2. 0
  • - Part support control: based on differential pressure (includes sensors and control unit)
  • - Mounting cone: bbt 30
  • - Materials supported: aluminum, die-cast aluminum, brass, steel
  • - Tool magazine: 21 tools

Extra information

• - Scope of Delivery Includes: 1x wash box with clipboard 1x Fanuc M710 iC 70 incl. control unit 1x safety fence 1x infeed and outfeed conveyor 1x Automatic side door with drip tray 1x Clamping device 1x chip conveyor 1x Rittal switch cabinet 1x Floor troughs Machine History Fourth Axis CNC Rotary Table: Speed: Max. 100 rpm Clamping Force: 280 Nm Load Capacity: 100 kg (200 kg with counter bearing) Weight: 67 kg Hydraulic Unit: Fully wired with electronic monitoring, temperature sensor, and filters Controls: Via M function, manual switch, or key switch Tool Breakage Monitoring: Via laser, Tool Ø > 1.6 mm Automation System (Side Loading): Robot Cell: Free-standing Plate Chain Conveyor: Size 5000 x 1000 mm, Feed Height ~1100 mm 15 Pallets (362x325 mm) Robot: ABB or FANUC, 6-axis Payload: ~30 kg Radius: ~1700 mm Includes: Controller, quick-change gripper system, robot base
