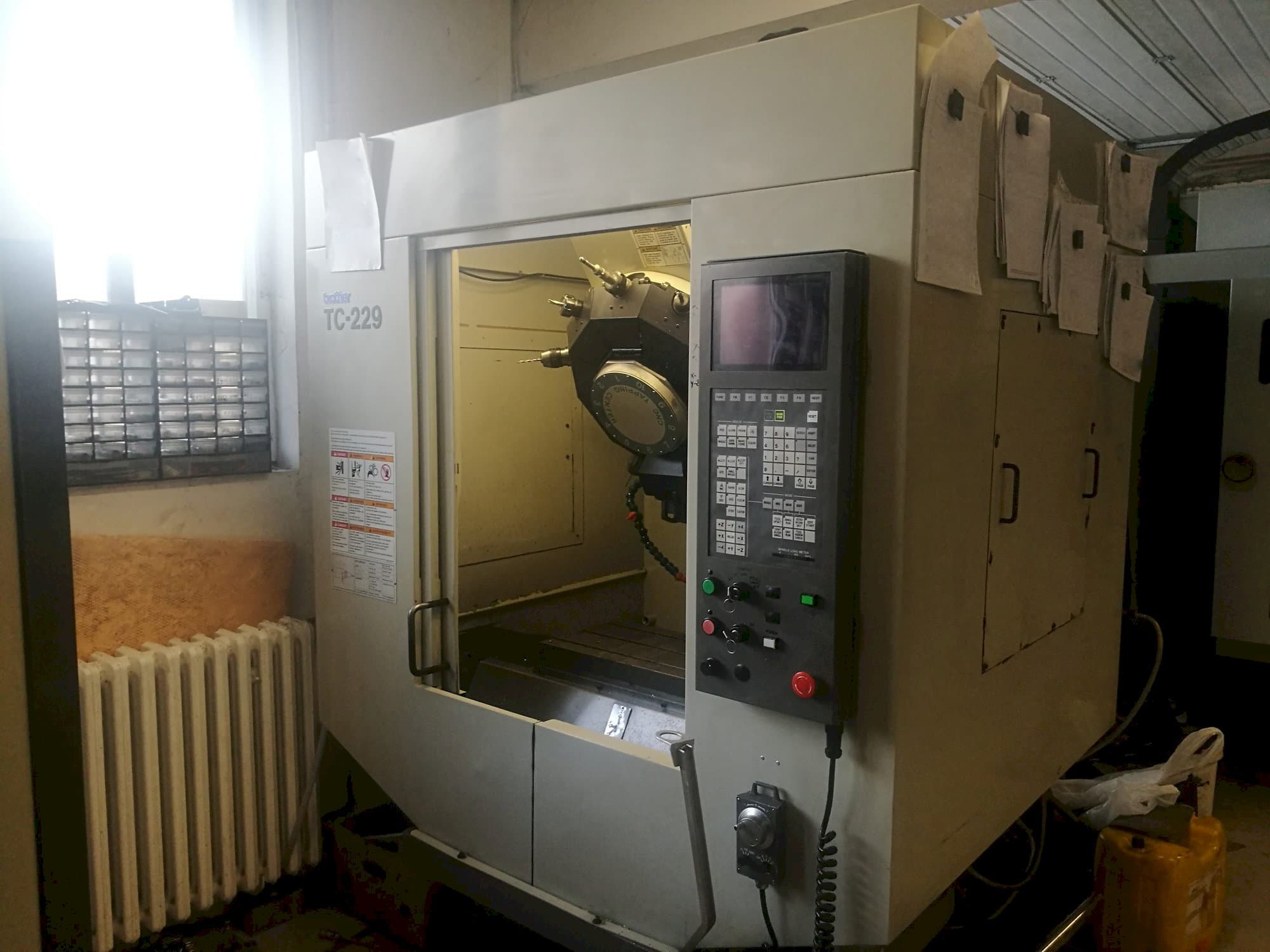

Brother TC 229 Vertical Machining Center

Show in original language

This Brother TC 229 Vertical Machining Center from 1995 was manufactured in Japan and has been working for 8223 hours. Equipped with a Brother CNC 620 Control unit, this 4 axis machine can operate with a spindle speed up to 10000 rpm.

Overview

brand: Brother
year: 1995
MODEL: TC 229
production hours: 8223
application type: Milling
Location: Croatia
machine type: Vertical Machining Centre
availability: Sold
control unit brand: BROTHER

Technical Information - Brother TC 229

General Data

Measurements width: 1800 mm
Measurements depth: 1800 mm
Measurements height: 2200 mm
Machine weight: 1800 kg

Control Unit

Model: CNC 620
CNC main language: English
Brand: BROTHER

Main drive

Number of spindles: 1
Spindle speed range: 10000 1/MIN
Number of axis: 4

Movement

X-AXIS Movement: 480 mm
Y-AXIS Movement: 360 mm
Z-AXIS Movement: 270 mm

Workpiece

Workpiece x: 600 mm
Workpiece y: 300 mm

Table

Outer length: 600 mm
Outer width: 300 mm
Number of tslots: 3
Distance between: 55-100 mm

Tools

Slots in storage: 10
Max weight: 3 kg
Max tool diameter: 80 mm
Max tool length: 200 mm
Type of tool holder: MAS BT30

Media

Main electronic connection: 380 V / 50 Hz
Power consumption: 9 kVA

Additional equipment

- New rotary unit Yamatokoki (upon request)
- 10 toolholders
- handwheel

Additional Information

Machine history

Material type: Aluminium, steel

Machine Benefits

Technical Machine Benefits:
- - Fast machine
- - Taping specialized

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
