Brother TC 32B

Photo Gallery

Brother - TC 32BIT-MIL-BRO-2005-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

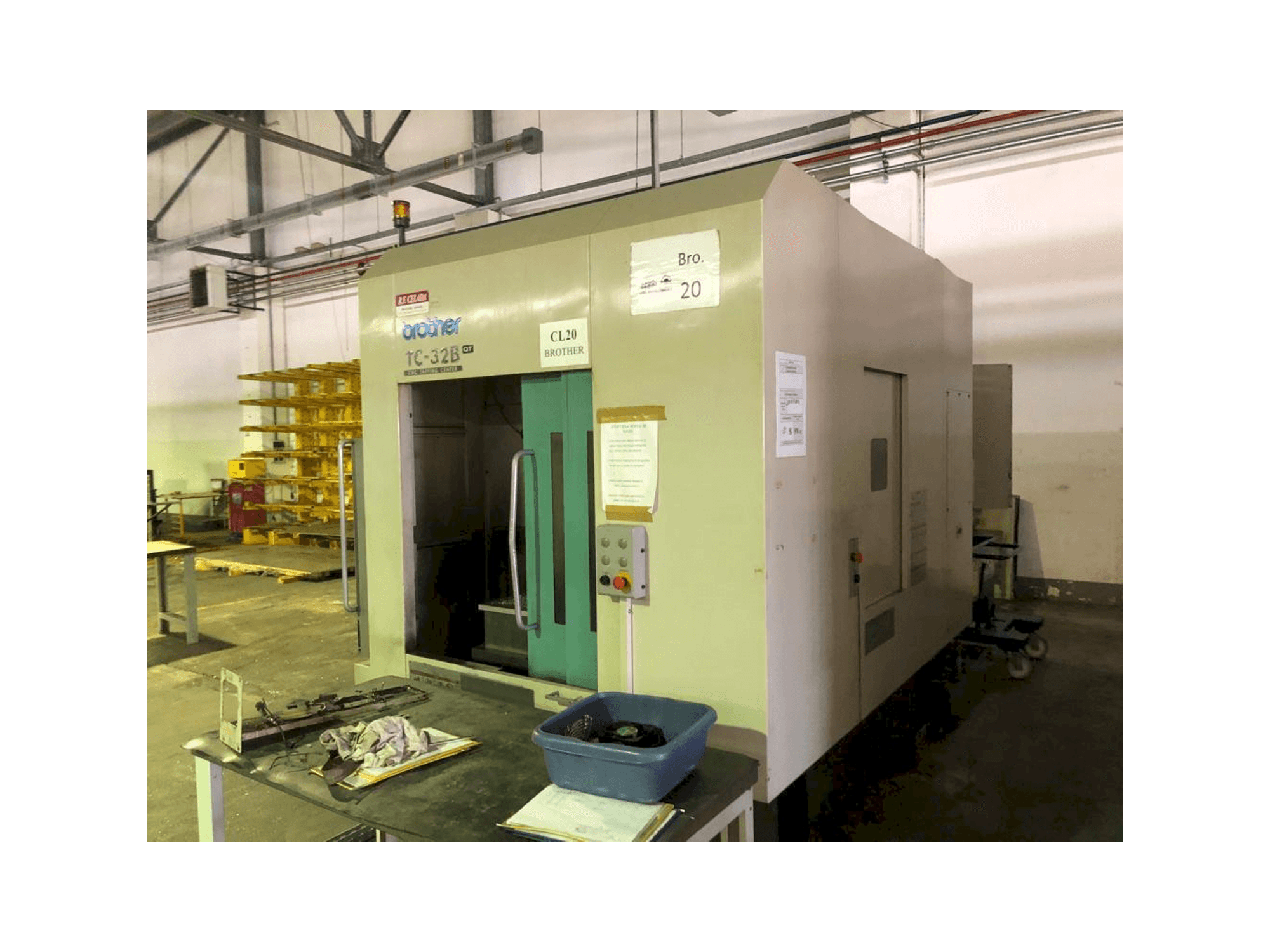

Brother TC 32B Vertical Machining Center

Show in original language

This Brother TC 32B Vertical Machining Center was manufactured in 2005 in Japan. Operated through a control unit of the same brand, this 3 axis machine can work with a spindle up to 12000 rpm. It incorporates tool holders of 26 positions.

Overview

brand: Brother
year: 2005
MODEL: TC 32B
application type: Milling
Location: Italy
machine type: Vertical Machining Centre
availability: Sold
control unit brand: BROTHER

Technical Information - Brother TC 32B

General Data

Measurements width: 1900 mm
Measurements depth: 3700 mm
Measurements height: 2360 mm
Machine weight: 4600 kg

Control Unit

Brand: BROTHER

Main drive

Spindle speed range: 12000 1/MIN
Number of axis: 3

Movement

X-AXIS Movement: 550 mm
Y-AXIS Movement: 400 mm
Z-AXIS Movement: 415 mm

Media

Main electronic connection: 380 V

Additional equipment

- Chip conveyor
- Remote flyer
- Kitagawa rotary plate

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Fast forwards: 70-70-70 m/min
- - Pallets: 2 / 600 x 425
- - Toolholders: random 26 positions

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
