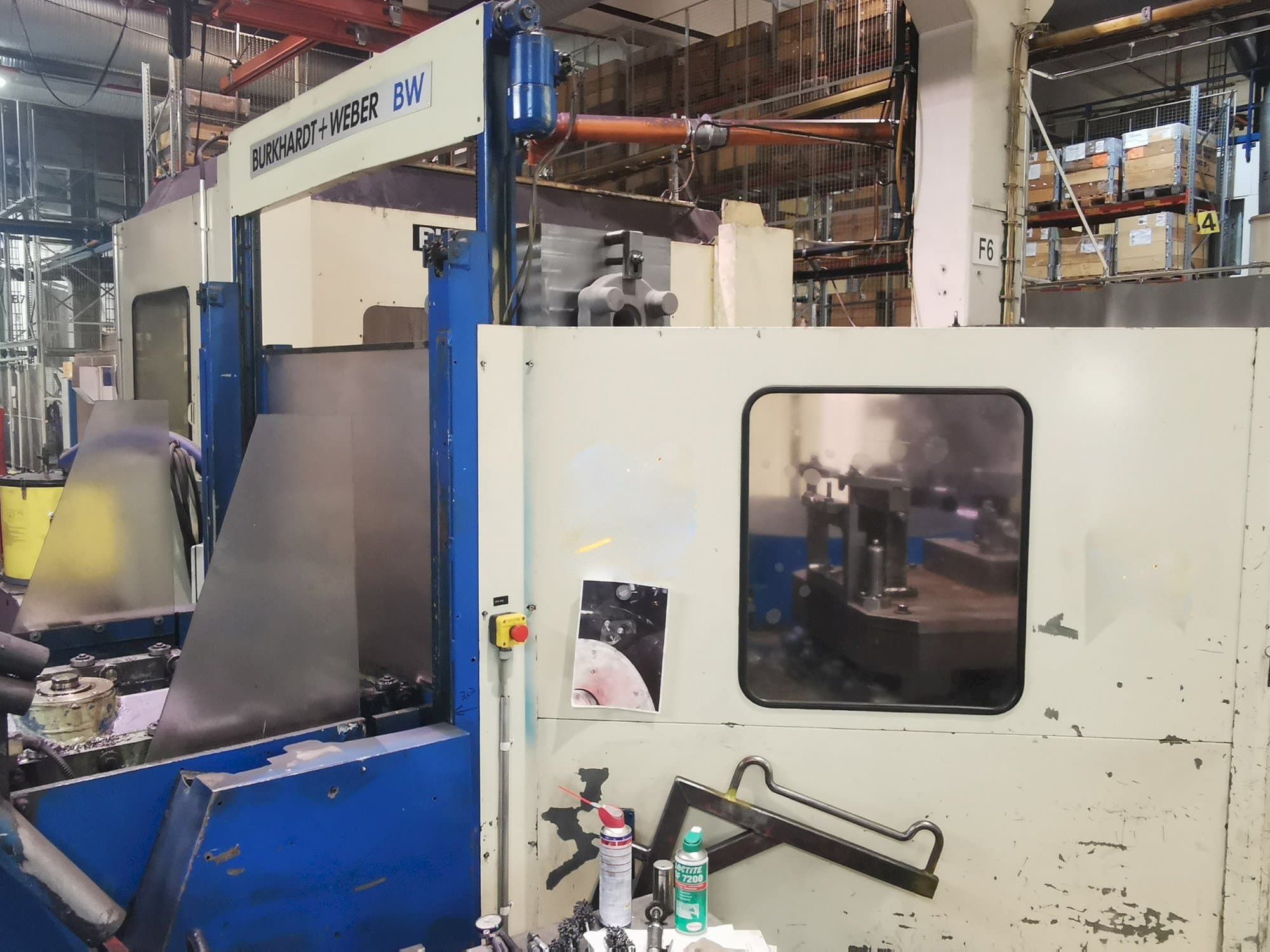

Front view of Burkhardt-Weber MC80 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Burkhardt-Weber MC80

Photo Gallery

Burkhardt-Weber - MC80FI-MIL-BUR-1986-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Burkhardt-Weber MC80 Horizontal machining center

Show in original language

This Burkhardt-Weber MC80 Horizontal machining center was built in Germany in 1986. It is operated through a renewed Siemens 840 C control unit. It works with a spindle speed range 20 - 4000 rpm. The machine comes with pallette changer for 6 pallets, a lift table for pallet changer and a tool measurement unit.

Overview

brand: Burkhardt-Weber
year: 1986
MODEL: MC80
application type: Milling
Location: Finland
machine type: Horizontal Machining Centre
control unit brand: SIEMENS

Technical Information - Burkhardt-Weber MC80

General Data

Measurements width: 6000 mm
Measurements depth: 5400 mm
Measurements height: 3800 mm
Machine weight: 19000 KG

Control Unit

Model: 840 C
CNC language customizable: Yes
Brand: SIEMENS

Main drive

Number of spindles: 1
Spindle speed range: 20 - 4000 1/MIN

Movement

X-AXIS Movement: 1250 mm
Y-AXIS Movement: 800 mm
Z-AXIS Movement: 800 mm

Workpiece

Workpiece drm: 1250 mm
Workpiece x: 800 mm
Workpiece y: 800 mm

Table

Outer length: 800 mm
Outer width: 800 mm

Tools

Slots in storage: 173
Max weight: 30 KG
Max tool length: 500 mm

Media

Main electronic connection: 400V
Chip conveyor: Yes

Additional Information

Additional equipment

Pallette changer for 6 pallets
6 pallets 800 x 800 mm
Lift table for pallet changer
Tool measurement unit

Machine Benefits

Technical Machine Benefits

Very good precision and repeatability
Massive tool changer capacity
Renewed siemens 840 c controller

Machine History

End product

Machining of tractor casing parts

Material type

Steel

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
