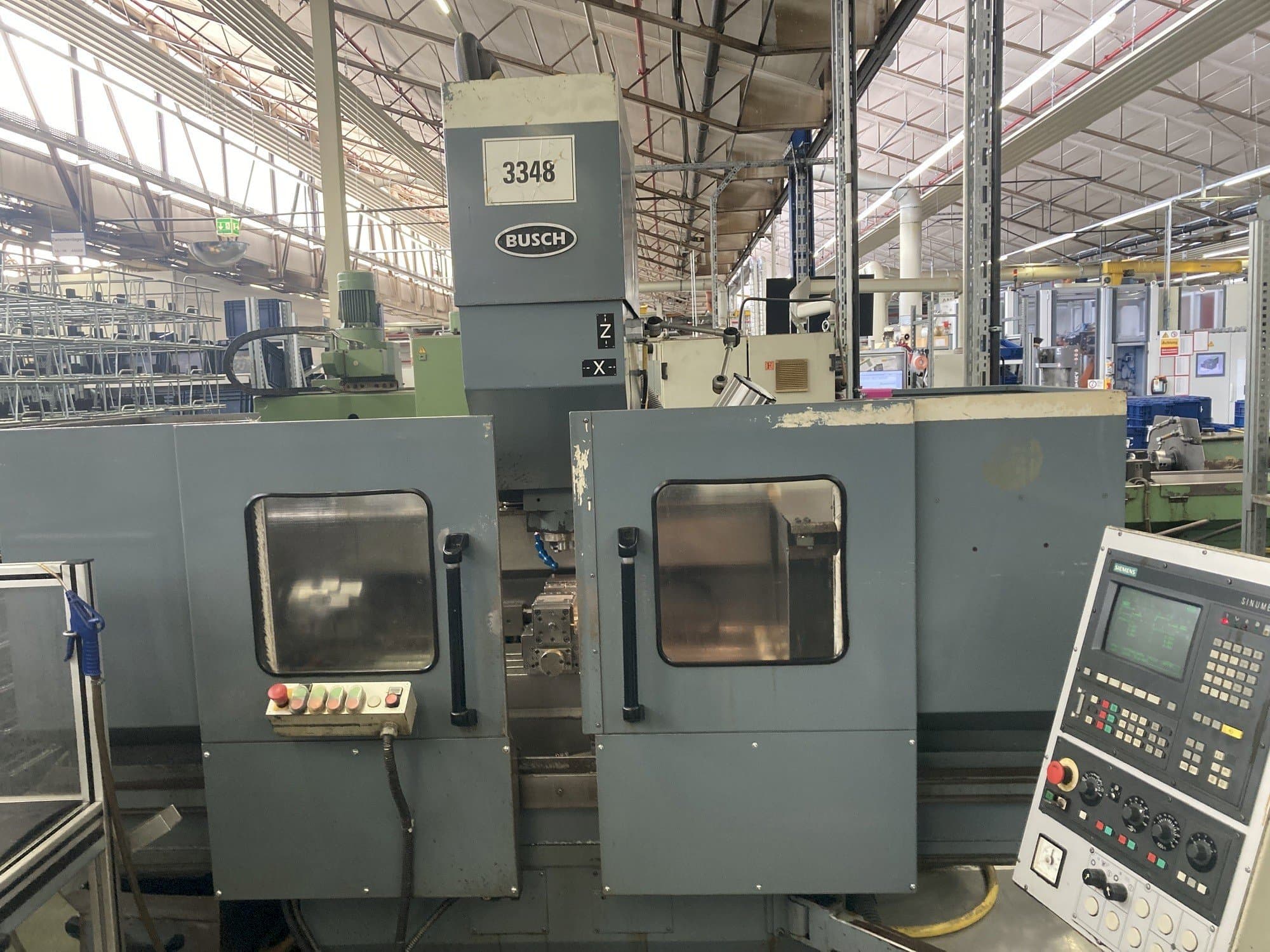

BUSCH - FB 1- 150DE-SHE-BUS-1992-00001

Additional equipment

• - Machine with 2 hydraulic vices
• - 4th axis
• - Tailstock
• - Machine bed with guides for the X-axis and a mounting surface for the table plate 1300 x 300 mm with 3 T-slots
• - PTFE-based sliding linings on hardened steel guide rails
• - Coolant system for external coolant supply on the headstock
• - Large-capacity coolant tank
• - Separate pumps for coolant and flushing agent flow
• - Control cabinet bolted to the rear of the machine
• - Circular tool magazine for 8 tools in the pick-up system

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Cnc dividing head integrated as fourth axis for face and spiral curve milling work
  • - Two automatic clamping devices (vices and centre clamping device via m function)
  • - High rigidity and low vibration due to torsion-resistant and diagonally ribbed welded constructions
  • - High dynamics main drive by three-phase servo motor
• Qualitative Machine Benefits:
  • - Machine bed in rigid, continuously diagonally ribbed welded construction
  • - Indirect position measuring system by means of rotary encoder on the spindle
  • - Headstock with six bearings and high rigidity
  • - Tool clamping by means of collets with disc springs

Extra information

• - Machine still under power
