Thank you for your visit
This machine was recently sold. Take a look at similar options or get in touch with us directly.
Bystronic - BySprint 3015 FiberGB-LAS-BYS-2014-00002
Do you have further questions? Contact us.

Sergi Guardia
+49 162 4027635
s.guardia@gindumac.com

- GINDUMAC
- Products
- Sheet Metal Machinery
- Bystronic BySprint 3015 Fiber Laser Cutting Machine

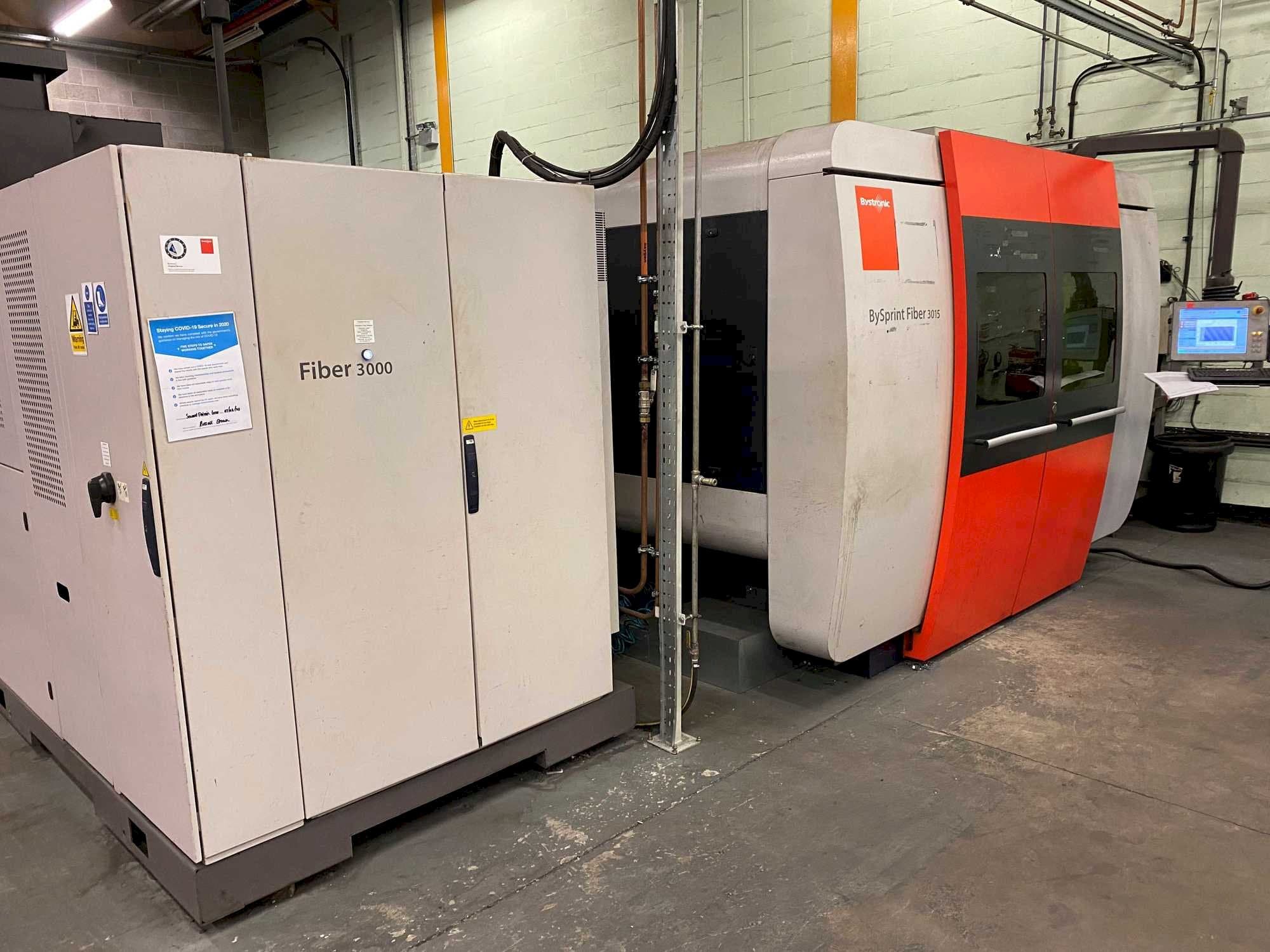

This Bystronic BySprint 3015 Fiber Laser Cutting Machine was made in the year 2014 in Switzerland. This machine has been working for 1526 hours of which 845 are cutting hours. It is equipped with a Bystronic ByVision control unit with 15" touch screen. It works with a laser power of 3 kW. Very good conditions.
Overview
- brand: Bystronic
- year: 2014
- MODEL: BySprint 3015 Fiber
- production hours: 1526
- application type: Cutting
- Location: United Kingdom
- machine type: Fiber Laser Cutting Machine
- control unit brand: BYSTRONIC
Technical Information - Bystronic BySprint 3015 Fiber
General Data
- Machine weight: 12000 kg
Control Unit
- Model: ByVision
- Brand: BYSTRONIC
Main drive
- Laserpower: 3 kw
Movement
- X-AXIS Movement: 3000 mm
- Y-AXIS Movement: 1500 mm
- Z-AXIS Movement: 70 mm
Max Material thickness
- Steel: 20 mm
- Stainless steel: 12 mm
- Aluminum: 12 mm
Media
- Power consumption: 21.4kW
Additional Information
- Technical Machine Benefits:
- - Automatic shuttle tables with light guard protection
- - Bytrans extended
- - Byvision with 15" touch screen
- - Dust collector
- - Water chiller
- - Max. Thickness: brass 6 m , copper 6 mm
- Qualitative Machine Benefits:
- - Very good condition
- - Fibre 3000w with all new modules power on 1526 cutting 845
- - Full service history
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
