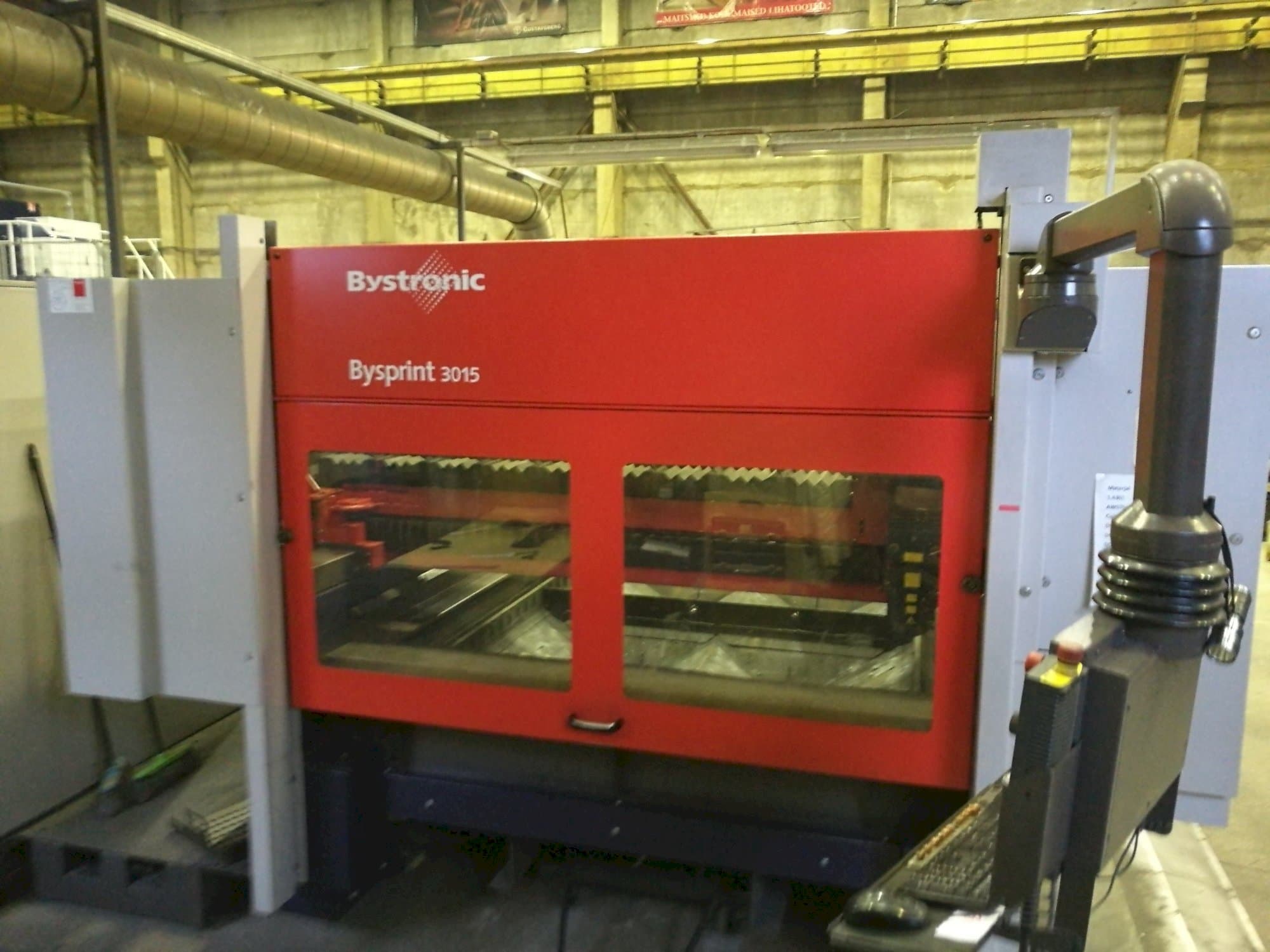

Front view of Bystronic Bysprint 3015 machine
Front view of Bystronic Bysprint 3015 machine

Thank you for your visit

This machine was recently sold.

Browse similar machines

Bystronic - Bysprint 3015EE-LAS-BYS-2005-00001

Sold

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This Bystronic Bysprint 3015 Laser Cutting Machine was built in 2005 in Switzerland and has been operative for 17050 cutting hours. Operated through a Bystronic IMS 2203 B Control unit, this machine incorporates a Bystronic Bylaser of 2200 W. During the past, it has worked with diverse materials including steel, stainless steel, and aluminium. A loading table is included within the machine, whereas the gas unit is included upon request.

Overview

  • brand: Bystronic
  • year: 2005
  • MODEL: Bysprint 3015
  • production hours: 17050
  • application type: Cutting
  • Location: Estonia
  • machine type: CO2 Laser Cutting Machine
  • control unit brand: BYSTRONIC

Technical Information - Bystronic Bysprint 3015

General Data

  • Measurements width: 4200 mm
  • Measurements depth: 10052 mm
  • Measurements height: 2281 mm
  • Machine weight: 10000 kg

Control Unit

  • Model: IMs 2203 B
  • CNC main language: English
  • CNC language customizable: Yes
  • Brand: BYSTRONIC

Main drive

  • Laserpower: 2200 W KW
  • Laser brand: Bystronic Bylaser 2200

Movement

  • X-AXIS Movement: 2000 mm
  • Y-AXIS Movement: 1200 mm

Workpiece

  • Workpiece drm: 3000 mm
  • Workpiece x: 1500 mm

Max Material thickness

  • Steel: 15 mm
  • Stainless steel: 8 mm
  • Aluminum: 4 mm

Media

  • Main electronic connection: 3x400 V / 50 Hz

    Additional equipment

    • - loading table
    • - gas unit (upon request)

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
