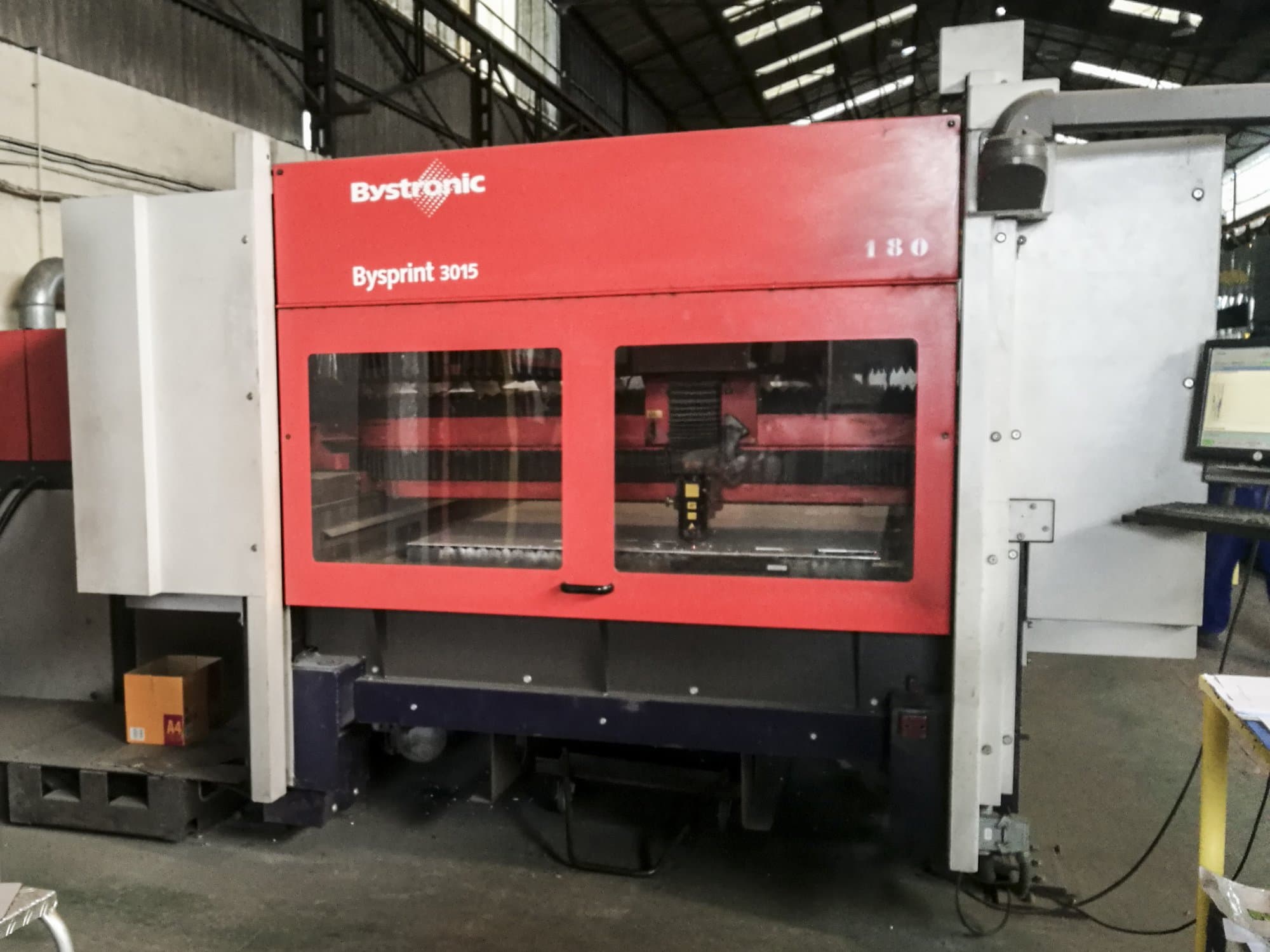

Front view of Bystronic BySprint 3015 Machine
Front view of Bystronic BySprint 3015 Machine

Thank you for your visit

This machine was recently sold.

Browse similar machines

Bystronic - BySprint 3015ES-LAS-BYS-2006-00002

Sold

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This Bystronic BySprint 3015 Laser Cutting Machine was manufactured in 2006 in Switzerland and has a working record of 30496 production hours of which the laser was switched on for 20211 hours. Operated through a ByVision P8008B Control unit, this 3 kW laser cutter comes in good conditions due to regular Bystronic maintenance.

Overview

  • brand: Bystronic
  • year: 2006
  • MODEL: BySprint 3015
  • production hours: 30496
  • application type: Cutting
  • Location: Spain
  • machine type: CO2 Laser Cutting Machine
  • control unit brand: BYSTRONIC

Technical Information - Bystronic BySprint 3015

General Data

  • Measurements width: 12900 mm
  • Measurements depth: 7000 mm
  • Measurements height: 2920 mm
  • Machine weight: 12000 kg

Control Unit

  • Model: P8008B
  • Brand: BYSTRONIC

Main drive

  • Laserpower: 3 kW
  • Laser type: CO2

Movement

  • X-AXIS Movement: 3000 mm
  • X-AXIS Working Feed: 50 m/min
  • Y-AXIS Movement: 1500 mm
  • Y-AXIS Working Feed: 50 m/min
  • Z-AXIS Movement: 70 mm

Workpiece

  • Workpiece x: 3000 mm
  • Workpiece y: 1500 mm
  • Workpiece z: 70 mm
  • Workpiece weight: 750 kg

Max Material thickness

  • Steel: 20 mm
  • Stainless steel: 12 mm
  • Aluminum: 8 mm

Machine specific data

  • Number of cutting heads: 2
  • Size of cutting head 1: 5"
  • Size of cutting head 2: 7.5"

Media

  • Main electronic connection: 400 V / 50 Hz
  • Power consumption: 45 kVA

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

Your account manager:

Sergi Guardia

Sergi Guardia is one of our used machinery trading experts and will be your direct contact for any further questions on the machine. Feel free to contact him/her.

get in contact

Payment Terms

  • Payment in advance

  • Asset Financing
