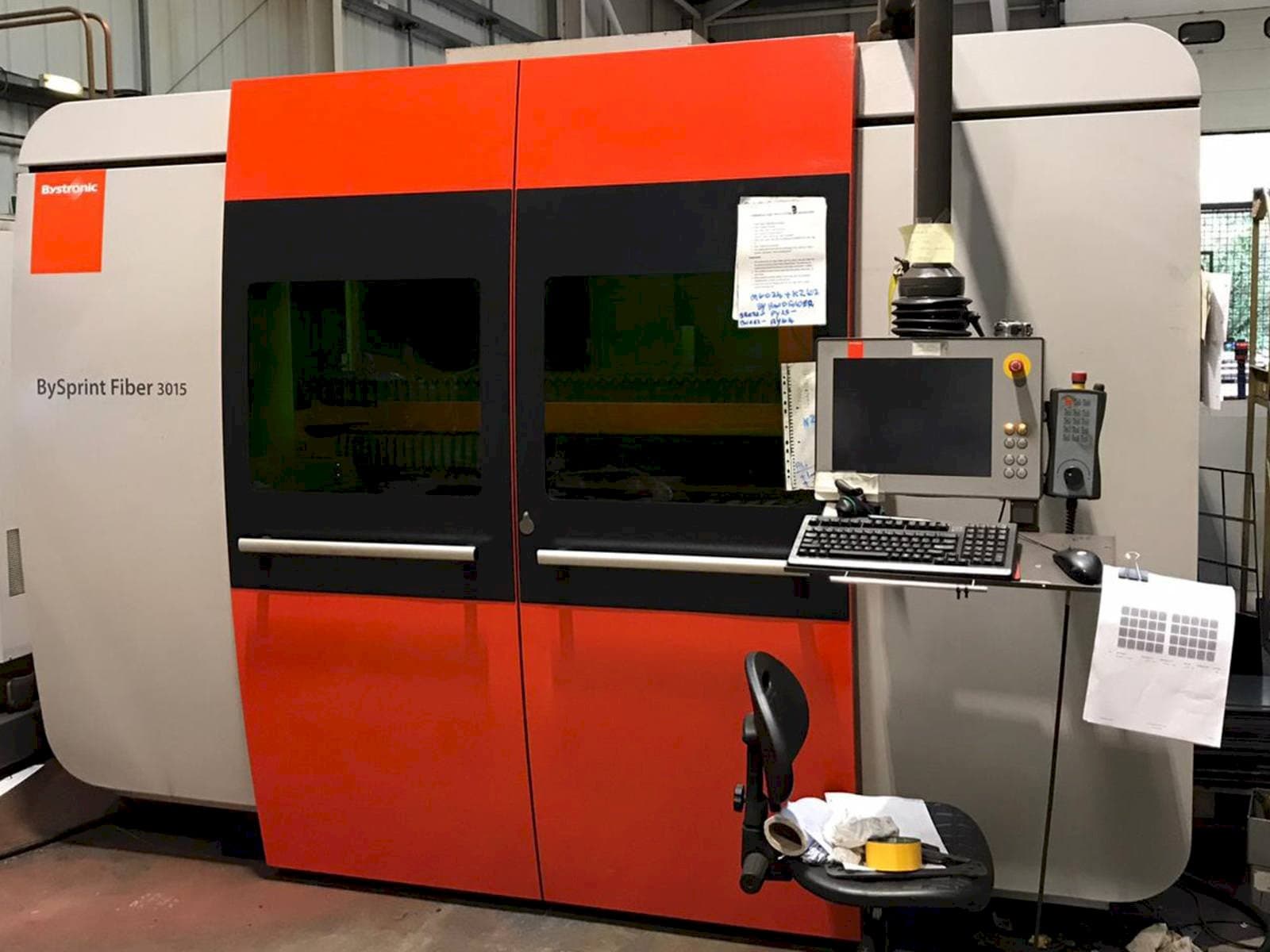

Front view of Bystronic BySprint Fiber 3015 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Bystronic BySprint Fiber 3015

Photo Gallery

Bystronic - BySprint Fiber 3015GB-LAS-BYS-2015-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Sheet Metal Machinery
Brystronic BySprint Fiber 3015

Show in original language

This Bystronic BySprint Fiber 3015 laser cutting machine was manufactured in 2015. The machine has a total of 10195 production hours. It is operated through a Bystronic ByVision control unit. It has a laser power of 4 kW.

Overview

brand: Bystronic
year: 2015
MODEL: BySprint Fiber 3015
production hours: 10195
application type: Cutting
Location: United Kingdom
machine type: Fiber Laser Cutting Machine
control unit brand: BYSTRONIC

Technical Information - Bystronic BySprint Fiber 3015

General Data

Machine weight: 13000 kg

Control Unit

Model: ByVision
CNC main language: English
Brand: BYSTRONIC

Main drive

Laserpower: 4 kW

Movement

X-AXIS Movement: 3048 x 1524 x 70 mm

Workpiece

Workpiece drm over bed: 3000 x 1500 mm
Workpiece weight: 890 kg

Max Material thickness

Steel: 20 mm

Media

Power consumption: 26 kW

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Bytrans transporting system
- - Max. Positioning speed axially parallel x, y: 100 m / min max. Simultaneous positioning speed: 140 m / min position deviation: +/- 0. 1 mm position spread: +/- 0. 05 mm"
- - Electrical consumption of the entire system: 26 kw
- - Laser source: type: fiber 4000 power: 4,000 watts control range: 400 - 4000 watts"
- - Max. Sheet thickness: steel 20 mm stainless steel 15 mm, aluminum 15 mm brass 8 mm copper 8 mm"

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
